WIDE MX20N 2MP Diagnostic Monochrome Display

  • 14-bit Look-Up Table
  • Embedded IQ Sensor®
  • PrivateLite®
  • DisplayPort & DVI

Description

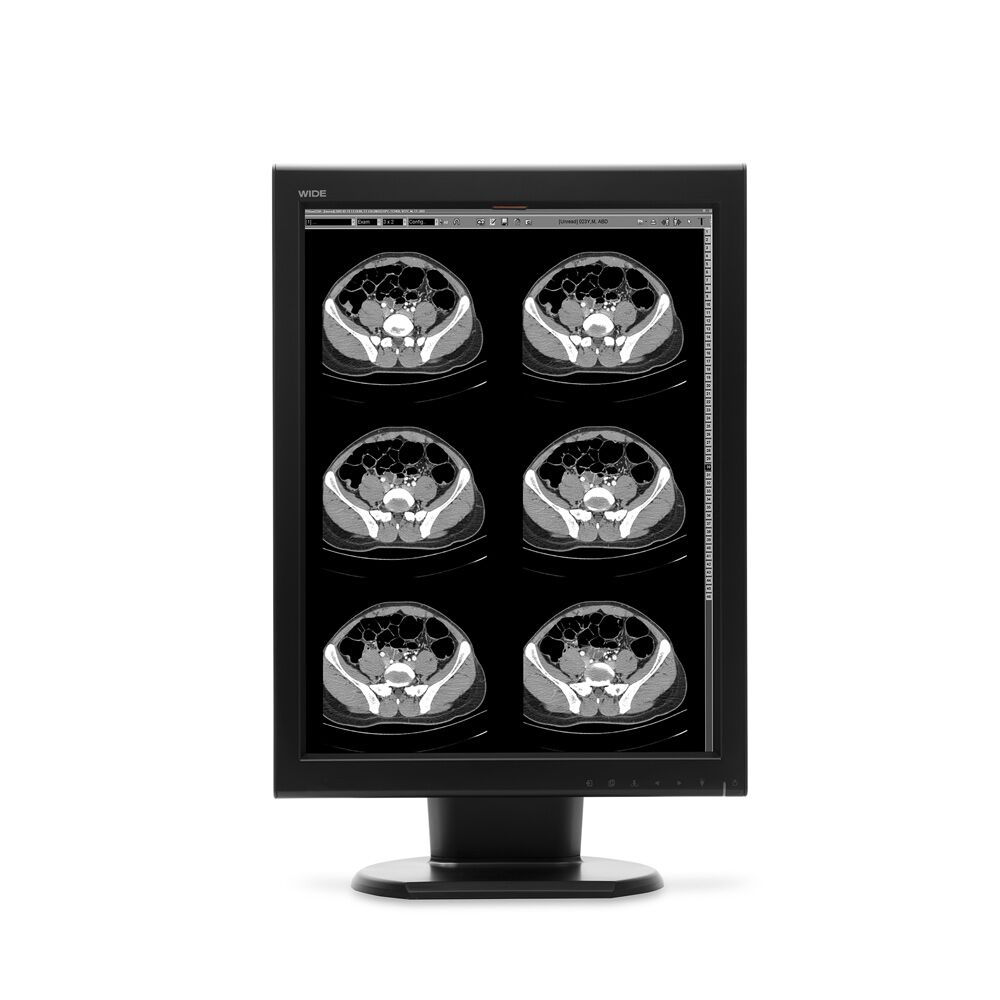

WIDE MX20N 2MP Diagnostic Monochrome Display

The WIDE MX20N 2MP Diagnostic Monochrome Display is engineered for precision and clarity, making it an essential tool for medical professionals and technicians. With its high-resolution 2MP display, it ensures accurate image rendering for diagnostic purposes, enhancing the ability to detect subtle details in medical imaging. The monochrome design provides superior contrast and sharpness, ideal for viewing X-rays and other grayscale images. Its ergonomic design and user-friendly interface facilitate seamless integration into any clinical environment, promoting efficiency and productivity in diagnostic workflows. Upgrade your imaging capabilities with the WIDE MX20N and experience unparalleled performance in medical diagnostics.

Specifications

Model MX20N
LCD Panel TFT AMLCD IPS Grayscale
Native Resolution 1200(H) x 1600(V)
Pixel Pitch 0.270mm x 0.270mm
Active Display Area 432.0mm x 324.0mm (17.0”x12.8”)
Active Screen Size (Diagonal) 540.0mm (21.3”)
Viewing Angle (Typ) 178°,178° at 10:1 Contrast Ratio
Brightness Max. (Typ) 1900cd/m²
Brightness Calibrated (Typ) 500cd/m²
Contrast Ratio (Typ) 1800:1
Bit Rate for Look-Up Table 14-bit
Digital Video Input DVI-D, DisplayPort
Display Communication DDC2B (VESA Standard Compliance)
Universal Serial Bus (USB) 1 up and 3 down-streams
Power Supply AC Input 100-240Volt±10%/60Hz/50Hz±3Hz | DC Output +24V
Built-in Sensors IQ Sensor III®, SBC¹, DAC²
Luminance Uniformity Control (LUC) Yes
Display Adjusstments Menu, Enter, Down, Up, Lamp, Power
OSD Languages English, German, French, Spanish, Italian, Russian, Japanese, Chinese, Korean
LED Light (PrivateLite®) Yes
Power Consumption Max: 55W, Power Save: 2W
Tilt/Swivel/Height Adjustments -3°,+15°/±20°/110mm
Portrait/Landscape Rotation 90° (Counter clockwise)
Mounting Hole VESA Standard (100mm x 100mm)
Weight 8.6Kg (18.90lb) with Stand
Dimension 366.0mm (W) x 518.8mm (H) x 248.8mm (D)
Operational Temperature 0ºC to 40ºC (32ºF to 104ºF)
Operational Humidity 8% to 80%
Storage Temperature -20ºC to 60ºC (-4ºF to 140ºF)
Certifications and Standards CE
Screen Protection Protective Glass

Additional information

Manufacturer

WIDE

Model

MX20N
