• SXGA 1280 x 1024 resolution
• NeoV™ Optical Glass
• Durable metal casing
• Swift 3 ms response time
• High 3000:1 dynamic contrast ratio
• S-Video, composite, analogue, digital inputs
• Illuminator mode for easy X-ray film viewing
• DC 24V medical grade power adaptor allows longer distance connection
• IEC60601-1 medical certification
• Equipotential Terminal safety standard
• Optional handle allows for easy movement of display
• Auto-adjustment for optimal settings
• Kensington® security socket
• VESA standard mount

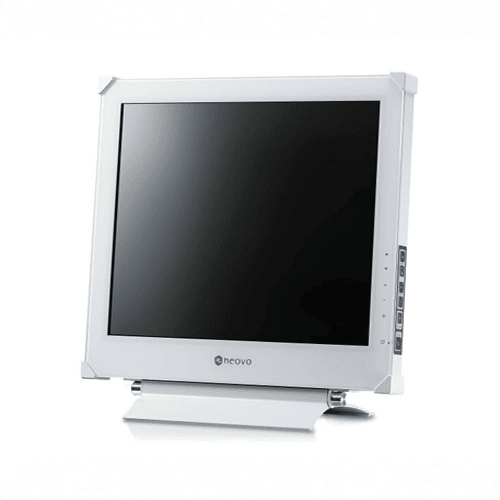

AG Neovo DR-17E (DR17E) 17″ Medical Display
PRICE REQUEST
Description
AG Neovo DR-17E (DR17E) Medical Display
The AG Neovo DR-17E (DR17E) is a durable, high resolution 1280 x 1024, 17″ display featuring the specified DC 24 V medical power supply essential for dental applications. A sturdy metal casing and VESA compliant design allows the DR-17E for a variety of mounting possibilities. The protection of NeoV™ Optical Glass and the flexibility of analogue, DVI, S-Video and CVBS inputs make the AG Neovo DR-17 (DR17P) perfect for patient education in dental environments.
About AG Neovo
AG Neovo is a world-leading provider of display devices for both professional and consumer markets. The company, founded in 1999, is headquartered in Taipei, Taiwan and has offices throughout Europe, Asia and North America. Deriving its name from the Greek words Neo and Vo meaning New Vision, AG Neovo was one of the first in the industry to envision greater possibilities for display devices.
Panel
- Panel Type - LED-Backlit TFT LCD
- Panel Size - 17.0” (432 mm)
- Max. Resolution - SXGA 1280 x 1024
- Pixel Pitch - 0.264 mm
- Brightness - 250 cd/m2 (Typical)
- Contrast Ratio - 1000:1 (Typical)
- Viewing Angle (H/V) - 170°/160° (Typical)
- Display Colour - 16.7M
- Response Time (GTG) - 3 ms (GTG)
- H.Freq - H: 24 kHz - 82 kHz
- V.Freq - V: 50 Hz - 85 Hz
- Analogue - 15-Pin D-Sub
- Digital - 24-Pin DVI-D
- S-Video - 4-Pin Mini DIN
- CVBS - RCA
- Audio In - 1 x stereo audio in for PC (audio jack, 3.5 Ø) 1 x stereo audio in for CVBS or S-Video (RCA)
- Speaker - 1.5W x 2
- Power Supply - External
- Power Requirements - DC 24V
- Consumption - < 19 W (On), < 1 W (Stand-by), < 1 W (Off)
- Thickness - 3.0 mm (0.12”)
- Reflection Rate - < 1%
- Transmission Rate - > 96%
- Coating Hardness - > 9H
- VESA - DCC 2B, DDC/CI
- Temperature - 0 °C ~ 40 °C
- Humidity - 10% ~ 90%
- Temperature - -20 °C ~ 60 °C
- Humidity - 5% ~ 95%
- VESA FPMPMI - Yes (100 x 100mm & 75 x 75mm)
- Tilt - 0° ~ +20°
- Product (W x H x D) - 409 x 398 x 175 mm (16.1” x 15.7” x 6.9”)
- Packaging (W x H x D) - 486 x 497 x 228 mm (19.1” x 19.6” x 9.0”)
- Product Weight - w/ Base 6.1 kg (13.4 lbs) w/o Base 5.3 kg (11.7 lbs)
- Packaged Product Weight - 7.9 kg (17.4 lbs)
- Certifications & Compliance - FCC, CE, WEEE, RoHS, REACH, EN60601-1, IEC60601-1, C-tick, GOST-R, BSMI
- Supplied - CD ROM (user manual), 15-Pin D-Sub cable, S-Video cable, power cord, power adaptor 5 m, audio cable
- Optional - Display handle (HDL-01), X-ray film positioner
