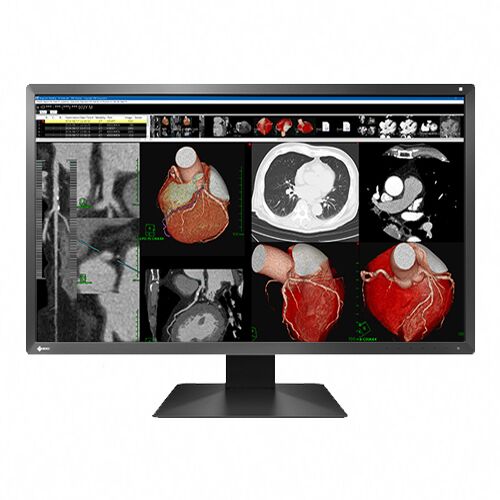

Eizo MX317W 8MP Clinical Review LCD Display

Eizo Radiforce MX317W is a 30.5-inch 8 megapixel resolution medical monitor with DICOM® Part 14 calibration for reviewing diagnostic imaging such as chest X-ray, CT, or endoscopy accurately.



Eizo MX317W 8MP Clinical Review LCD Display

Eizo MX317W is a 30.5-inch 8 megapixel resolution medical monitor with DICOM® Part 14 calibration for reviewing diagnostic imaging such as chest X-ray, CT, or endoscopy accurately.

Enhanced Workflow with 8MP Resolution

The Eixo MX317W 30.5-inch large widescreen can display 8 megapixels of information. In medical settings where multiple applications and windows are often displayed simultaneously, this allows for free layout on a single screen.

Hybrid Display of Monochrome and Color

The Hybrid Gamma PXL function automatically distinguishes between monochrome and color images pixel by pixel, creating a hybrid display where each pixel has optimum grayscale. As a result, monochrome images such as CT, MRI, and X-ray are displayed in the ideal grayscale that corresponds to DICOM Part 14, while color images such as 3D rendering, nuclear medicine, ultrasound, and endoscopy are faithfully reproduced corresponding to Gamma 2.2. This helps improve the efficiency of viewing both monochrome and color images by displaying them together on one screen.

Achieve Clarity True to the Source Data

A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO’s unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored. This allows you to display an image safely on the monitor that is true to the original source data, even at high brightness levels.

MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2-pixel line pair (spatial frequency of 1.497 cycles/mm) the MTF increases by over 50%.

Make the Precise Diagnosis

EIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14. This ensures the most consistent shading possible, allowing for the most accurate diagnosis.

Select the Ideal Mode for Modalities

The Manual Mode Switch function allows you to choose various modes for different modalities such as CR, CT, endoscopy, and pathology. Using the bundled RadiCS LE software, modes can be set to automatically switch to optimal image viewing conditions.

Preset Mode for Digital Pathology

The Eizo MX317W is the first in the RadiForce line to include a dedicated mode for pathology. This provides custom settings for viewing microscopic cell and tissue structures on the monitor in high detail.

This product has not received FDA 510 (k) clearance for Digital Pathology Display.

Rest Assured with Image Consistency

Elegant Curved Design

The monitor’s cabinet is designed with rounded corners and elegant curves on the back to present a gentle aesthetic and facilitate a comforting environment for patients and medical staff.

Maintain Image Quality Over Time

A monitor’s color and brightness characteristics naturally shift with use over time. Since this occurs gradually, it can be difficult to detect when this happens. Implementing a quality control solution ensures that your monitor’s display characteristics stay consistent.

With the Integrated Front Sensor (IFS) built into the front bezel of the RadiForce MX317W monitor and RadiCS LE software (included), you can easily calibrate to DICOM Part 14 without having to mount, run, and remove an external sensor.

Simple calibration using the monitor backlight sensor is also supported.

Eizo MX317W Streamlined Connection with USB Type-C

The Eizo MX317W features a USB Type-C® connectivity that allows you to display video, transmit USB signals, supply power to connected mobile workstations, and even transmit a network signal.  Furthermore, a multi-screen setup can easily be established with a simple daisy chain connection. This convenient multi-purpose connectivity makes it faster and easier to connect your mobile workstation when working remotely or at home.

Mobile Workstation Power Delivery

The 94-watt power delivery via USB Type-C reliably charges mobile workstations. This eliminates the need for a mobile workstation’s bulky power supply unit, freeing up space in your bag and on the desk.

Stable Wired Network Connection

The Eizo MX317W monitor has LAN port directly built-in for a stable wired connection. Connecting mobile workstations via USB Type-C allows access to the network through the monitor, making it useful when security policies require a wired connection.

Directly Connect Peripherals

While many modern mobile workstations are designed to be thinner and more portable, they often have limited connectivity options for peripherals. Connecting a mobile workstation to the monitor via USB Type-C gives access to a hub with three USB Type-A and one USB Type-C port for easily connecting an external keyboard, mouse, or headset.

The USB Type-C port cannot be used as a USB external device connection when used for a daisy-chain connection.

Hassle-Free Multi-Monitor Setup

The Eizo MX317W’s USB Type-C connection supports daisy chaining for easily connecting multiple monitors from a single USB Type-C video signal output of mobile workstations. This allows you to configure a multi-monitor setup without hassle of excess cabling.

A multi-monitor configuration lets you display multiple screens simultaneously, such as reports, examination lists, and patient charts. This reduces the need to switch windows frequently or scroll compared to the small

Scan the QR code using your smartphone or tablet
to see how EIZO fits into your environment with augmented reality.

Supported Models:
iPhone 6s or later, iPad (5th generation or later)
ARCore supported Android devices
Supported Browsers:
Safari, Chrome

Stay Confident with Stable Brightness

EIZO’s confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.

Warranty with Safety and Trust

EIZO and its authorized distributors offer a five-year limited warranty.

About Eizo

EIZO, which means image in Japanese, is a visual technology company that develops and manufactures high-end display solutions. EIZO integrates hardware and software technologies with consulting, web hosting, and other services to help customers in business, graphics, gaming, medicine, maritime, air traffic control, and other fields work more comfortably, efficiently, and creatively. Headquartered in Hakusan, Japan, EIZO has R&D and manufacturing facilities in Japan, China, Germany, and the U.S., and representation in more than 80 countries.


Warning: call_user_func() expects parameter 1 to be a valid callback, function 'download_file_force' not found or invalid function name in /home/hiliex.com/public_html/wp-content/plugins/woocommerce/templates/single-product/tabs/tabs.php on line 47


Model Variations MX317W-BK: with stand, black
Type Color (IPS)
Backlight LED
Size 30.5″ (77.5 cm)
Native Resolution 4096 x 2160 (17:9 aspect ratio)
Viewable Image Size (H x V) 685.7 x 361.6 mm
Pixel Pitch (H x V) 0.1674 x 0.1674 mm
Display Colors 10-bit (DisplayPort): 1.07 billion from a palette of 543 billion (13-bit) colors
8-bit: 16.77 million from a palette of 543 billion (13-bit) colors
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 550 cd/m2
Recommended Brightness for Calibration 270 cd/m2
Contrast Ratio (typical) 1800:1
Response Time (typical) 25 ms (black-white-black)
Video Signals
Input Terminals USB Type-C (DisplayPort Alt Mode), DisplayPort x 2, HDMI
Output Terminals USB Type-C (daisy chain)
Digital Scanning Frequency (H / V) USB Type-C: 31 – 134 kHz / 59 – 61 Hz
DisplayPort: 31 – 134 kHz / 59 – 61 Hz
HDMI: 31 – 136 kHz / 59 – 61 Hz
Upstream USB 2.0: Type-B x 2,
USB 2.0: Type-C (DisplayPort Alt Mode, Power Delivery Source 94 W max.)
Downstream USB 2.0: Type-A x 3
USB 2.0: Type-C (DisplayPort Alt Mode, Power Delivery Source 15 W max.)
USB LAN Adapter RJ-45 (1000BASE-T)
Power Input AC 100 – 240 V: 50 / 60 Hz
Typical Power Consumption 62 W
Maximum Power Consumption 260 W
Power Save Mode 0.5 W or less
Sensor Backlight Sensor, Integrated Front Sensor, Ambient Light Sensor
Features & Functions
Brightness Stabilization Yes
Digital Uniformity Equalizer Yes
Hybrid Gamma PXL Yes
Work-and-Flow Hide-and-Seek, Switch-and-Go, Point-and-Focus
Preset Modes CAL Switch (DICOM, CAL, Patho, Custom, sRGB, Text)
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight 12.4 kg
Net Weight (Without Stand) 8.2 kg
Hole Spacing (VESA Standard) 100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.) CB, CE / UKCA (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC/EN60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC
FDA Pending: 510(k) Clearance for General Radiography
Dedicated Software
Monitor Quality Control Software RadiCS Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables USB Type-C (1.5 m), DisplayPort (3 m) x 2, HDMI (3 m)
Others AC power cord (3 m), USB Type-A – USB Type-B cable (3 m) x 2, Utility Disk (RadiCS LE, PDF installation manual), instructions for use
Warranty 5 Years
