Thanks to the wide viewing angles, images can be viewed simultaneously by several people with the highest quality reproduction and minimal color shift.
To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tone on the production line to offer monitors fully compliant with DICOM Part 14.
With a native resolution of 1920 x 1080, the monitor can display original, full HD images in 1920 x 1080 resolution without blurring or distortion.
With Picture-in-Picture (PiP), Picture-and-Picture (PaP), and Picture-on-Picture (PoP) functions, different data sources, e.g. archived images or patient data can be reviewed simultaneously during an operation.

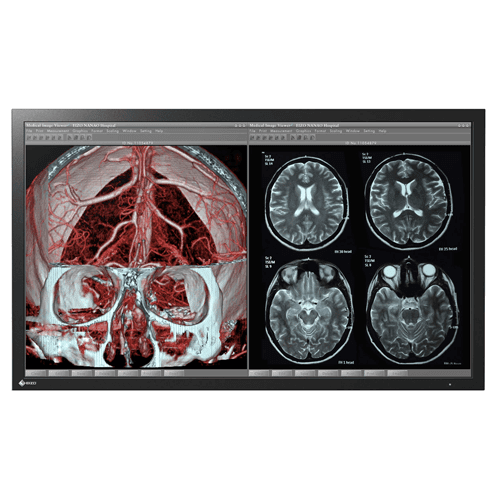

Eizo RadiForce LX470W is engineered to dissipate heat without a fan, thus keeping distracting noises and circulation of dust and germs out of the operating room while ensuring the controlled laminar airflow remains undisturbed within the room.
VESA compliance to be attached to existing mounting accessories.
RadiForce monitors meet the strictest medical, safety, and EMC emission standards.
Eizo RadiForce LX470W fully automated stability function makes use of an internal backlight sensor to quickly stabilize the brightness level at startup and to compensate for fluctuations caused by variations in ambient temperature and the passage of time.
RadiForce monitors are calibrated to comply with DICOM Part 14 to offer rendering consistency over time.
The color, hue, saturation, brightness, contrast, temperature and tones of the display can be adjusted to best fit the physician’s color preference.
Eizo RadiForce LX470W offers multiple input signals to allow connections with both legacy and state-of-the-art endoscopic systems without the need of other optional devices or costs. With loop-through output support, the monitors are also ideally suited for multi-monitor integration or archiving in the operating room.
The panel protector secures the screens from scratches, damages and liquids and alleviates cleaning and disinfection of the front surface.
EIZO, which means image in Japanese, is a visual technology company that develops and manufactures high-end display solutions. EIZO integrates hardware and software technologies with consulting, web hosting, and other services to help customers in business, graphics, gaming, medicine, maritime, air traffic control, and other fields work more comfortably, efficiently, and creatively. Headquartered in Hakusan, Japan, EIZO has R&D and manufacturing facilities in Japan, China, Germany, and the U.S., and representation in more than 80 countries.
| Cabinet Color | Black, White |
|---|---|
| Panel | |
| Type | Color (IPS) |
| Backlight | CCFL |
| Size | 119 cm / 47.0" |
| Native Resolution | 1920 x 1080 (16:9 aspect ratio) |
| Viewable Image Size (H x V) | 1039.7 x 584.8 mm |
| Pixel Pitch | 0.5415 x 0.5415 mm |
| Display Colors | 8-bit colors: 16.77 million colors |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 700 cd/m2 |
| Contrast Ratio (typical) | 1000:1 |
| Response Time (typical) | 9 ms (midtone) |
| Video Signals | |
| Input Terminals | BNC (HD-SDI) x 1, BNC (Composite) x 1, DVI-I x 1, HDMI x 1, D-Sub mini 15 pin (Separate Sync, Composite Sync, SoG*,YPbPr*, RGBS*, RGB/HV*) x 1, S-Video x 1 *Require use of D-Sub mini 15 pin to (up to 5) BNC adapter cable. |
| Output Terminals | BNC (HD-SDI, Composite) x 2, D-Sub mini 15 pin (VGA) x 1, S-Video x 1 (All outputs: loop through) |
| Digital Scanning Frequency (H / V) | 15 - 100 kHz / 50 - 85 Hz |
| Analog Scanning Frequency (H / V) | 15 - 100 kHz / 50 - 85 Hz |
| USB | |
| Function | 1 upstream, 2 downstream |
| Standard | USB 2.0 |
| Power | |
| Power Requirements | AC 100 - 240 V: 50 / 60 Hz |
| Maximum Power Consumption | 270 W |
| Power Save Mode | Less than 14W |
| Power Management | Digital: DVI DMPM, Analog: VESA DPM |
| Sensor | Backlight Sensor |
| Features & Functions | |
| OSD Languages | English, German |
| Physical Specifications | |
| Net Weight | - |
| Net Weight (Without Stand) | 40 kg |
| Hole Spacing (VESA Standard) | 400 x 200 mm, M8, depth 10 - 12 mm |
| Environmental Requirements | |
| Degree of Protection | IP54 (Front) IP20 (Rear) |
| Certifications & Standards (Please contact EIZO for the latest information.) | CE (Medical Device Directive), IEC/EN60601-1 (2nd edition), IEC/EN60601-1 (3rd edition), CAN/CSA C22.2 No. 601.1-M90, CAN/CSA C22.2 No. 60601-1-08, UL60601-1, FCC-A, C-tick, RoHS, China RoHS, WEEE, CCC |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | AC power cord, signal cable (DVI-D - DVI-D), remote control, Utility Disk (PDF Instructions for Use) |
