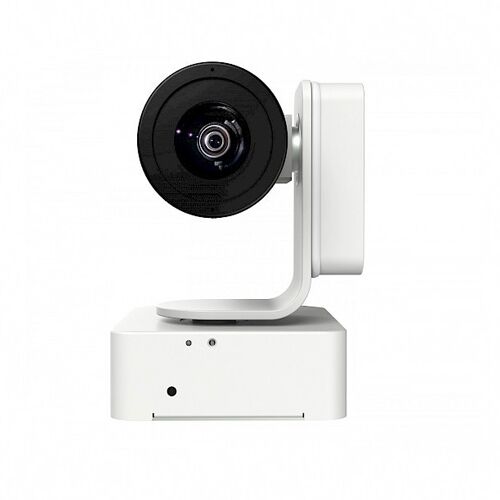

Eizo CuratOR SC430-PTR 4K UHD Medical Camera System

  • 4K ultra high definition resolution at 60p
  • 30x optical zoom for clear, close-up images
  • Integrated triaxial camera mount with pan, tilt, and roll
  • Intuitive camera movement for simple operation
  • Single cable connection between camera head and CCU
  • Smooth positioning even under high zoom
  • Attach to ceiling arms for obstruction-free video
PRICE REQUEST

Description

Eizo CuratOR SC430-PTR 4K UHD Medical Camera System

4K Ultra-High-Definition Resolution

The Eizo CuratOR SC430-PTR surgical field camera captures images in 4K UHD resolution (3840 x 2160) with a progressive 60 Hz signal for smooth, high definition images of the surgicSC430-PTR  camera lens has up to 30x optical zoom, allowing the camera to easily zoom into small target areas. Even when positioned at a safe distance, the camera can clearly zoom in to and capture narrow surgical sites in detail.

Smooth Positioning at High Zoom

With unique and intelligent stepping technology, as the camera zooms in, the pan, tilt, and roll movements slow down to prevent the field of view from moving too quickly. With easily controllable movements, even under high zoom, preparation for surgery is made quicker and easier.

Fully Integrated Camera Mount

The camera head comes fully integrated on a camera mount with +/-170 degrees pan, +90 to -30 degrees tilt and +/-165 degrees roll to ensure that the field of view can be adjusted to the ideal location with ease.

Intuitive Panning and Tilting Direction

The camera head is integrated with the camera mount, allowing left and right, and up and down movements to remain parallel to the field of view, even after rolling. When panning or tilting, the camera head moves in relation to the field of view, rather than the position of the camera head like unintegrated cameras. This ensures intuitive and effortless panning and tilting.

Convenient Camera Control from Anywhere

Camera movement, focus, and white balance can be adjusted using the front panel of the Camera Control Unit (CCU), or the supplied wireless remote control. Additionally, the CCU panel and optional wired remote control come with a joystick for intuitive control. The camera can also be controlled from OR software, such as CuratOR Caliop.

Versatile Connectivity

The SC430-PTR comes with 3G-SDI and HDMI output terminals, for outputting 4K or full HD video at 60p/50p.

Voice Capture for Comprehensive Review

When reviewing surgical footage, audio is often required to hear how the doctors and nurses communicate. The SC430-PTR records sound at the same time as video, providing a high definition video with synched audio. This allows viewers to clearly hear and see the proceedings of a surgery.

Obstruction-Free Viewing

Typical surgical field cameras attach to the center of surgical lights, where the surgeon’s head or arms may obstruct the field of view. The SC430-PTR can be attached to designated ceiling arms, allowing it to be positioned independently of lighting to avoid possible obstructions.

One Cable Connection for Easy Installation

The integrated camera head and mount can be connected to the CCU via a single cable which not only supplies video and audio, but also power. This makes installation quick and easy, as well as reduces cable clutter.

Easy Cleaning

The exterior can be safely sterilized with alcohol.

Rest Assured with Medical Qualifications

The SC430-PTR meets strict medical, safety, and EMC emission standards.

About Eizo

EIZO, which means image in Japanese, is a visual technology company that develops and manufactures high-end display solutions. EIZO integrates hardware and software technologies with consulting, web hosting, and other services to help customers in business, graphics, gaming, medicine, maritime, air traffic control, and other fields work more comfortably, efficiently, and creatively. Headquartered in Hakusan, Japan, EIZO has R&D and manufacturing facilities in Japan, China, Germany, and the U.S., and representation in more than 80 countries.

Camera Head

Image Sensor 1/2.5 type CMOS, single chip type
Effective Pixels 3840 x 2160
Zoom Optical 30x motorized zoom
Focal Length (f=) 4.6 (W) - 135 (T) mm
Horizontal Field of View (HFOV) 68 (W) - 2.6 (T) deg.
Minimum Object Distance (MOD) 1500 mm (throughout the zoom range) 1000 mm (with Close-up lens)
Filter Diameter 72 mm
Focus Control Auto, Manual
Iris Control Auto, Manual
Pan Range +/-170 deg.
Tilt Range +90 / -30 deg.
Roll Range +/-165 deg.
Pan Speed 8.6 - 0.05 deg/s, 7 steps
Tilt Speed 8.6 - 0.05 deg/s, 7 steps
Roll Speed 30 - 0.2 deg/s, 7 steps
Build-in microphone Yes

Features & Functions

Image Control Auto Level Control (ALC), Center Weighting Metering, BT.2020 Emulation, White Balance, Sharpness
Gain Auto, Manual (0 - 45 db)
Shutter Speed [59.94 Hz output] 1/60 - 1/10000 [50 Hz output] 1/50 - 1/10000
Picture Flip Normal, Flip

Video Format

4K UHD HDMI: 2160/59.94p, 2160/50p SDI: 2160/59.94p, 2160/50p
FHD HDMI: 1080/59.94p, 1080/59.94i, 1080/50p, 1080/50i SDI: 1080/59.94p, 1080/59.94i, 1080/50p, 1080/50i

General

Output Terminals HDMI x 2, BNC (Quad Link 3G-SDI), BNC (3G-SDI), Audio
Remote Control LAN, RS-232C, IR remote
Power Requirements DC 24 V (bundled AC adapter)
Maximum Power Consumption 55 W
Dimensions Camera Head and Mount: 162(W) x 211.5(H) x 198(D) mm (with cable cover) Camera Control Unit: 212(W) x 87.5(H) x 270(D) mm (without projection and rubber feet)
Net Weight Camera Head and Mount: 3.1 kg (with cable cover) Camera Control Unit: 2.9 kg
Hole Spacing Camera Mount: 100 x 100 mm
Operating Temperature Camera Head and Mount: 0 - 40℃ Camera Control Unit: 0 - 40℃
Operating Humidity 20 - 80%RH
Certifications & Standards IEC60601-1, CE, CB, FCC-A, CAN ICES-3 (A), RoHS, WEEE
Supplied Accessories AC adapter, AC power cord (2 m), Camera cable (25 m), IR remote, Rubber feet x 4, ND filter, Close-up lens, Cable cover, Thread-locking fluid, Instructions for Use, Quick Reference
Warranty 2 Years
