Hiliex HPEJ9800UK OEC9800 Upgrade Kit

  • Dual 19″ Monochrome Medical Grade LCD’s
  • 1.3 MP Resolution
  • Contrast Ratio: 1000:1
  • Luminance: 1400 cd/m2  Calibrated: 450 cd/m2
  • Articulating Arm
  • Touch Display (Right)( OEC 9800 Compatible Technology )
  • 30 min Installation Time
SKU: Hiliex HPEJ9800UK Category:

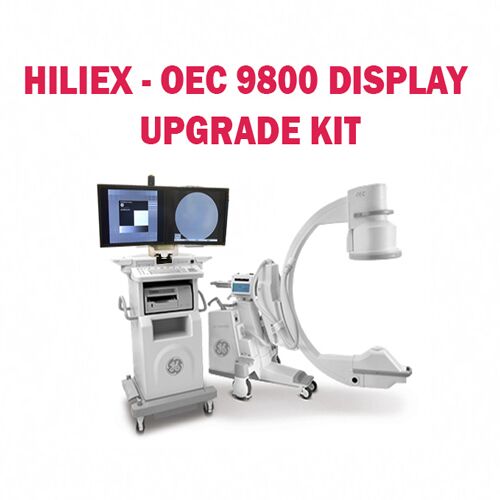

Hiliex HPEJ9800UK GE OEC9800 CRT to LCD Upgrade Kit

Hiliex HPEJ9800UK Dual 19″ Monochrome Medical Grade LCD (LED) Upgrade Kit quick installation allows you to easily upgrade your GE OEC9800 and OEC9800 Plus. The GE OEC9800 upgrade kit includes a touchscreen on the right and a non-touch display on the left that are mounted on an articulating arm that allow for maximum versatility and a 360-degree rotation.

Our innovative design and well-thought-through execution allow users to perform installation in 30 minutes. The Hiliex HPEJ9800UK low cost of ownership will provide the user an upgrade solution that will drastically increase the life of their mobile OEC 9800 C-Arm.




Manufacturer Hiliex
Screen Technology/Type TFT LCD
Screen Size (diagonal) 19 Inches (dual)
Display Resolution 1.3MP
Pixel Pitch 0.294 mm x 0.294 mm
Viewing Angle (H, V) 170°, 170° typical
Maximum Luminance 1400 cd/m²
Calibrated Luminance 450 cd/m²
Contrast Ratio 1000:1
Response Time 25 ms (GTG)
Video Input Connectors BNC
Power Input Requirements 100-240 VAC  50/60 Hz
Power Save Mode Yes
Dimensions with Stand (W x H x D) 32 x 27 x 52 in
Net Weight with Stand 116 lbs
Supplied Accessories OEC 9800 mounting hardware
Warranty 1 year
