Home/Jusha, Radiology Monitor/Jusha C270G – 21.3″ 2MP Color Diagnostic Display

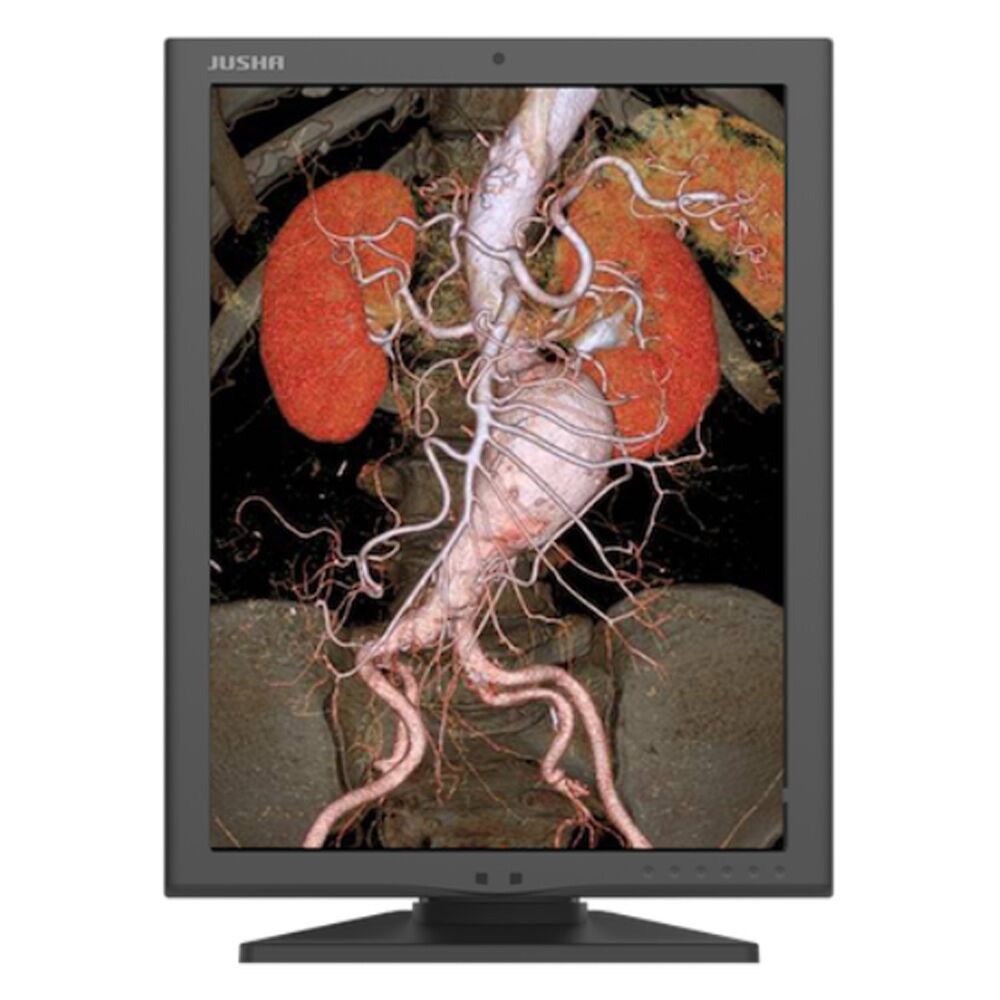

Jusha C270G – 21.3″ 2MP Color Diagnostic Display

2MP/Color/Diagnostic

2MP Medical-grade color monitor.With 14-bit LUT,Full Sereen Uniformity,build-in sensor and QA software,the monitor is quality guaranteed all the time.Color display allows you see more than just black and white.

PRICE REQUEST
SKU: Jusha C270G Categories: ,

Description

Jusha C270G – 21.3″ 2MP Color Diagnostic Display

Introduction

1. 14bit LUT

The 14-bit lookup table further reduces the DICOM error, and the distinction between two adjacent gray scales is more obvious, which is conducive to the diagnosis of the early lesion tissue with the smallest grayscale difference from the normal tissue.

2. DICOM Calibration

Complying with DICOM 3.14 standard and equipped with dynamic LUT, the monitor is ensured to meet the DICOM requirements at any brightness, contrast, and color temperature, improving the accuracy and stability of lesion diagnosis.

3. Full Screen Uniformity

Through the pixel-by-pixel full-screen brightness uniformity calibration, the difference in brightness and color temperature of different screen areas caused by the characteristics of the liquid crystal panel can be effectively reduced. Ensure that any area of the entire screen conforms to the DICOM standard, which can significantly reduce missed and misjudged diagnoses.

4. Lightbox Mode

The Lightbox Mode can increase the brightness of the monitor to peak value,which can reploce the traditional Lightbox for film reading and increase work efficiency.

5. SmarTouch

Medical image diagnosis usually requires high brightness, and long-term use of high-brightness displays will damage your eyesight. In order to solve this problem, we provide a one-key brightening function. You can use a simple shortcut key to switch the display brightness between normal and maximum, providing great convenience for your work.

6. Integrated Front Sensor

The user can customize the black point brightness, white point brightness and environmental brightness of the DICOM curve according to the actual environment and diagnosis requirements. Build-in sensors measure the current display brightness in real-time, enabling the monitor to automatically adjust to the best status, and comply with DICOM standards at any time.

7. JUSHA QA Compatible

Users can check and calibrate the monitor status by themselves, removing the side effects from panel’s aging, which prolongs the lifespan of the monitor and achieving more accurate image.

8. Shark Gill Design

Award winning Shark Gill outlook design fuse the shark elements into product, achieving a modern and polished look.

9. Multi-stance Stand

You can easily change the angle and height of the monitor with our stand, minimizing the fatigue during everyday viewing.

10. Ambient Light Adaptive

The monitor measures the ambient light in real time, and adjusts the display accordingly to ensure accurate diagnosis.

11. Human Detection

Human detection feature will turn off the monitor when no person is presented. This prolongs the monitor’s life cycle, and helps save energy.

12. Energy Efficient

With minimum power consumption of 0.5W, the monitor is eco-friendly and energy-saving,the LED backlight lifespan is also longer.


Warning: call_user_func() expects parameter 1 to be a valid callback, function 'download_file_force' not found or invalid function name in /home/hiliex.com/public_html/wp-content/plugins/woocommerce/templates/single-product/tabs/tabs.php on line 47

Specifications

Model No: C270G

Model C270G
Type IPS
Backlight LED
Diagonal size 21.3″
Display area 432(H) × 324(V) mm
Resolution 1600 × 1200
Aspect ratio 4:3
Pixel Pitch 0.27 mm x 0.27 mm
Color Depth 8 bit
LUT Depth 14 bit
Viewing angles 178°
Maximum brightness (typical) 1000 cd/m²
Maximum calibrated brightness 600 cd/m²
Default brightness 400 cd/m²
Minimum brightness 200 cd/m²
Presets DICOM, GAMMA2.2, GAMM2.4, CT/MRI-JS, DSA, DSI
Contrast ratio 1400:1
Response time (Ton+Toff) 8 ms
Qualitas QA Yes
Features SmarTouch, XFV, PI, ABA, ALC, Real-time DICOM calibration
Video input DP x 1, DVI x 1
USB Ports Upstream USB-B 2.0 x 1, Downstream USB-A 2.0 x 2
Power input 12V DC-5A
Typical power 16 W
Maximum power 46 W
Power saving < 0.5 W
Backlight stabilizer Yes
Front sensor Yes
Ambient light sensor Yes
Other sensors Human, Temperature
Housing color Black
Dimensions with stand (W x H x D) 382 mm x 528 mm x 238 mm
Dimensions without stand (W x H x D) 382 mm x 490 mm x 74 mm
Net weight with stand 10.8 kg ±0.5 kg
Net weight without stand 6.5 kg ±0.5 kg
VESA 100 x 100 mm
Certifications CE, FDA, CCC, Inmetro, EAC, BIS, Energy saving
