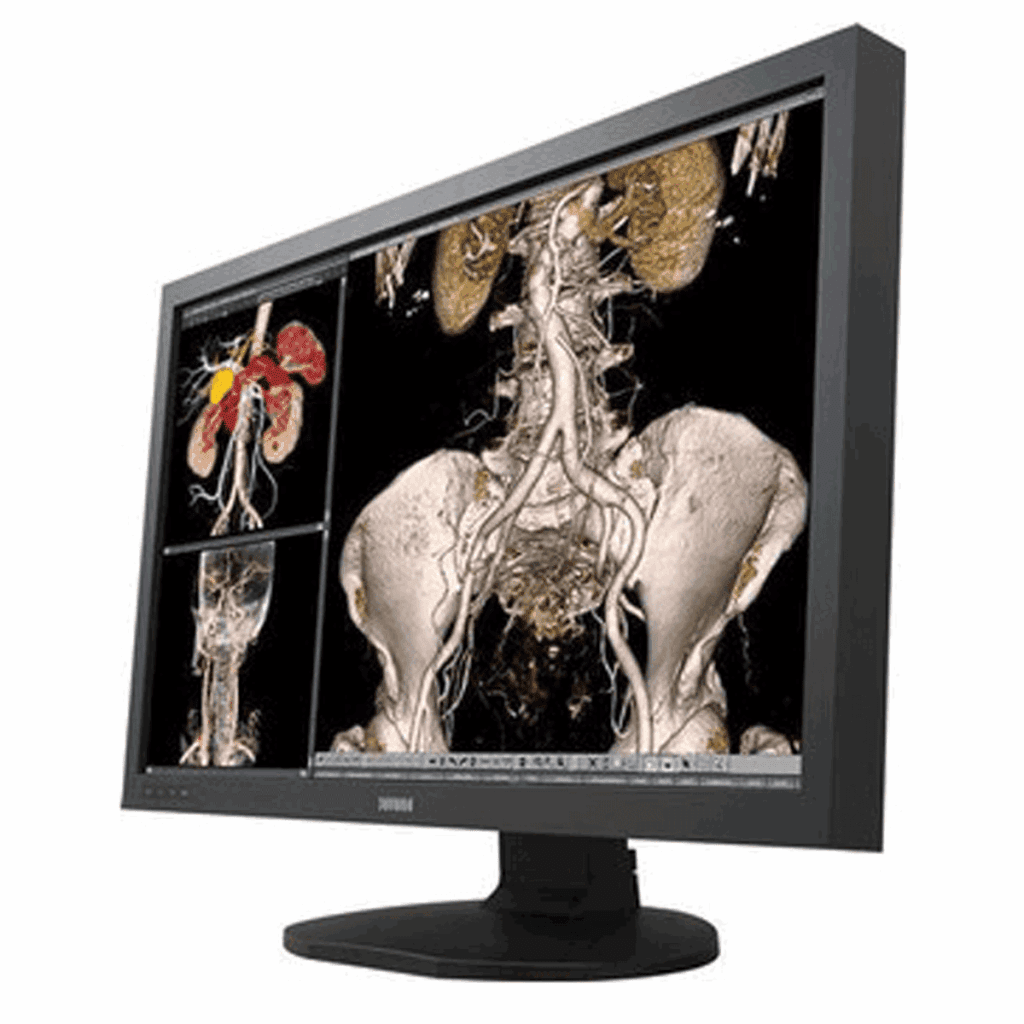

JVC CCL650i2 6MP 30" Color Diagnostic Displays

Wide screen 6MP color diagnostic display for new possibilities with streamlined workflow

With a wide 30″ screen, the Totoku CCL650i2 allows you to view images of two 3MP displays in one screen without the center bezels. Additionally, the JVC CCL650i2 allows for the flexibility of window layouts in a number of ways supporting multiple system configurations. Providing optimal functions for diagnostic viewing, this seamless and wide LCD improves your workflow efficiency while ensuring space and energy saving.



JVC CCL650i2 6MP 30″ Color Diagnostic Displays

JVC CCL650i2  6MP wide color display

The 30″ wide color LCD with 6MP JVC CCL650i2 delivers viewing area equivalent to two 3MP displays seamlessly. The wide screen of the JVC CCL650i2  also enables you to effectively and efficiently allocate multiple windows you need to work on. The CCL650i2 requires less footprint compared with two 3MP displays to save space.

LED backlight system provides more stability in images as well as energy saving

Compared to the CCFL backlight, LED backlight Totoku CCL650i2 will save about 20% of energy and hold brightness longer. Additionally, mercury-free backlight of this new model contributes to reduce the environmental effects.

DICOM conformance check

DICOM conformance check can easily be performed as a user-friendly OSD function

Luminance stabilizing system λ-Sentinel

The luminance sensor in front constantly monitors and accurately stabilizes luminance on the screen to optimize image quality all the time.

Uniformity equalizer

Luminance and color uniformity correction system will produce stable images across the screen.

Diversified utility

Multiple system configurations can be accommodated with two Dual link DVI and two DisplayPort interface.*¹  With the DisplayPort, up to 1.06 billion colors are simultaneously displayed. Additionally, 1021 or 10-bit shades of gray are simultaneously displayed*²  to provide brighter and crisper images ever.

*¹:If viewing images with different graphics card or different input signals, please contact your local distributors.

*²:Customized viewer software and graphics card are required to display 10-bit images.

Multiple signal sources

You can choose multiple signal sources at your fingertips.

Special AR Coating for Film-like Black and Improved Sharpness

JVC’s new special AR coating technology addresses properties of focus, noise reduction, contrast and viewing angle achieving film-like black and accurate reproduction of images.

MedivisorDICOM compliant calibration

Calibration software Medivisor allows you to optimize your display by adjusting color temperature, luminance and gamma resulting in accurate colors and smooth steps of grayscale.


Enhanced convenience with utility software

Advanced power saving

The JVC CCL650i2 backlight dims as the screensaver starts, reducing power consumption and preventing unnecessary deterioration of the backlights.

Gamma check

18 points of luminance values are measured and plotted in a graph.

*Optional software Calibration Kit is required to set up the Advanced Power Savings feature and Gamma check feature.

User-selectable display configurations

Users can register up to three different configurations for desired luminance and gamma settings.

Worldwide medical safety standards

JVC medical image displays comply with worldwide medical standards, ensuring safety and reliability for use in medical facilities.

About JVC

JVC is a leading worldwide manufacturer of medical image displays and touch panel displays. Its high-end, high-cost-performance medical image displays and touch panels are backed by its unique technology and know-how through decades of solid experience in the industry since 1972.

JVC has supplied computer displays for factories, broadcast stations, workstations, and other applications, and has earned a high marks for its product reliability under harsh conditions and post-installation support, not to mention specialized technologies required for respective fields.

JVC continues to provide high-performance displays for specialized fields by developing leading-edge technologies, while providing consistently optimal customer service.

Specifications & Dimensions
Model Name CCL650i2 /AR (with special AR coating), CCL650i2 /N (without coating)
Technology 30.0-inch, TFT color active matrix IPS technology
Display Area 645.5mm x 403.05mm
Pixel Pitch 0.197mm x 0.197mm
Contrast Ratio 1000:1 (typ)
Maximum Luminance 800cd/m² typ. (Calibrated to 410cd/m² and 300cd/m² by factory default)
Viewing Angle 170° vertical and horizontal
Native Resolution 3280 x 2048 (at Fv=30Hz), 1640 x 2048 (at Fv=60Hz)
Display Colors 16.77million colors from a palette of 68 billion colors 1.06 billion colors with DisplayPort and 10-bit viewer
Input Signal DVI-D (DVI 1.0 compliant), DisplayPort (DisplayPort 1.1a compliant)
Plug and Play DDC2B compliant
Input Power Supply 100V – 240V 50/60Hz
Maximum power consumption 180W (typ)
Calibration Control Luminance, Gamma, Color temperature Capable of storing 3 sets of LUT (An optional Calibration kit is required.)
OSD Information Display Model name, Serial No., Total operating time, Calibration settings (Operating time since last calibration, Luminance, Gamma), Current luminance and ambient light, DICOM conformance
USB Hub USB Rev. 2.0 compliant, Self-powered USB upstream connector (x1), USB downstream connector (x2)
Other Features Luminance/color uniformity correction, LED indicator, Multiple LUT, Self DICOM check
Approvals ANSI/AAMI ES60601-1(2005) +A1(2012), CAN/CSA-C22.2 No. 60601-1(2008), CE, FCC-B, ICES-003-B, VCCI-B, FDA510(k)*, J-Moss, RoHS *Pending
Dimensions (Incl. tilt stand) 695.6mm x 512.1/573.6mm x 243.5mm
Weight About 15.5kg
Tilt Stand Tilt, Swivel
Mount Vesa mounting 100mm x 200mm, 100mm x 100mm
Security Slot Display, Stand
Accessories Power cord, DVI cable x2, DisplayPort cable x2, USB cable, Users manual, Cleaning kit* *Special AR coating model only
