Microtek Medi-7000 Medical Grade Digitizer

FDA certified
7 seconds per Chest X-Ray
No warm up time with LED light source
4.0 Dmax, 600 dpi optical resolution (42 µm spot size, 12 lp/mm)
Covers various sizes of x-ray films from 2.5″x2.5″ to 14″x35″
Auto-crop & Auto-deskew
Supports DICOM 3.0 and telemedicine with optional MiPAX
Easy to operate, clean, and maintain
Offers better quality, excellent performance, and secure e-medical records

PRICE REQUEST

SKU: Medi-7000 Category: Digitizers

Description

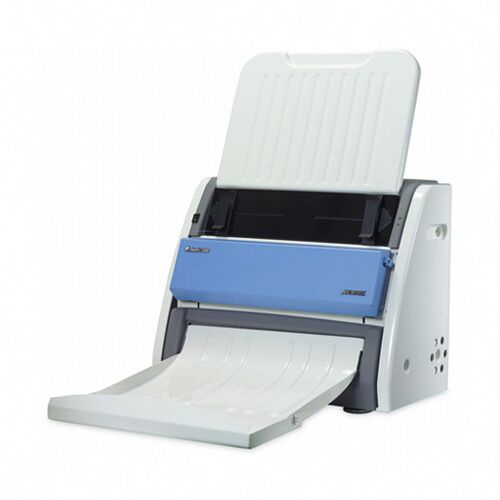

Microtek Medi-7000 Medical Grade Digitizer

Microtek Medi-7000 medical grade digitizer can digitize X-Ray films rapidly in 7 seconds per chest X-Ray. With the advanced technology of the LED light source, the Medi-7000 can reach full brightness and on/off operation immediately. The Medi-7000 can scan various sizes of X-Ray films up to 14×35 inches, letting users easily archive many kinds of X-Ray films. Equipped with high optical resolution, excellent Dmax, and 16-bit grayscale, the Medi-7000 ensures that the scans will capture all the details presented in any area of the film and offer superior image quality to the medical professionals.

With the optional MiPAX systems of DICOM ready function, Medi-7000 is perfect for fast-paced environment of the medical doctor’s office, QC Station, and PACS system.

About Microtek

Microtek International Inc. is a Taiwan-based multinational manufacturer of digital imaging products and other consumer electronics. It produces imaging equipment for medical, biological, and industrial fields. It occupies 20 percent of the global imaging market and holds 450 patents worldwide.

It is known for its scanner brands ScanMaker and ArtixScan. The company launched the world’s first halftone optical film scanner in 1984, the world’s first desktop halftone scanner in 1986, and the world’s first color scanner in 1989. It has subsidiaries in Shanghai, Tokyo, Singapore and Rotterdam. It expanded its product lines into the manufacturing of LCD monitors, LCD projectors, and digital cameras.

SPECIFICATION

Product Name

Medi-7000
Scanner Type

X-Ray films, Sheet-fed digitizer
Model Type

MSS-600XU2Lxx
Image Sensor Type

CCD
Resolution

600 dpi (42 um spot size, 12 lp/mm)
Light Source

LED
Scanning Area

Film Scan Area
Min: 2.5” x 2.5”(63.5 x 63.5 mm)
Max: 14” x35”(355.6 x 889 mm)
Scanning Speed

7 seconds,@ 300 dpi, 14” x 17”
Dynamic Range

Transparency 0.12D~3.7D, 4.0Dmax
Bit Depth

8/12/16-bit grayscale
Connectivity

Hi-Speed USB (USB 2.0)
Drivers

TWAIN
Supported File Types

TIF, BMP, EPS, JPG, PSD, SCT, GIF, IFF, PCX, PXR, TGA, PDF, DCX
OS Support

Windows 7/ 8/ 10 (ScanWizard Medi)
Dimensions (L x W x H)

330 x 526 x 435 mm (without tray)
738 x 526 x 696 mm (with tray)
Weight

38.58 lbs (17.5 kg)
Certifications

CE0120, FDA, CFDA, TFDA(003517), CCC
Power Source

100 – 240 VAC, 47 – 63 Hz
Power Consumption

54.9 Watts
System Requirements PC

CD-ROM drive (for installing software)
2 GB RAM or more
Pentium IV PC or higher with USB port
Microsoft Windows XP/ Vista/ Windows 7
Software Included

Microtek ScanWizard Medi
Adobe Acrobat Reader
Inbox Contents

Digitizer unit
Power adapter & power cord
High-Speed USB 2.0 cable
CD(s)
Manual(s)
Accessories

Microtek MiPAX-Xray software (Optional)
