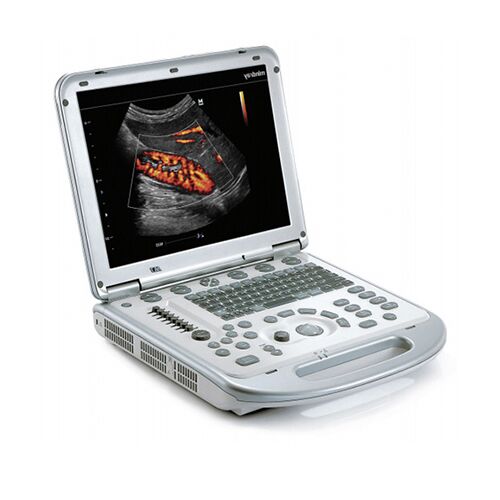

Mindray M7 Portable Color Ultrasound System

  • Color Doppler
  • Tissue Harmonic Imaging
  • iClear Speckle Reduction
  • iBeam Compound Imaging
  • 2D Imaging
  • 3D Imaging
  • Live 3D / 4D imaging
  • 10 Lbs
  • Rolling Cart available


Mindray M7 Portable Color Ultrasound System

The Mindray M7 is an award winning portable hand-carried color Doppler that is a high level system with excellent performance across a wide range of applications. Equipped with advanced technologies and easy-to-operate workflow software, the Mindray M7 is the best choice for professionals putting quality first.

The Mindray M7 portable ultrasound system has gained a reputation not only as one of Mindray’s most reliable and powerful portable ultrasound machine, but as one of the best on the market. It is versatile, compact, and is capable of providing ultrasound images for a wide array of applications. The M7 is equipped with some powerful image enhancing technology that few other systems are able to replicate, especially not in the pristine clarity that the M7 can achieve.

This portable ultrasound machine is engineered brilliantly, with many important and crucial technologies required for accurate diagnosis, image quality enhancement, and versatility. Some of these features include THI (Tissue Harmonic Imaging), iClear (Speckle Reduction), iBeam (Compound Imaging) and even 3D and Live 3D (or 4D) imaging. Color doppler option enhances both general and vascular application images and diagnosis as well.

The Mindray M7 portable ultrasound machine is also engineered to look elegant, sleek and aesthetically attractive. Weighing approximately 10 pounds, with a sophisticated white and silver gleaming cover, this unit is a thing of beauty. It is also compatible with a rolling cart – making this machine employable either as a compact portable unit or a stationary one. One can utilize this ultrasound machine in emergency scenarios, such as in ambulances or emergency rooms, or in more secure settings; doctor offices or imaging centers for example.

Another aspect of this machine that is adored by doctors and diagnosticians is the amount of Mindray probes that the M7 is compatible with. With over 15 options of transducers and probes that this portable ultrasound machine is able to connect with, it’s flexibility and adaptability is greatly emphasized.

3T Transducer Technology

Mindray’s patent transducer technology to increase image bandwidth and transmission efficiency.· Triple-matching layer design for higher sensitivity, wider bandwidth, and improved S/N.
· Total-cut design for lower cross-talk noise, better directivity, and improved lateral resolution
· Thermal-control design for better acoustic transmission

PSHITM (Phase Shift Harmonic Imaging)

Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise.

iBeamTM(Spatial Compound Imaging)

Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization.

iClearTM (Speckle Suppression Imaging)

Gain improved image quality based on auto structure detection.
· Sharper & Continuous Edges
· Smooth Uniform Tissues
· Cleaner ‘no echo areas’

Multi-beam formation

Maximum 8 times tasking for one transmitted beam, resulting in excellent time resolution and higher frame rate, thus providing superb temporal resolution for cardiac imaging.

UWN (Ultra-Wideband Non-linear) Contrast Imaging

Mindray’s unique contrast imaging technology, utilizing contrast agent characters with both 2nd harmonic and non-linear fundamental signal to get improved S/N ratio for better diagnostic details and longer contrast agent duration for better observation.

Natural Touch Elastography

Based on Mindray’s latest patented technology, natural touch elastography reduces dependence on user operation technique, improving operator’s reproducibility for higher clinical utility.
· Higher stiffness sensitivity
· Good stability and reproducibility

iScapeTM (Real-time Panoramic Imaging)

Get a complete and extended view of the anatomical structure through panoramic imaging, coupled with velocity indication and forward/backward scan ability making scanning much easier, smoother and more controllable.


Discover better diagnostic information through extended view of the anatomical structure on all convex and linear probes.

Free Xros MTM

Gain precise anatomical observation by freely placing sample lines at any angle. Attain better images through simultaneous display of up to 3 sample lines.


The totally new iNeedle is able to recognize and adapt the puncture angle automatically, enhancing both needle tip and pathway clearly.

Smart OBTM

Auto measurement of fetal parameters: trace and calculate the BPD, OFD, HC, AC and FL on a single click.

3D/4D imaging

Including 3D/4D Flip & Sync features providing fast and easy image volume view from any direction.

iTouchTM (Auto Image Optimization)

Gain instant auto image optimization in B, Color and PW Modes on the click of single key.

IMT (Intima-Media Thickness)

Auto measurement of anterior and posterior wall thickness providing accurate carotid status.

Mindray’s unique Patient Information Management System allowing you to integrate, review, archive and retrieve patient data effectively.


Gain instant full screen view on the click of a single key.

Directly transfer images and reports to PC via network cable.

Wireless data transfer solution.

Comprehensive DICOM solution.


Uninterrupted scanning with rechargeable battery

About Mindray

Founded in 1991, Mindray is one of the leading global providers of medical devices and solutions. Firmly committed to our mission of “advance medical technologies to make healthcare more accessible”, we are dedicated to innovation in the fields of Patient Monitoring & Life Support, In-Vitro Diagnostics, and Medical Imaging System.

Mindray possesses a sound global R&D, marketing and service network. Inspired by the needs of our customers, we adopt advanced technologies and transform them into accessible innovation, bringing healthcare within reach. While improving the quality of care, we help reduce its cost, making it more accessible to a larger part of humanity.

Today, Mindray’s products and services can be found in healthcare facilities in over 190 countries and regions. In China, Mindray’s products and solutions can be found in nearly 110,000 medical institutions and 99% of Class A tertiary hospitals.

  • 15 inch High Resolution Diagonal LCD (NTSC or PAL)
  • B/M/Color Doppler Velocity/Power(DirPower)/PW Imaging
  • HPRF
  • Tissue Harmonic Imaging
  • Phase Inversion THI
  • iBeam™ (Spatial compound imaging)
  • iClear™ (Adaptive Speckle Suppression Imaging)
  • iTouch™ (Intelligent Image Optimization)
  • iZoom™ (Automatically expand the image to full screen)
  • Abdomen, Obstetrics, Gynecology, Cardiology, Small Parts, Urology, Vascular, Pediatrics, Emergency Medicine, Nerve
  • Expandable 320G Hard Disk with iStation™ (Patient Management System)
  • S-Video output and TWO USB 2.0 ports
  • AC adapter and lithium-ion battery Pack
  • Traveling Case
  • 5 year Warranty
  • Foot Switch
  • Printer
