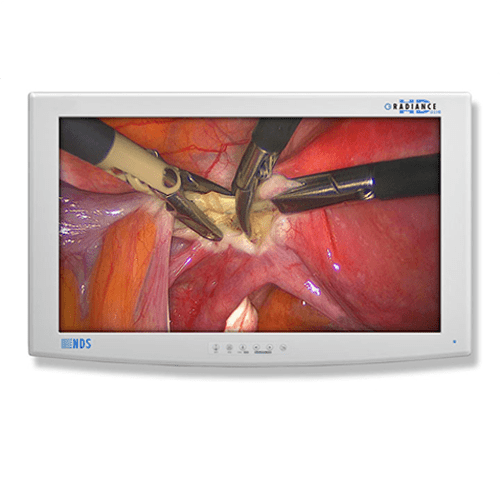

NDS 27 ” RADIANCE ULTRA Surgical Display (90R0100)

  • Ultra-High-Brightness (900 cd/m2 , Typical @ 6500°K)
  • Edge-to-edge Corning® Gorilla® Glass Front Panel
  • Improves Visualization in High Ambient Light Environments and Enhances Visibility of Recessed Anatomy
  • Clinician Confidence in Image Consistency From Room-to-Room, Year-Over-Year
  • Quick and Effective Disinfection Enables Faster OR Turnaround
  • The Brightest LED Backlight in the Industry*
  • Proprietary Medi-Match™ Color Calibration
  • Intelli-guard™ Stabilization & DICOM 3.14 Compliant
  • Flexible Platform, Customizable Input Configuration
  • Embedded ZeroWire® Receiver (Future Option)**


NDS 27 ” RADIANCE ULTRA Surgical Display (90R0100)

The NDS 27 ” Radiance Ultra surgical display features the brightest LED backlight in the industry*, providing a typical luminance of 900 cd/m2 at 6500°K color temperature. This improves visualization in high ambient light environments by overcoming glare and reflection. The NDS 27 ” Radiance Ultra surgical display also increases the usable contrast ratio, enhancing visualization of recessed anatomy.
Proprietary Medi-Match color calibration, in combination with NDSsi’s Intelli-guard backlight stabilization system, delivers superior image consistency over time from display to display. This consistency instills greater confidence in the surgical team. The infection control friendly design makes it quick and easy to disinfect, enabling faster OR turnaround times and enhanced clinical efficiency.

  • 90R0100 NDS 27 ” Radiance Ultra surgical display, w/o Fiber, Option 1
  • 90R0101 NDS 27 ” Radiance Ultra surgical display, w/ single Fiber, Option 1
  • 90R0102 NDS 27 ” Radiance Ultra surgical display, w/o Fiber, Option 2
  • 90R0103 NDS 27 ” Radiance Ultra surgical display, w/ single Fiber, Option 2
  • 90R0104 NDS 27 ” Radiance Ultra surgical display, w/o Fiber
  • 90R0105 NDS 27 ” Radiance Ultra surgical display, w/ single Fiber

This is the newest display available from NDSsi. Its image quality and slim design is on par with today’s technologies. The display is also backed with a 3 year warranty to give you a piece of mind in terms of quality and functionality of the product. Give us a call to discuss your requirements and so we can offer you the best solution to your needs.

About NDSsi

Display Panel Type AM TFT with IPS, Ultra-Bright LED Backlight
Image Size (W x H) 23.5 x 13.2 inches (598 x 336 mm)
Viewing Area (Diagonal) 27.0 inches (685 mm)
Resolution (H x V) 1920 x 1080 (Full HD), 16:9 Aspect Ratio
Pixel Pitch 0.311 mm
Luminance 900 cd/m2 (Typical) @ 6500°K
Color Calibration Proprietary Medi-Match™ Color Calibration
DICOM Calibration DICOM 3.14 Compliant (Gamma Setting)
Backlight Stabilization Intelli-guard™, User Enabled Option
Contrast Ratio 1000:1 (Typical)
Number of Colors 1.07 Billion
Viewing Angle 178˚ (Horizontal & Vertical)
Response Time 14 ms (Typical)
Display Latency Less than 1 Frame (up to 16 ms)
Input Power Requirement 24 Volts DC
DC Power Consumption 70 Watts (Max)
Sealed Front Panel Material Corning® Gorilla® Glass (Double AR Coated)
Control Button Interface Capacitive Type, Hand Proximity Sensing
Dimensions (W x H x D) 26.7 x 17.5 x 3.3 inches (678 x 445 x 84 mm)
Weight 19.5 lbs (8.9 kg)
Temperature Operating: 0 to +40°C (+32 to +104°F)
Mounting 100 mm VESA
