NDS 32" Radiance Ultra 4K UHD Surgical Display (90R0116)

  • 4X the resolution of today’s HD standard
  • Ultra-wide color gamut technology
  • Splash-proof, edge-to-edge glass
  • Exclusive 10-year scratch-resistant glass guarantee
  • High brightness LED backlight
  • Quad-link SDI input supporting both 2-sample
    interleave and square division 4K formats
  • Optimized for 4K/UHD endoscopy applications

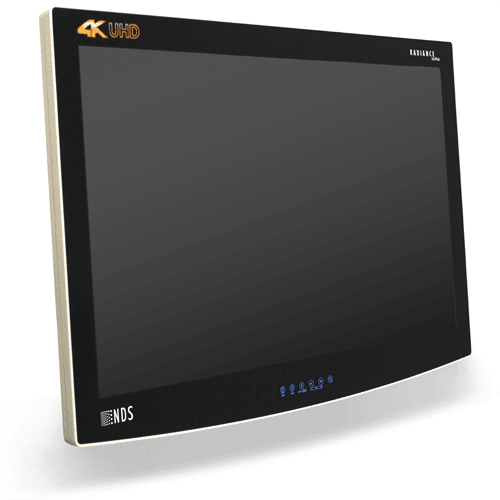

NDS 32″ Radiance Ultra 4K UHD Surgical Display (90R0116)

The New NDS 32″ Radiance Ultra 4K UHD Surgical Display (90R0116) offers four times the resolution of today’s HD standard, plus ultra-wide-gamut color technology, and a high-brightness LED backlight, the NDS 32″ Radiance® Ultra 4K UHD surgical display delivers an immersive visualization experience of uncompromising clarity and detail. The quad-link 3G-SDI inputs support both 2-sample interleave and square division 4K UHD formats to ensure compatibility with 4K UHD endoscopic camera systems. Exceptional brightness (650 cd/m2 typical) can increase the visibility of recessed anatomy, while proprietary Medi-Match™ color calibration assures consistent image quality and accurate color reproduction.

  • 90R0116 – NDS Radiance Ultra 4K/UHD 32”

Intelligent Engineering

Building on the award-winning innovation of Radiance Ultra series HD monitor technology, NDS has engineered intelligent and exclusive features into its 4K UHD displays. Splash-proof, edge-to-edge glass enables easy cleaning to help speed OR turnaround. An unprecedented 10-year scratch-resistant glass guarantee underscores NDS’ commitment to quality and durability.

Ultra-Wide-Gamut Technology

By broadening the range of colors an LCD display can produce, the NDS 32″ Radiance Ultra 4K UHD Surgical Display (90R0116) delivers a more true-to-life viewing experience. Innovating beyond the capabilities of the standard gamut of today’s typical HD imaging, ultra-wide-gamut technology provides visualization that more accurately resembles anatomy the human eye would visualize during an open surgical procedure.

4K UHD … what makes it better?

With over 8 million active pixels producing cutting-edge surgical video, 4K UHD imaging brings a more finely detailed and immersive visualization experience to procedures such as laparoscopy, endoscopy, and arthroscopy when compared to HD displays. The 16:9 aspect ratio of the NDS 32″ Radiance® Ultra 4K UHD Surgical Display (90R0116) display perfectly matches the endoscopy camera’s output. By comparison, a 17:9 aspect ratio “True 4K” display will show blank areas of the screen at the left and right edges, or require an overscan adjustment, resulting in a loss of visual information.

The NDS 32″ Radiance Ultra 4K UHD Surgical Display (90R0116) is the most current 32 inch display available from NDSsi. Its image quality and slim design is on par with today’s technologies. The NDS 32″ Radiance® Ultra 4K UHD Surgical Display (90R0116) is also backed with a 3 year warranty to give you a piece of mind in terms of quality and functionality of the product. Give us a call to discuss your requirements and so we can offer you the best solution to your needs.


About NDSsi

Screen Size 31.5” diagonal
Image Size 27.5” x 15.5”/698mm x 393mm (WxH)
Native Resolution 3840 x 2160 pixels
Aspect Ratio 16:9
View Angle 178°
Luminance 650 cd/m2 (typical)
Contrast Ratio 1,700:1 (typical)
Numbers of Colors 1.06 Billion (10-bit)
Backlight Stabilization NDS Intelli-Guard™
Color Calibration NDS Medi-Match™
Color Gamut 140% of BT.709
Response Time 9.5ms (typical)
Latency 16ms
Video Board Configurations 4K/UHD Inputs – Quad-Link SDI (4 x 3G-SDI), DisplayPort 1.2, HDMI 1.4b 4K/UHD Output – Quad-Link SDI (4 x 3G-SDI) Full-HD Inputs – DVI-D, 3G-SDI Full-HD Output – DVI-D
Quad-Link SDI Format Support 2-Sample Interleave, Square Division
Embedded Wireless Receiver Future Option
Sealed Glass Bezel Protected, Edge-to-Edge, Chemically Strengthened
Glass Anti-Scratch Warranty 10-Year Scratch-Resistant Guarantee
Warranty 3 Years Dimensions 30.7” x 20” x 3.4”/780mm x 509mm x 87 mm (WxHxD)
Weight 25.5 lbs/11.4 kg
Shipping Weight* 40 lbs/18.2 kg
Shipping Dimensions 36” x 9” x 29”/92 x 23 x 74 cm
Green Compliance REACH, RoHS-2, WEEE, Conflict Minerals
Regulatory Compliance ANSI/AAMI ES60601-1, CAN/CSA C22.2 No. 60601-1, , FCC Class B, EN60601-1, EN60601-1-2, CE, MDD 93/42/EEC, Class I Medical Device, designed to meet IPX6
Supplied Accessories Power Supply, 100-240 VAC, 50-60 Hz to 24 VDC, 2.7 A
AC power cord, region appropriate
User Manual – Printed (English Only) & multi-language CD-ROM
OPTIONAL ACCESSORIES 26B0088 Display Stand - 24”, 26”, 27”, 32”
