NEC MD211C3 21.3” 10-bit Color 3MP Medical Diagnostic Display with LED Backlighting (FDA 510(k) approved)

  • Out-of-the-box calibration to the DICOM grayscale display function for luminance
  • Integrated tri-stimulus (three-color) sensor receives more light information than standard (brightness only) sensors and, therefore, is extremely accurate and stable
  • GammaComp™ MD software ensures consistent image quality, while providing a simple interface for conformance to the DICOM standard and an easy-to-use QA environment for medical imaging
  • 14-bit 3D internal programmable lookup tables (LUTs) enable precise calibration
  • Auto luminance control with backlight stabilization for consistent brightness and color
  • Built-in ambient light sensor automatically adjusts the display’s brightness based on existing lighting conditions, reducing energy consumption
  • Quick QA feature allows for a one-button check of DICOM conformance
  • Available as a bundle with two displays and a graphics card (MDC3-BNDA1)
PRICE REQUEST

Description

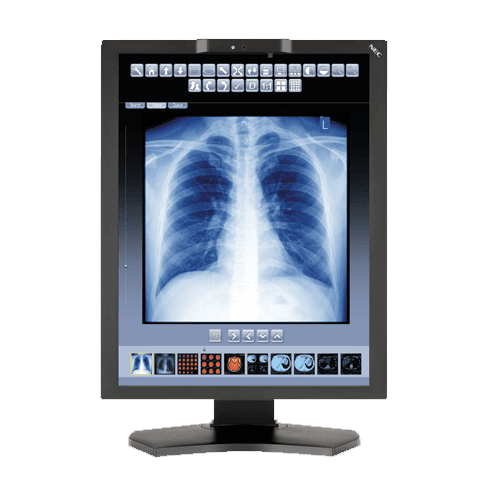

NEC MD211C3 21.3” 10-bit Color 3-Megapixel Medical Diagnostic Display with LED Backlighting (FDA 510(k) approved)

The NEC MD211C3 is designed to meet the demanding needs of healthcare facilities requiring consistent and accurate medical imaging using Picture Archiving and Communication System (PACS). The LED-backlit NEC MD211C3, a 21.3″ 3MP color monitor, features factory calibration to the DICOM standard for luminance and a 70% smaller front sensor than its predecessor. This widescreen monitor, which maintains a designated calibrated brightness, also includes a human sensor that reduces power consumption when a user is not present. The all-digital connectors, including DisplayPort and two-port USB hub, enable advanced connectivity for any type of workstation.

The NEC MD211C3 display is one of the best 3MP color diagnostic displays on the market. The quality and design of the display is on par with today’s technologies. The NEC MD211C3 is also backed with a 5 year warranty to give you a piece of mind in terms of quality and functionality of the product. Give us a call to discuss your requirements and so we can also offer you the best solution to your needs.



About NEC Display Solutions

A wholly-owned subsidiary of NEC Corporation, NEC offers a broad selection of desktops, large-screen displays, and multimedia and digital cinema projectors, coupled with expertise in hardware/software consulting, financing, system configuration, maintenance and service/support. The result is a customized, technology-rich deployment optimized specifically to meet your company’s unique needs.
Our business is driven by innovation, advanced technologies, industry-leading service and value-add programs that help increase your productivity and let you see your digital world in a more dynamic way.

Display
Viewable Image Size 21.3"
ColorType Color
MegaPixels 3MP
Native Resolution 2048 x 1536
Pixel Pitch 0.21mm
Pixels Per Inch 120@ native resolution
Brightness (typical) 400 cd/m2 calibrated / 800 cd/m2 max
Contrast Ratio (typical) 1400:1
Viewing Angle 176° Vert., 176° Hor. (88U/88D/88L/88R) @ CR>10
Response Time 20ms
Lookup Table 14-bit
Displayable Colors 16.8 million colors out of a 68 billion color palette (8-bit) / 1.074 billion colors out of a 4.398 trillion color palette (10-bit) / 16,384 levels of grayscale
Sensors
Tri-stimulus front
Synchronization Range
Horizontal (Analog/Digital) 31.5-94.8/126.3 kHz
Vertical 30, 58-85 Hz
Connectivity
Input/Output Terminals
Digital DVI-D, DisplayPort, USB hub (1 up/2 down)
Power Consumption (typical)
On 85W
Power Savings Mode 2W
Physical Specifications
Dimensions (WxHxD)
Net (with stand) 14.7 x 19.3-23.4 x 9.3 in. / 373.4 x 490.6_593.4 x 235.5
Net (without stand) 18.6 x 14.7 x 4.1 in. / 473.0 x 373.4 x 104.1mm
Weight
Net Weight (with stand) 26 lbs. / 11.8 kg
Net Weight (without stand) 17 lbs. / 7.8 kg
VESA Hole Configuration Specifications
100 x 100mm
Environmental Conditions
Operating Temperature 41-95°F / 5-35°C
Operating Humidity 20-80%
Operating Altitude 10,000 ft. / 3048m
Storage Temperature 14-140°F / -10-60°C
Storage Humidity 10-85%
Storage Altitude 40,000 ft. / 12,192m
Safety Standards
  • UL60950-1 & UL60601-1
  • PSB
  • SASO
  • CCC
  • Gost/PCT
  • CE-MDD
  • NOM
  • TUV GM
  • FCC CLASS B/CANADIAN DOC
  • C-tick
  • FDA 510(k)
  • VCCI (class2)
  • ISO9241-307
  • RoHS(EU)
  • AAPM-TG18 (US)
  • SB50 (US California)
  • WEEE(EU)
  • DIN V 6868-57 (Germany) CatB
  • JESRA-X0093
Limited Warranty (parts & labor, including backlight)
5 years, including Advanced Overnight Exchange; Backlight replacement limited to 44,000 hours of usage at 400 cd/m2 or less at t
Additional Features
  • DICOM GSDF calibrated
  • Digital Uniformity Correction
  • GammaComp MD QA software
  • Digital CableComp
  • Pivot
  • Tilt
  • Swivel
  • Rotate
  • Height-adjustable stand
Ships With
  • Power cord
  • DVI cable (Dual Link)
  • DisplayPort cable
  • USB cable
  • Warranty sheet
  • CD-ROM (GammaCompMD QA software)
  • User Manual
Accessories
Optional
  • Nvidia Quadro 2000D dual PCIe video card (MDN-Q2000D)
  • AMD V5800 dual DVI PCIe video card (MDA-V5800D)
  • Matrox Xenia Pro triple DVI video card (MDM-XENPRO)
  • Color calibration sensor (MDSVSENSOR2)
