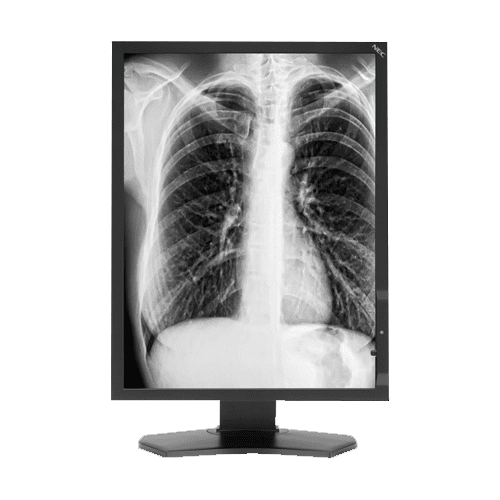

NEC MD211G3 21” Grayscale 3MP Medical Diagnostic Display (FDA 510(k) approved)

  • Superior screen performance (900:1 contrast ratio, 2048 x 1536 native resolution, 1450 cd/m2 maximum and 400cd/m² calibrated brightness)
  • Out-of-the-box calibration to the DICOM grayscale display function for luminance
  • Uniformity control provides accurate imaging across the screen
  • Built-in ambient light sensor automatically adjusts the display’s brightness based on existing lighting conditions, reducing energy consumption
  • Height-adjust, pivot, tilt and swivel capabilities add flexibility and comfort to your viewing preferences
  • Includes GammaCompMD™ QA software for worry-free calibration and conformance testing to the DICOM standard
  • Available as a bundle with two displays and a graphics card (MDG3-BNDL1 or MDG3-BNDA1)
PRICE REQUEST

Description

NEC MD211G3 21” Grayscale 3MP Medical Diagnostic Display (FDA 510(k) approved)

The 21.3” NEC MD211G3, a medical-grade widescreen diagnostic display, is designed for the demanding needs of healthcare professionals working in radiology and PACS applications. This 3MP grayscale display offers an SA-SFT IPS panel for impeccable 2048 x 1536 resolution. The DVI-D and DisplayPort connectors for video and two-port USB hub enable connectivity for any type of workstation. The NEC MD211G3 ’s built-in front sensor constantly monitors and maintains brightness for optimal DICOM GSDF calibration. Its four-way ergonomic stand allows users to adjust for comfort and preference accordingly. This display is FDA 510(k) cleared for use in digital radiology applications. The NEC MD211G3 display is one of the best 3MP grayscale diagnostic displays on the market. The quality and design of the display is on par with today’s technologies. The NEC MD211G3 is also backed with a 5 year warranty to give you a piece of mind in terms of quality and functionality of the product. Give us a call to discuss your requirements and so we can offer you the best solution to your needs.


About NEC Display Solutions

A wholly-owned subsidiary of NEC Corporation, NEC offers a broad selection of desktops, large-screen displays, and multimedia and digital cinema projectors, coupled with expertise in hardware/software consulting, financing, system configuration, maintenance and service/support. The result is a customized, technology-rich deployment optimized specifically to meet your company’s unique needs.
Our business is driven by innovation, advanced technologies, industry-leading service and value-add programs that help increase your productivity and let you see your digital world in a more dynamic way.

Display
Viewable Image Size 21.3"
ColorType Grayscale
MegaPixels 3MP
Native Resolution 2048 x 1536
Pixel Pitch 0.21mm
Pixels Per Inch 120@ native resolution
Brightness (typical) 400 cd/m2 calibrated / 1450 cd/m2 max
Contrast Ratio (typical) 900:1
Viewing Angle 176° Vert., 176° Hor. (88U/88D/88L/88R) @ CR>10
Response Time 13ms
Displayable Colors 1024 shades of gray out of 48961
Sensors
Front
Synchronization Range
Horizontal (Analog/Digital) 31.5-99.4 KHz/126.3 KHz
Vertical 50-85 Hz/30 Hz
Connectivity
Input/Output Terminals
Digital DVI-D, DisplayPort, USB hub (2 up/ 3 down) with DisplaySync Pro
Power Consumption (typical)
On 105W
Power Savings Mode <2W
Physical Specifications
Dimensions (WxHxD)
Net (with stand) 18.4 x 14.9-20.8 x 9 in. / 467.8 x 377.6-527.6 x 227.6mm
Net (without stand) 18.4 x 14.2 x 4.1 in. / 467.8 x 361.6 x 104mm
Weight
Net Weight (with stand) 23.6 lbs./ 10.7 kg
Net Weight (without stand) 16.5 lbs. / 7.5 kg
VESA Hole Configuration Specifications
100 x 100mm
Environmental Conditions
Operating Temperature 41-95°F / 5-35°C
Operating Humidity 30-80%
Operating Altitude 9842 ft. / 3000m
Storage Temperature 14-140°F / -10-60°C
Storage Humidity 10-85%
Storage Altitude 40,000 ft. / 12,192m
Safety Standards
  • C-UL
  • EN 60601-1
  • ISO 9241-307
  • ISO 13406-2
  • US Mercury Regulations
  • ECMA-370
  • SB50 (California)
  • WEEE
  • RoHS
  • PC Recycle
  • CCC
  • CEL Grade 1
  • AAPM-TG18
  • DIN V 6868-57
  • FDA 510(k)
Limited Warranty (parts & labor, including backlight)
5 years, including Advanced Overnight Exchange
Additional Features
  • DICOM GSDF calibrated
  • ColorComp image uniformity correction
  • GammaCompMD QA software
  • Pivot
  • Tilt
  • Swivel
  • Height-adjustable stand, USB hub (1 up / 2 down)
Ships With
  • Power cord
  • DVI-D cable
  • DisplayPort cable, USB A to B cable
  • User Manual
  • Warranty Sheet
  • CD-ROM (GammaCompMD QA software)
Accessories
Optional
  • NVIDIA dual-head video card (MDN-Q2000D)
  • AMD dual-head video card (MDA-V5800D)
  • Matrox triple-head video card (MDM-XENPRO)
  • Medical calibration sensor (MDSVSENSOR2)
  • Medical calibration sensor (MDSVSENSOR3)
