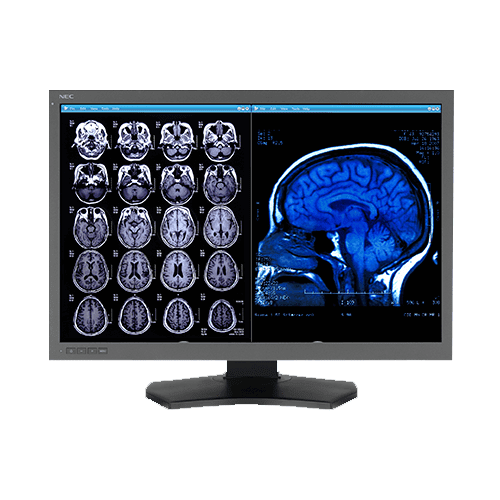

NEC MD302C6 30” Color 6MP Medical Diagnostic Display with LED Backlighting (FDA 510(k) approved)

  • Excellent screen performance (1000:1 contrast ratio, 3280 x 2048 native resolution, 800 cd/m², 400 cd/m² calibrated brightness)
  • Out-of-the-box calibration to the DICOM grayscale display function for luminance
  • Integrated two-port USB 2.0 hub easily connects you to your peripherals
  • Includes GammaCompMD™ QA software for worry-free calibration and conformance testing to the DICOM standard
  • FDA 510(k) clearance


NEC MD302C6 30” 6MP Color Medical Diagnostic Display with LED Backlighting (FDA 510(k) approved)

The 30” NEC MD302C6, an LED-backlit color diagnostic display, is designed for the demanding needs of healthcare professionals in medical imaging and multi-modality PACS. This 6MP model features an IPS panel to provide precise grayscale reproduction and wide viewing angles. It also has an integrated front sensor which constantly monitors and adjust brightness to maintain the factory DICOM GSDF calibration. In addition to offering a large overall workspace, the NEC MD302C6 can function as a dual 3MP replacement. The NEC MD302C6 includes a three-way ergonomic stand, including height-adjust, swivel and tilt. The display offers both DisplayPort and DVI-D inputs, built-in two-port USB hub, and 16-bit lookup tables (LUTs) with 1024 levels of gray for smooth images and hardware calibration.
The NEC MD302C6 display is one of the best 6MP color diagnostic displays on the market. The quality and design of the display is on par with today’s technologies. The NEC MD302C6 is also backed with a 5 year warranty to give you a piece of mind in terms of quality and functionality of the product. Give us a call to discuss your requirements and so we can also offer you the best solution to your needs.

About NEC Display Solutions

A wholly-owned subsidiary of NEC Corporation, NEC offers a broad selection of desktops, large-screen displays, and multimedia and digital cinema projectors, coupled with expertise in hardware/software consulting, financing, system configuration, maintenance and service/support. The result is a customized, technology-rich deployment optimized specifically to meet your company’s unique needs.
Our business is driven by innovation, advanced technologies, industry-leading service and value-add programs that help increase your productivity and let you see your digital world in a more dynamic way.

Viewable Image Size 30"
ColorType Color
MegaPixels 6MP
Native Resolution 3280 x 2048
Pixel Pitch 0.2mm
Pixels Per Inch 128.9@ native resolution
Brightness (typical) 400cd/m2 calibrated / 800cd/m2 max
Contrast Ratio (typical) 1000:1
Viewing Angle 170° Vert., 170° Hor. (85U/85D/85L/85R) @ CR>10
Response Time 15ms (black to white)
Lookup Table 16-bit
Displayable Colors 1.07 billion colors out of 4.3 trillion or 1024 shades of gray out of 4096 (10-bit DisplayPort input) 16.7 million colors out of 1.05 billion color palette or 256 shades of gray out of 4096 (DVI-D input)
Synchronization Range
Horizontal (Analog/Digital) 31.5-126.5 KHz (Digital only)
Vertical 30-70Hz
Input/Output Terminals
Digital DisplayPort (2), DVI-D (2)
Power Consumption (typical)
On 173.5W
Physical Specifications
Dimensions (WxHxD)
Net (with stand) 27.4 x 19.2 x 11.9 in. / 695.6 x 486.5 x 301.6 mm
Net (without stand) 27.4 x 18.4 x 3.9 in. / 695.6 x 467.1 x 100.0 mm
Net Weight (with stand) 38.8 lbs / 17.6 kg
Net Weight (without stand) 25.1 lbs / 11.4 kg
VESA Hole Configuration Specifications
200 x 100mm
Environmental Conditions
Operating Temperature 41-95°F / 5-35°C
Operating Humidity 20-80%
Operating Altitude -1312 to 9843ft / -400 to 3000m
Storage Temperature -4-140°F / -20-60°C
Storage Humidity 10-85%
Storage Altitude -1312 to 32808ft / -400 to 10000m
Safety Standards
  • C-UL
  • EN 60950-1 and 60601-1
  • WEEE
  • RoHS
  • CCC
  • AAPM-TG18
  • DIN V 6868-57
  • FDA 501(k) cleared
Limited Warranty (parts & labor, including backlight)
5 years, including Advanced Overnight Exchange
Additional Features
  • DICOM GSDF calibrated
  • GammaComp MD QA software
  • Tilt
  • Swivel
  • Height-adjustable stand
Ships With
  • Power cord
  • DVI-DL cable
  • DisplayPort cable
  • USB cable
  • Quick Start / Quick Reference Guide
  • Nvidia Quadro K2000 PCIe video card (MDN-K2000)
  • AMD W5000 DVI PCIe video card (MDA-W5000)
  • Matrox Xenia Pro triple-head video card (MDM-XENPRO)
