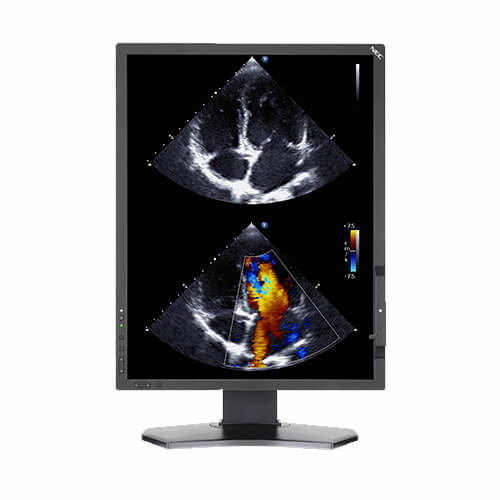

NEC MDC212C2 21.3” Color 2-Megapixel Medical Clinical Display

  • Superior screen performance (1500:1 contrast ratio, 1600 x 1200 native resolution, 440 cd/m², 180 cd/m² calibrated brightness)
  • Out-of-the-box calibration to the DICOM grayscale display function for luminance
  • Factory calibrated Digital Uniformity Control provides accurate imaging across the screen
  • Integrated three-port USB 3.0 hub
  • Quick QA feature for easy DICOM conformance check
  • Includes GammaCompMD™ QA software for worry-free calibration and conformance testing to the DICOM standard
PRICE REQUEST

Description

NEC MDC212C2 21.3” Color 2-Megapixel Medical Clinical Display with Integrated Front Sensor (FDA 510(k) pending)

The 21.3” NEC MDC212C2, a clinical desktop display, is designed for the demanding needs of healthcare professionals in medical imaging and PACS. This 2-megapixel model has an IPS panel to provide precise color or grayscale reproduction and wide viewing angles, and an integrated front sensor which constantly monitor and adjust brightness to maintain the factory DICOM GSDF calibration. The NEC MDC212C2 also includes a human presence sensor that can automatically dim the screen to conserve power, a Quick QA function for checking DICOM conformance without a computer and a built-in calibration scheduler that can perform calibrations without a user or even a computer present. Its stand has four-way ergonomic functionality, including height-adjust, swivel, tilt and pivot. The display offers DisplayPort, DVI-D, and VGA inputs, built-in three-port USB 3.0 hub, 14-bit lookup tables (LUTs) with hardware calibration and 1024 levels of gray for smooth, accurate images.

About NEC Display Solutions

A wholly-owned subsidiary of NEC Corporation, NEC offers a broad selection of desktops, large-screen displays, and multimedia and digital cinema projectors, coupled with expertise in hardware/software consulting, financing, system configuration, maintenance and service/support. The result is a customized, technology-rich deployment optimized specifically to meet your company’s unique needs.
Our business is driven by innovation, advanced technologies, industry-leading service and value-add programs that help increase your productivity and let you see your digital world in a more dynamic way.




Display
Viewable Image Size 21.3"
ColorType Color
MegaPixels 2MP
Native Resolution 1600 x 1200
Pixel Pitch 0.27mm
Pixels Per Inch 94@ native resolution
Brightness (typical) 180 cd/m2 calibrated / 440 cd/m2 max
Contrast Ratio (typical) 1500:1
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Response Time 8ms
Lookup Table 14-bit
Displayable Colors 1.07 billion out of 4.3 trillion (10 bit DisplayPort) / 16.7 million out of 1.05 billion (8-bit)
Sensors
Front
Synchronization Range
Horizontal (Analog/Digital) 31.5-94.0 & 99.5 KHz / 31.5-92.0 and 99.5 KHz
Vertical 50-85 Hz
Input Signal
Video Analog RGB 0.7 Vp-p/75 Ohms
Sync Separate Sync: TTL Level (Positive/Negative); Composite Sync: TTL Level (Positive/Negative)
Connectivity
Input/Output Terminals
Digital DisplayPort, DVI-D, D-sub
Power Consumption (typical)
On 54W
Power Savings Mode 0.3W
Physical Specifications
Dimensions (WxHxD)
Net (with stand) 466.4 x 374.6 - 524.6 x 227.6 / 18.4 x 14.7 - 20.7 x 9.0 in.
Net (without stand) 466.4 x 359.0 x 68.9 / 18.4 x 14.1 x 2.7 in.
Weight
Net Weight (with stand) 17.6 lbs. / 8.0 kg
Net Weight (without stand) 10.6 lbs. / 4.8 kg
VESA Hole Configuration Specifications
100 x 100mm
Environmental Conditions
Operating Temperature 41-95°F / 5-35°C
Operating Humidity 20-80%
Operating Altitude 16404 ft. / 5000m
Storage Temperature 14-140°F / -10-60°C
Storage Humidity 10-85%
Storage Altitude 40,000 ft. / 12,192m
Safety Standards
  • UL60950-1
  • UL60601-1
  • PSB
  • SASO
  • CCC
  • GOST/PCT
  • CE-MDD
  • NOM
  • TUV GM
  • FCC /ICES-003Class B
  • RCM
  • FDA 510(k) pending
  • VCCI class 2
  • RoHS
  • AAPM-TG18
  • WEEE
  • DIN 6868-57
Limited Warranty (parts & labor, including backlight)
5 years, including Advanced Overnight Exchange
Additional Features
  • Factory DICOM GSDF calibrated
  • Digital Uniformity Correction
  • Calibration schedule
  • Pivot
  • Tilt
  • Swivel
  • Height-adjustable stand
Ships With
Power cord, DisplayPort cable, DVI-D cable, USB A to B cable, Setup Manual (on CD)
Accessories
Optional AMD 4GB quad-head video card (MDA-W5100), AMD 2GB quad-head video card (MDA-W4100), AMD 2GB triple-head video card (MDA-W5000), NVIDIA triple-head video card (MDN-K2200), NVIDIA triple-head video card (MDN-K2000), NVIDIA dual-head video card (MDN-Q2000D), AMD dual-head video card (MDA-V5800D), Matrox triple-head video card (MDM-XENPRO), Medical calibration sensor (MDSVSENSOR2), Medical calibration sensor (CC-I1PRO2)
