Optik View SC3181x 31-inch Color Surgical Display

  • 4K Resolution
  • Double Sided AR Impact Protection
  • Expanded Color LUT
  • UL/EN 60601-1 & International Certifications
  • Fan Free
  • Ingress Protection & Disinfection
  • Universal Connectivity
  • Cover Guard
  • QuickConnect Power Management
  • Internal 5V DC
  • Auto Luminance Stabilizer
  • Model: SC3181X

Description

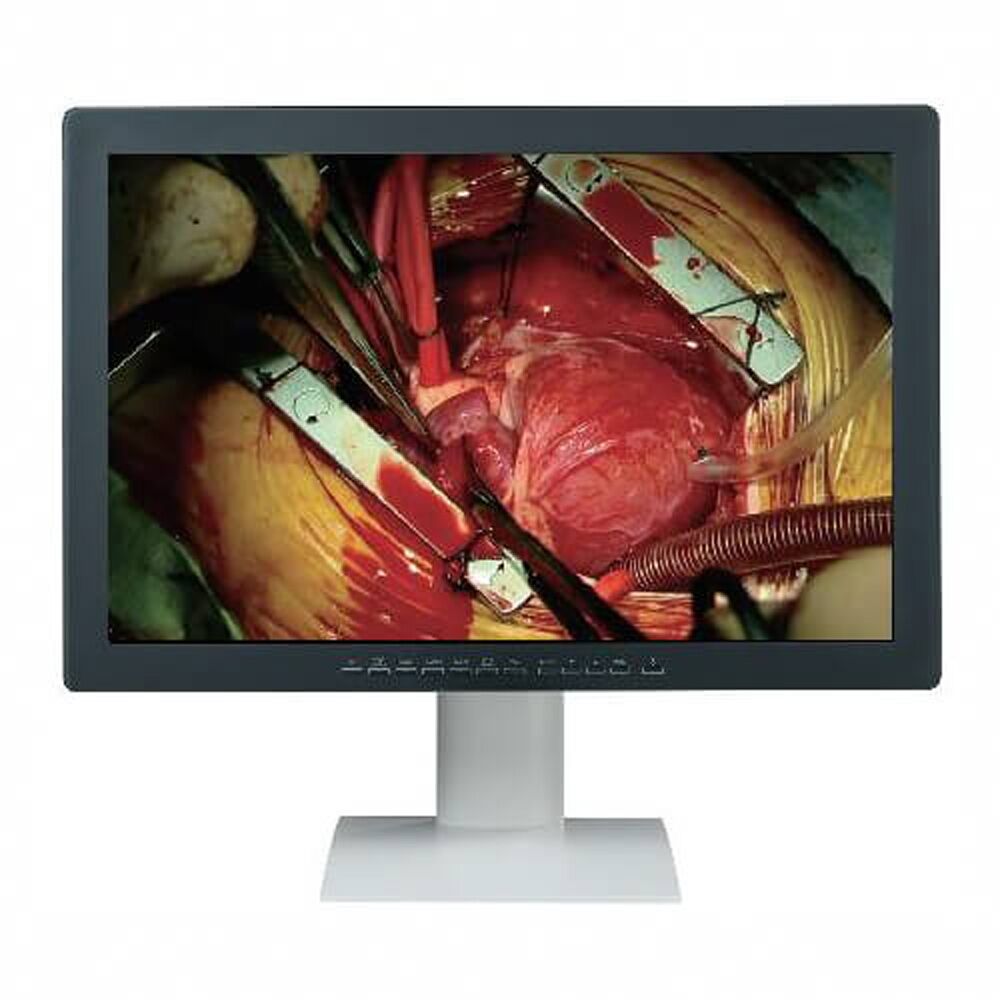

Optik View SC3181x 31-inch Color Surgical Display

Optik View SC3181x and most advanced 31″ 4K endo/surgical monitor. Not only is the SC3181x equipped with latest input standards: HDMI 2.0 and DP1.2 will ensure its compatibility with latest endo camera; it also allows backward compatibility with other current standards such as HDMI 1.4 and DVI Dual Link. Optik View’s color calibration and color mapping technique can assure the most accurate color displayed. It has UL60601-1 and other major international certifications for safety and quality assurance.

Model: SC3181X
Optik View Support

Hiliex proudly presents Optik View medical displays customizable visualization solutions for the most demanding medical environments. Optik View Surgical Displays high definition and 4K endo surgical displays to provide your Customer’s with industry’s highest quality surgical video. Optik View® displays deliver bright, crisp, color accurate visualization designed to enhanced edge delineation, improve depth perception, and increase decision making confidence.

Optik View Diagnostic Displays for Radiology meet the standards of Picture Archiving and Communication Systems (PACS) visualization. Certified to industry standards, this full range of megapixel monochrome and color displays supports interpretation of high quality radiologic images including conventional films, CT, MRI, PET, Mammography, and other medical images stored on a PACS server.

The award winning Linden Group Corp launch of Optik View, a complete line of LCD display monitors designed specifically for the medical industry. TLGC has been serving the computing needs of the leading medical companies; no one is better positioned to understand the demanding requirements of the medical environment. Every monitor they manufacture has earned worldwide medical safety certification, UL, CE, FDA 510K, and performs with a precision and reliability unsurpassed in the industry.

Additionally, our dedicated service and repair center ensures expert maintenance and repairs for all advanced medical imaging monitors, guaranteeing your equipment remains in peak condition for optimal patient care.

Specification

Type IPS
Resolution 3840 (H) x 2160 (V)
Active Screen Size (inch) 31
Display Area (mm) 697.958 (H) x 368.064 (V)
Pixel Pitch (mm) 0.1704 (H) x 0.1704 (V)
Viewing Angle (degree) 178 (H) / 178 (V)
Response time (time) 20 GTG (typ.)
Brightness (cd/m²) 350 (typ.)
Contrast Ratio 1500:1 (typ.)
Color Gamut AdobeRGB 100%
Display Colors 1.073m

Additional information

Manufacturer

Optik View

Model

SC3181x
