The Optik View SC5512 55″ FHD surgical medical display LCD monitor conforms to major international medical certifications for safety and quality assurance while providing crisp, clear 1920×1080 resolution. This 55″ monitor is the precise tool the practitioner needs to make the sharpest analysis and the most reliable diagnosis, while also producing the truest image of an operation in real time. The 55″ monitor also offers multi interfaces like 3G SDI, HDMI, Display Port and BNC inputs enabling not only the latest technology but also providing backwards compatibility so the user will have a consistent, reliable functionality that can adapt to diverse medical environments. IPX1 sealed front with AR glass, along with fan-less, vent-less back cover, makes this the perfect monitor for surgical operating room.

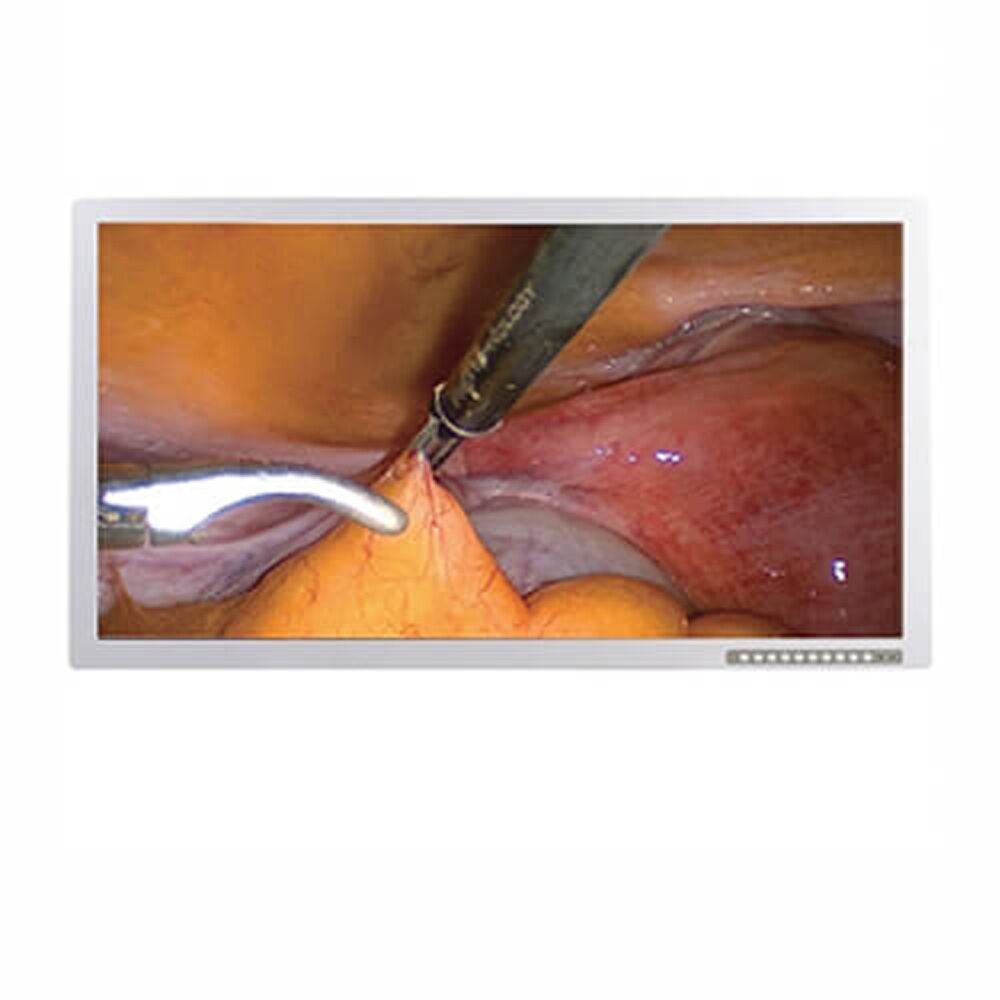

Optik View SC5512 55" Color Surgical Display
Description
Optik View SC5512 55″ Color Surgical Display
Optik View SC5512 is especially designed for operating room and endoscopy.
All Optikview’s medical displays including the SC5512 have a fanless design that can reduce the accumulation of microscopic bacteria or dust inside the display, to ensure that the operating room is clean and dust- free.
Equipment used in the operating room must meet specific and rigorous health requirements. The front panel of Optikview’s display meets the specification of IPX1 enclosure design and includes anti-reflective protective glass. Not only is it waterproof and dustproof, but it can also be easily cleaned and disinfected, so that the Optikview’s display can work reliably in any medical environment.
Users can fine-tune the color settings to suit their individual perception and personal preference. The red, green, blue, yellow, magenta or cyan colors can be individually adjusted to deliver bright, sharply delineated and highly saturated colors.
All Optikview Color Medical monitors feature the multi-diagnostic mode which allows physicians to make the most precise and accurate diagnoses. The preset modes include: User Mode, DICOM Mode, Blue Light Mode (BL Mode), White Light Mode (CL mode), and Light-Box Mode.
Not only are Optikview’s displays high-performance devices possessing excellent efficiency, they also passed the 60601-1 Medical Safety Standards as well as the relevant Electromagnetic Compatibility (EMC) Standards.
| Model Name | SC5512 | |
| LCD Panel | Type | TFT color, active matrix (super MVA technology) |
| Native Resolution | 1920 x 1080 | |
| Active Screen Size | 54.6 inches diagonal | |
| Display Area | 1209.6 (H) x 680.4 (V) mm | |
| Pixel Pitch | 0.21 mm x 0.63 mm | |
| Viewing Angle | 176 degrees (H) / 176 degrees (V) | |
| Response Time | 6.5 gray to gray (average) | |
| Visual Characteristics | Brightness | 450 cd/m2 (Max) |
| Contrast Ratio | 4000:1 (Max) | |
| Display Colors | 10 bit colors | |
| Analog / Digital Input | DVI | DVI-I 29 pin x 1 (DVI-A/DVI-D) |
| HDMI & Display Port | HDMI x1 ; DP x1 | |
| VGA | D-Sub 15-pin mini x 1 (RGB Analog) | |
| Composite | BNC x1 | |
| S-Video | 4-pin Mini-Din x1 | |
| RGBS/YPbPr | BNC x5 | |
| 3G-SDI | BNC x1 | |
| Analog / Digital Output | RGBS/YPbPr | BNC x3 |
| 3G-SDI | BNC x1 | |
| Control Input | Serial Remote | RS-232, D-Sub 9-pin mini x 2 (1 x IN, 1 x OUT) |
| Features | Multi-Diagnostic Mode (MDM)Selection | DICOM, DICOM-CLEAR, DICOM-BLUE, LIGHT BOX,TEXT, USER |
| Luminance Stabilization | Embedded auto luminance stabilizer (ALS) | |
| English, Chinese, French, German, Italian,Spanish,Japanese | ||
| OSD Languages | ||
| Plug and Play | Supports VESA DDC2B and DDC/CI | |
| Power Requirements | Power Supply | AC 100-240V, 50 ~ 60 Hz |
| Power Consumption | Less than 115 Watts | |
| Power Save | Less than 1 Watts | |
| Physical Characteristics | Color | White or Black |
| Protection Shield | AR protective glass | |
| Waterproofing Level | IPX1 | |
| Dimensions (W x H x D) | With stand: 1282 x 843 x 299.15 mm | |
| Without stand: 1282 x 758 x 69.5 mm | ||
| Weight | With stand: 53 kg | |
| Without stand: 48 kg | ||
| Mounting | 400 x 200 mm VESA mounting standard | |
| Environmental | Operating Temperature | 0°C to + 35°C (32°F to 95°F) |
| Operating Humidity | 30% to 75% | |
| Others | Certifications and Compliances | cTÜVus (ANSI/AAMI ES 60601-1, CAN/CSA C22.2No. 60601-1), CB (IEC 60601-1, IEC 60950-1), TUV/RH (EN 60601-1), CE, FCC, BSMI, CCC, VCCI, RoHS,WEEE |
| Supplied Accessories | AC power cord, DVI-D to DVI-D cable, S-Videocable, remote control unit, user’s manual (CD-ROM),warranty card |
