PaceTech VITALMAX 4000 Medical Patient Monitor

  • Touch Screen Display
  • Priority Alarms
  • Drug Calculations
  • OXY CRG
  • Patient ID Input
  • Ethernet / RS232
  • Tabular Trends or Graphical Trends
  • Discharge button
  • Adult, Pediatric, & Neonatal Settings
  • Rechargeable Battery
  • Selectable Waveforms
  • AC / DC Operation
  • Recall Patient History
PRICE REQUEST
SKU: Vitalmax 4000 Categories: ,

Description

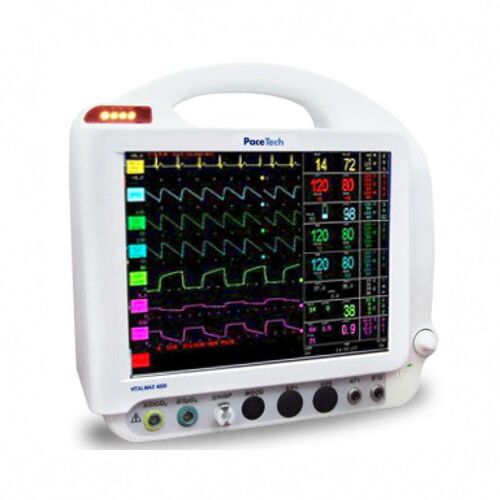

PaceTech VITALMAX 4000 Medical Patient Monitor

The PaceTech VITALMAX 4000 patient monitor offers standard monitoring functions, including ECG (EKG / ECG with option of 3 or 5 lead cable), NIBP – blood pressure, SpO2 with plethysmography and pulse strength bar, temperature, impedance respiration, and ST segment analysis / arrhythmia analysis. It features a 12.1-inch high definition LCD touch screen which is caregiver friendly with large fonts and fully configurable to the needs of individual care settings


Warning: call_user_func() expects parameter 1 to be a valid callback, function 'download_file_force' not found or invalid function name in /home/hiliex.com/public_html/wp-content/plugins/woocommerce/templates/single-product/tabs/tabs.php on line 47

SPECIFICATION

Features

Standard Features of VITALMAX 4000

Touch Screen Display
The large 12.1 LCD, high definition touch screen is fully configurable to the needs of your care setting.

Priority Alarms

Drug Calculations

OXY CRG

Patient ID Input

Ethernet / RS232

Tabular Trends or Graphical Trends

Discharge button

Adult, Pediatric, & Neonatal Settings

Rechargeable Battery

Selectable Waveforms

AC / DC Operation

Recall Patient History

Optional Functions of VITALMAX 4000
End Tidal CO2

The external module for End-tidal CO2 monitors the patient’s continuous carbon monoxide levels before a breath compared to the levels after. States are increasingly mandating that during any procedure including sedation, conscious sedation, caregivers must monitor end-tidal CO2.

All VITALMAX monitors have an end-tidal CO2 port connector standard on the front panel. Either include the module with your purchase or easily upgrade at a later date.

The VITALMAX uses a reusable Nafion tube line that absorbs moisture in the patient’s breath (dehumidification), eliminating the need for a water trap and risks of cross contamination.

2 Invasive Pressures (IBP)

Anesthetic Agents with Agents ID and multigases (N2O, CO2, and O2)

HTS 820 (from LSI, USA) Central Station

Built-in 3-Channel Thermal Printer

Temperature
