- Intuitive & Easy To Use
- Auto-sensing detects I/O & Video Resolution “ automatically ”
- Wide range of recording resolutions
- 640x 480 ~ 1920x 1080 (30Hz/29.97Hz) : Undiluted recoding resolution
- 1920x 1200 (Resize to 1728x 1080) : Supported Input resolution
- Multiple HD & SD inputs/outputs (SDI, DVI-D, S-Video and Composite)
- Simultaneous recording to multiple media (up to 2 External USB drives & 1 Internal HD)
- Networking (FTP & CIFS) RJ45 10/100/1000 Ethernet
- Remote control, Foot-switch, Card/Barcode reader and Keyboard (Optional)
- Compliance with Medical Standards
- Designed for the mission critical OR environment
- Fail-safe recording feature w/ the Internal Hard Drive for redundant data backup
- S.M.A.R.T. monitors/ reports Internal Hard Drive health (Self-Monitoring, Analysis and Reporting Technology)
- Safe auto-shutdown in case of power interruption
- Fluid resistant front panel
TEAC UR-4MD High-Definition Medical Imaging Recorder
PRICE REQUEST
Description

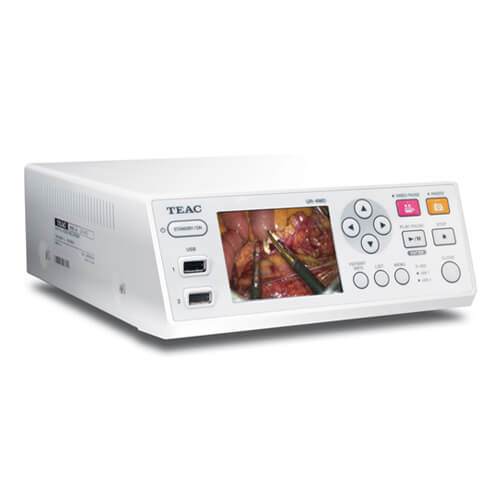

TEAC UR-4MD High-Definition Medical Imaging Recorder
TEAC UR-4MD (UR4MD) is TEAC’s latest high-definition medical video recorder designed for quick set up and ease of use, yet includes a robust list of features and capabilities. With auto sensing video connections and automatic video resolution detection, set up is quick and easy. The TEAC UR-4MD (UR4MD) front control panel allows users to intuitively record videos and photos in crystal clear HD. A built in hard drive is included for reliable recording, data back-up and users can also simultaneously record to USB memory and USB hard drives to archive, share and play back on other devices and locations. TEAC UR-4MD (UR4MD) is also Network capable.
About TEAC
The guiding principle of TEAC is to enrich our society through our innovative products. TEAC is highly regarded for its video, image and sound recording technologies, and now introduces medical imaging recorders for microscopic surgery. We have been contributing to society’s use of analog and digital recording since 1953, helping customers and partners with the technologies to record and play back sound, still images, and video images. We have been providing our Products to the healthcare industry well over 2 decades. Examination images and procedure images are recently used to explain, educate, and present, therefore it is essential that medical video are currently recorded and played at medical sites. We focus on the reliability and the convenience of use about “a function of record” and aiming to show recorded images for explanation and education clearly regarding “a function of play” to satisfy the needs of medical sites, then we strive research and development every day.
General
| Recordable Devices | USB Flash Drive | |
| USB Hard Drive | ||
| Internal Hard Drive (500GB) | ||
| Display | 3.5 inch LCD | |
| Power supply | AC 100V - 240V 50/60Hz | |
| Operating temperature | 41 to 104 deg F (5 to 40 deg C) | |
| Storage temperature | -4 to 140 deg F (-20 to 60 deg C) | |
| Operating humidity | 5 to 80% (No condensation) | |
| Dimention (W x D x H) | Approx. 8 1/4 x 9 1/4 x 3 3/8 in ( 210.5 x 235 x 88.5 mm) | |
| Weight | Approx. 5.7 lbs. (2.6 kg) | |
| Standards | Safety | IEC60601-1, CSA60601-1, EN60601-1, CE |
| EMC | IEC60601-1-2, EN60601-1-2, ICES-003, VCCI Class B, FCC Class B | |
| Certifications | CSA NRTL | |
| Accessories(Optional) | Remote control unit, Foot-switch, Keyboard, Barcode / Card Reader | |
Recording Format
| Still image | Jpeg | |
| Video | MPEG-4 AVC/H.264 | |
Input/Output
| Input for Video | SDI (BNC) x1 | 3G/HD-SDI: 1080p / 1080i / 720p SD-SDI: 480i / 576i |
| DVI (Single Link) x1 | 640 x 480 to 1920 x 1200 | |
| S-Video x1 | NTSC, PAL | |
| Composite (BNC) x1 | NTSC, PAL | |
| Input for Audio | SDI (BNC) x1 | ∗SDI video input terminal use in common. |
| Stereo mini jack x2 | LINE, MIC | |
| Output for Video | SDI (BNC) x1 | 3G/HD-SDI: 1080p / 1080i / 720p SD-SDI: 480i / 576i |
| DVI (Single Link) x1 | 640 x 480 to 1920 x 1200 | |
| S-Video x1 | NTSC, PAL | |
| Composite (BNC) x1 | NTSC, PAL | |
| 3G/HD/SD-SDI Thru x1 | 3G/HD-SDI: 1080p / 1080i / 720p SD-SDI: 480i / 576i | |
| Output for Audio | SDI (BNC) x1 | ∗SDI video output terminal use in common. |
| Stereo mini jack x1 | LINE | |
| Other Interfaces | RJ-45 (10BASE-T / 100BASE-TX /1000BASE-T) x1 | |
| USB2.0 Type A x3 | 2 front connectors for Recordable Devices | |
| 1 rear connector for Optional Accessories | ||
| USB2.0 Type B x1 | 1 rear connector for accessing the internal Hard Drive (on UR-4MD) | |
| Stereo mini jack x3 | for external trigger | |
Approximate Recording Times for a 500GB Hard Drive
| High-Definition 1920 x 1080 | ||
| 12Mbps | 18Mbps | 24Mbps |
| 90 hours | 60 hours | 45 hours |
| Standard-Definition 640 x 480 | ||
| 5Mbps | 8Mbps | 10Mbps |
| 180 hours | 135 hours | 100 hours |
