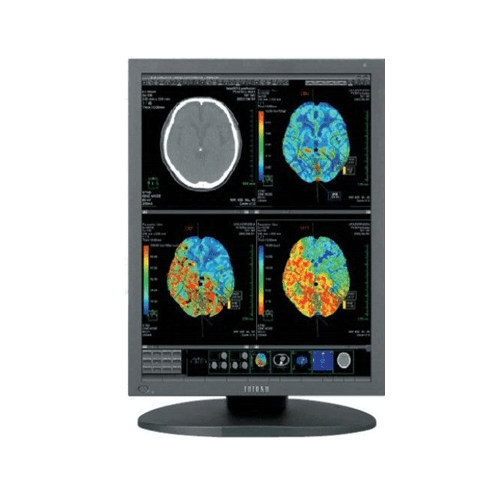

Totoku CCL254i2 2MP 21.3 Color Diagnostic Display

High-Luminance 2MP color display for diagnostic imaging
realizes advanced grayscale display.

With high luminance and high contrast, and an integrated color calibration function, our CCL254i2 delivers highly accurate color reproduction faithful to the DICOM GSDF. The CCL254i2 includes a luminance compensation feature for edge to edge consistency, is fully configurable for multi-display applications, and comes standard with hardware-based pivot functionality for fast image drawing in portrait orientation.

PRICE REQUEST

Description

Totoku CCL254i2 2MP 21.3 Color Diagnostic Display

New luminance stabilizing system λ-Sentinel II

λ-Sentinel II consists of a luminance sensor and luminance control circuit. The luminance sensor, integrated into the front bezel, consistently monitors and accurately stabilizes luminance on the screen by rapidly communicating with the backlight sensor.
In addition, a build-in luminance sensor provided with i2 models enables even simpler calibration without attaching the calibration sensor.



Remote grayscale check and remote calibration functions

Totoku CCL254i2 Conformance testing to DICOM GSDF and calibration can be remotely accomplished. These features minimize the burden on display administrators.

* An optional PM Medivisor software is required.


Luminance equalizer λ-Uniformity Congruence

Is built in to achieve highly accurate luminance uniformity across the screen. Luminance unevenness is minimized in the final tune-up prior to shipping.
* Images shown are for illustrative purposes only.

High luminance, high quality LCD panel

Totoku CCL254i2 950 cd/m² and contrast ratio of 900:1. Due to its wide, dynamic range, high quality grayscale can also be achieved on this color display, providing versatility for multi-modality workstations.

Accurate color and grayscale reproduction compliant with DICOM Part 14

By calibrating color temperature, luminance, and gamma characteristics, reproduction of colors faithful to the original and smooth display of grayscale are possible.



Built-in 16-bit LUT (look up table) for accurate grayscale reproduction

The built-in LUT selects the most appropriate 256 shades of gray (8bit) out of 16bit shades to realize finer and smoother grayscale.



Hardware pivot function for fast drawing in portrait on landscape orientation

Totoku CCL254i2 Stress-free operation is made possible by fast drawing speed for on-the-fly change to portrait



OSD Information Display

Such information as the display model, total operating time, actual measurement of luminance, and calibration settings can be checked on screen.



LED indicator to inform of current status

A glance at the LED indicator tells you the display’s current operating status.



Enhanced convenience with utility software

Advanced power saving*

The backlight dims as the screensaver starts, reducing power consumption and preventing unnecessary deterioration of the backlight.
* This feature may not be available, depending on the specifications of the graphics card used.

Gamma check

18 points of luminance values are measured and plotted into a graph.

Ambient light and display luminance measurement

The built-in sensors measure display luminance and ambient illuminance.

Worldwide medical safety standards

Totoku CCL254i2  display is certified under various medical safety standards that are much more demanding than those for general-purpose IT equipment.

About Totoku

TOTOKU is a leading worldwide manufacturer of medical image displays and touch panel displays. Its high-end, high-cost-performance medical image displays and touch panels are backed by its unique technology and know-how through decades of solid experience in the industry since 1972.

TOTOKU has supplied computer displays for factories, broadcast stations, workstations, and other applications, and has earned a high marks for its product reliability under harsh conditions and post-installation support, not to mention specialized technologies required for respective fields.

TOTOKU continues to provide high-performance displays for specialized fields by developing leading-edge technologies, while providing consistently optimal customer service.
