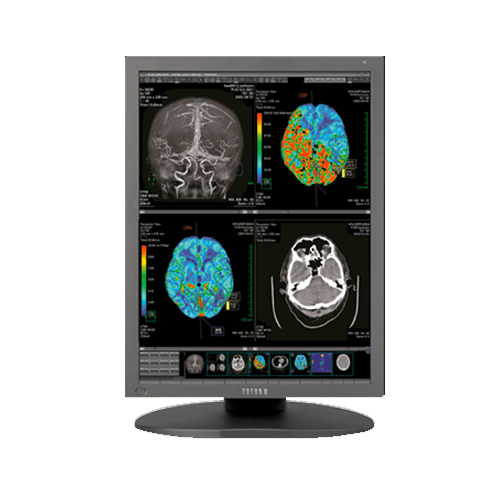

Totoku CCL258i2 2MP 21.3" Color Diagnostic Display
High-luminance and high-contrast 2MP color display for
multi-modality medical imaging
High bright color display CCL258i2 is an ideal system for diagnostic viewing in multi-modality environment. CCL258i2 is an optimal solution where doctors need to view both grayscale and color images, and effectively covers multiple applications like PACS, CAD, PET and nuclear medicine.
Thanks to the new energy saving LED backlight LCD, CCL258i2 provides more stability in image quality for a long period of time.
Totoku CCL258i2 2MP 21.3″ Color Diagnostic Display
High luminance, high contrast LCD panel
With the maximum luminance of 900cd/m² and contrast ratio of 1400:1, the Totoku CCL258i2 has further improved image quality ever. Due to its wide dynamic range of brightness, grayscale capability is also enhanced on this color display, providing versatility for multi-modality workstations.
New LED backlight system provides more stability in images as well as energy saving
While Totoku CCL258i2 with the new LED backlight lasts much longer in optimal conditions, it has energy efficiency to reduce the power consumption by 30% compared to existing models.
DICOM conformance self-testing function
DICOM conformance test can be easily performed as an OSD function of the display.
Luminance stabilizing system λ-Sentinel
λ-Sentinel consists of a luminance sensor and luminance control circuit. The luminance sensor, integrated into the front bezel, consistently monitors and accurately stabilizes luminance on the screen by rapidly communicating with the backlight sensor.
In addition, a build-in luminance sensor provided with i2 models enables even simpler calibration without attaching the calibration sensor.
Remote grayscale check and remote calibration functions
Conformance testing to DICOM GSDF and calibration can be remotely accomplished. These features minimize the burden on display administrators.
* An optional PM Medivisor software is required.
Next Generation Interface – DisplayPort
In addition to a DVI port, each i2 series display includes a new digital display interface, “DisplayPort”. When using the DisplayPort, up to 1024 or 10-bit shades of gray are simultaneously displayed. This enables smooth and accurate display of subtle differences in shades of gray. Additionally, 1073.74 million colors (10-bit in each R, G, B) are simultaneously displayed on our color model.
*Customized viewer software and graphics card are required to
display 10-bit images.
Special AR Coating for Film-like Black and Improved Sharpness
TOTOKU’s new special AR coating technology addresses properties of focus, noise reduction, contrast, and viewing angle achieving film-like black and accurate reproduction of images.
Is built in to achieve highly accurate luminance and color uniformity across the screen. Luminance and color unevenness are minimized in the final tune-up prior to shipping.
* Images shown are for illustrative purposes only.
Accurate color and grayscale reproduction compliant with DICOM Part 14
By calibrating color temperature, luminance, and gamma characteristics, reproduction of colors faithful to the original and smooth display of grayscale are possible.
Built-in 16-bit LUT (look up table) for accurate grayscale reproduction
The Totoku CCL258i2 built-in LUT selects the most appropriate 256 shades of gray (8bit) out of 16bit shades to realize finer and smoother grayscale.
Hardware pivot function for fast drawing in portrait on landscape orientation
Stress-free operation is made possible by fast drawing speed for on-the-fly change to portrait
User-selectable display configurations
Luminance/gamma settings are selectable from three preset levels according to the needs. User-selectable configurations enable stress free operations without specialized settings.
OSD Information Display
At your fingertips, you can view current display status and information, including actual measurement of luminance, calibration settings, total operating hours as well as model name and serial number.
LED indicator to inform of current status
A glance at the LED indicator tells you the display’s current operating status.
Display Quality Control
The Medivisor Series is a series of software to collectively support display quality control from acceptance and periodic constancy testing to constant monitoring, to calibration.
Ecological Technology – Considering the Global Environment
Totoku is committed to providing high performance display systems that are ecological and environmentally friendly. We strive to create green IT initiatives and be a part of building a clean energy future. In eort to achieve this, we have incorporated new power-saving features in our i2 series displays.
Our advanced power saving function dims the backlight as the screensaver activates, thereby reducing power consumption and preventing unnecessary backlight deterioration, resulting in a longer lasting display. Our internal power supply system includes a newly improved power save mode, which allows the display to enter standby mode with less than 2 watts of energy consumption.
*Optional software Calibration Kit is required to set up the Advanced Power Savings feature.
Enhanced convenience with utility software
Advanced power saving*
The Totoku CCL258i2 backlight dims as the screensaver starts, reducing power consumption and preventing unnecessary deterioration of the backlight.
* This feature may not be available, depending on the specifications of the graphics card used.
18 points of luminance values are measured and plotted into a graph.
*Optional software Calibration Kit is required to set up the Advanced Power Savings feature and Gamma check feature.
Worldwide medical safety standards
TOTOKU medical image displays comply with various stringent worldwide medical standards. They ensure safety and reliability required for use in medical facilities.
TOTOKU is a leading worldwide manufacturer of medical image displays and touch panel displays. Its high-end, high-cost-performance medical image displays and touch panels are backed by its unique technology and know-how through decades of solid experience in the industry since 1972.
TOTOKU has supplied computer displays for factories, broadcast stations, workstations, and other applications, and has earned a high marks for its product reliability under harsh conditions and post-installation support, not to mention specialized technologies required for respective fields.
TOTOKU continues to provide high-performance displays for specialized fields by developing leading-edge technologies, while providing consistently optimal customer service.
