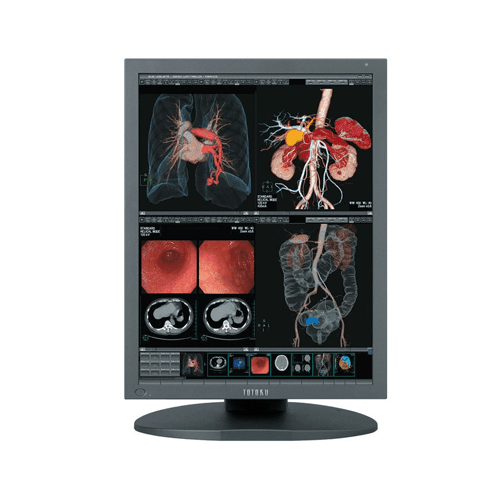

Totoku CCL358i2 3MP 21.3" color display

High-luminance and high-contrast 3MP color display for
multi-modality medical imaging

High bright color display CCL358i2 is an ideal system for diagnostic viewing in multi-modality environment. CCL358i2 is an optimal solution where doctors need to view both grayscale and color images, and effectively covers multiple applications like PACS, CAD, PET and nuclear medicine.
Thanks to the new energy saving LED backlight LCD, CCL358i2 provides more stability in image quality for a long period of time.

PRICE REQUEST

Description

Totoku CCL358i2 3MP 21.3″ color display

High luminance, high contrast LCD panel

With the maximum luminance of 800cd/m² and contrast ratio of 1400:1, the Totoku CCL358i2  has further improved image quality ever.
Due to its wide dynamic range of brightness, grayscale capability is also enhanced on this color display, providing versatility for multi-modality workstations.

New LED backlight system provides more stability in images as well as energy saving

While Totoku CCL358i2  with the new LED backligh lasts much longer in optimal conditions, it has energy efficiency ot reduce the power consumption by 30% compared to existing models.

DICOM Conformance Testing performable

DICOM conformance test can be easily performed as an OSD function of the display.

新開発の輝度安定化システム(λ-Sentinel II)を搭載Luminance stabilizing system λ-Sentinel

λ-Sentinel consists of a luminance sensor and a luminance control circuit. The luminance sensor in integrated into the front bezel, directly against the screen, and constantly monitors and accurately stabilizes luminance on the screen surface by sending feedback instantaneously to the control circuit.

Ambient light sensorAn ambient light sensor is built-in so that calibration appropriate for the effects of ambient luminance is carried out.
Luminance sensorThe luminance sensor attached in front of the screen constantly monitors and accurately stabilizes luminance on the screen surface by sending feedback to the control circuit.

  Remote grayscale check and remote calibration functionsRemote grayscale check and remote calibration functions

Conformance testing to DICOM GSDF and calibration can be remotely accomplished. These features minimize the burden on display administrators.

* An optional PM Medivisor software is required.


Next Generation Interface - DisplayPortNext Generation Interface – DisplayPort

In addition to a DVI port, each i2 series display includes a new digital display interface, “DisplayPort”. When using the DisplayPort, up to 1024 or 10-bit shades of gray are simultaneously displayed. This enables smooth and accurate display of subtle differences in shades of gray. Additionally, 1073.74 million colors (10-bit in each R, G, B) are simultaneously displayed on our color model.
*Customized viewer software and graphics card are required to
display 10-bit images.

Special AR CoatingSpecial AR Coating for Film-like Black and Improved Sharpness

TOTOKU’s new special AR coating technology addresses properties of focus, noise reduction, contrast, and viewing angle achieving film-like black and accurate reproduction of images.

Uniformity equalizerUniformity equalizer

Is built in to achieve highly accurate luminance and color uniformity across the screen. Luminance and color unevenness are minimized in the final tune-up prior to shipping.
* Images shown are for illustrative purposes only.

MedivisorAccurate color and grayscale reproduction compliant with DICOM Part 14

By calibrating color temperature, luminance, and gamma characteristics, reproduction of colors faithful to the original and smooth display of grayscale are possible.



Built-in 16bit LUT (Look-up Table) Built-in 16-bit LUT (look up table) for accurate grayscale reproduction

The built-in LUT selects the most appropriate 256 shades of gray (8bit) out of 16bit shades to realize finer and smoother grayscale.



Hardware pivot function for fast drawing in portrait on landscape orientation

Stress-free operation is made possible by fast drawing speed for on-the-fly change to portrait.



OSD Information DisplayUser-selectable display configurations

Luminance/gamma settings are selectable from three preset levels according to the needs. User-selectable configurations enable stress free operations without specialized settings.

 Dual Link input

Provides smooth display of motion pictures.

OSDOSD Information Display

At your fingertips, you can view current display status and information, including actual measurement of luminance, calibration settings, total operating hours as well as model name and serial number.

indicator

LED indicator to inform of current status

A glance at the  Totoku CCL358i2 LED indicator tells you the display’s current operating status.



Enhanced convenience with utility software

Advanced power saving*

The backlight dims as the screensaver starts, reducing power consumption and preventing unnecessary deterioration of the backlight.
* This feature may not be available, depending on the specifications of the graphics card used.

Gamma check

18 points of luminance values are measured and plotted into a graph.

*Optional software Calibration Kit is required to set up the Advanced Power Savings feature and Gamma check feature.

Worldwide medical safety standards

TOTOKU medical image displays comply with various stringent worldwide medical standards. They ensure safety and reliability required for use in medical facilities.;

Worldwide medical safety standards

About Totoku

TOTOKU is a leading worldwide manufacturer of medical image displays and touch panel displays. Its high-end, high-cost-performance medical image displays and touch panels are backed by its unique technology and know-how through decades of solid experience in the industry since 1972.

TOTOKU has supplied computer displays for factories, broadcast stations, workstations, and other applications, and has earned a high marks for its product reliability under harsh conditions and post-installation support, not to mention specialized technologies required for respective fields.

TOTOKU continues to provide high-performance displays for specialized fields by developing leading-edge technologies, while providing consistently optimal customer service.
