WIDE MX50N 5MP Diagnostic Monochrome Display

  • 14-bits Grayscales Look-Up Table for Precise Expression
  • Built-in IQ Sensor® II for DICOM Calibration
  • Luminance Uniformity Control (LUC)
  • Digital Ambient Control (DAC)
  • DisplayPort & DVI

Description

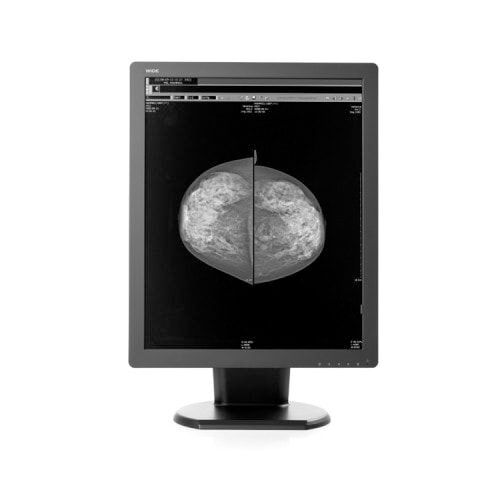

Wide MX50n 5MP Diagnostic Mammo Tomosynthesis Monochrome Display

The Wide MX50n 5MP Grayscale Mammography Diagnostic Display has a high bright 1200 cd/m² display, a resolution of 2048 x 2560, 14-Bit grayscale and a 21.3 inch display for diagnostic imaging. The Wide MX50n has a built-in DICOM calibration sensor, Luminance Uniformity Control and a self-diagnosis functionality. The Wide MX50n is energy efficient because it only consumes 45 watts.

About Wide Displays

At WIDE, We are making our medical imaging monitors smarter through innovations that ensure maximum precision.WIDE’s foresight into the demands of the digital Mammography, PACS and Clinical markets have brought the medical community a wide range of displays specifically designed for each imaging workspace within your enterprise.As a result, WIDE’s Technological innovation and outstanding performance have made WIDE a leader in Medical Imaging. The neX-Series, also called the X-Series, self-calibrating display line furthers WIDE’s reputation as an industry leader in technology and design. These environmentally friendly and ergonomically designed displays exceed industry standards with the new on-board IQ SensorTM bundled with a network calibration package for full automatic calibration, conformance, alerting and reporting. The X-Series line of self-calibrating displays are designed with the future of medical imaging in mind, featuring ultra high brightness and contrast ratios and industry leading luminance uniformity performance.

Specifications

Model MX50N
LCD Panel TFT AMLCD IPS Grayscale
Native Resolution 2048(H) x 2560(V)
Pixel Pitch 0.165mm x 0.165mm
Active Display Area 422.4mm x 337.92mm (16.6” x 13.3”)
Active Screen Size (Diagonal) 540.9mm (21.3”)
Viewing Angle (Typ) 178º, 178º at 10:1 Contrast Ratio
Brightness Max. (Typ) 3000cd/m²
Brightness Calibrated (Typ) 500cd/m²
Contrast Ratio (Typ) 2000:1
Bit Rate for Look-Up Table 14-bit
Digital Video Input DVI-I, DisplayPort
Display Communication DDC2B (VESA Standard Compliance)
Universal Serial Bus (USB) 1 up and 3 down-streams
Power Supply AC Input: 100-240Volt±10% / 60Hz/50Hz±3Hz | DC Output: +24V
Built-in Sensors IQ Sensor III®, SBC, DAC
Luminance Uniformity Control (LUC) Yes
Display Adjustments Menu, Enter, Down, Up, Lamp, Power
OSD Languages English, German, French, Spanish, Italian, Russian, Japanese, Chinese, Korean
LED Light (PrivateLite®) Yes
Power Consumption Max: 75W, Power Save: 2W
Tilt/Swivel/Height Adjustments -3º,+15º/±20º/110mm
Portrait/Landscape Rotation 90º (Counter clockwise)
Mounting Hole VESA Standard (100mm x 100mm)
Weight 10.7Kg (23.59lb) with Stand
Dimension 390.3mm(W) x 520.1mm(H) x 248.8mm(D)
Operational Temperature 0ºC to 40ºC (32ºF to 104ºF)
Operational Humidity 8% to 80%
Storage Temperature -20ºC to 60ºC (-4ºF to 140ºF)
Certifications and Standards ANSI/AAMI ES 60601-1, EN60601-1, IEC60601-1, CE, VCCI, KC, C-Tick, FCC
Options Protective Glass

Additional information

Manufacturer

WIDE

Model

MX50N

Product Tags

MX50N, WIDE MX50N
