- All-in-one high-performance medical panel computer with 5th generation Intel® Core™ i7 processor
- 23.8″ Full HD display with optically bonded PCAP multi-touch touchscreen and anti-glare coated safety glass for unsurpassed visualization capabilities
- Fully sealed aluminium housing and fanless design for high hygienic standards with IP65 rated fluid protection
- Versatile I/O interfaces including galvanically isolated options
ADLINK MLC 5-23 Medical Display Computer
PRICE REQUEST
Description

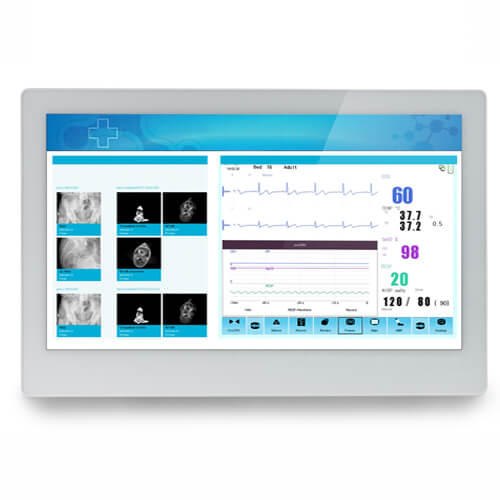

ADLINK MLC 5-23 Medical Display Computer
The ADLINK MLC 5-23 medical display computer is equipped with the 5th generation Intel® Core™ i7 processor, delivering outstanding computing performance to enable easily manage and integrate images from PACS , EHR and other clinical data systems. The ADLINK MLC 5-23 offers a 23.8 projected capacitive touchscreen with anti-glare coating for accurate image viewing and optical bonding to prevent condensation, reduce the reflection of light and increase the durability. Using multi touch gesture control is supported, even when wearing protective gloves. The ADLINK MLC 5-23 medical display computer is with IP65 rated fully sealed aluminum housing protects against dust and liquid intrusion to enable patient monitoring in operating theaters, ICUs or surgical intervention rooms, as well as allowing the use of all common disinfectants and cleaning agents.
Patient Data Management and Integration in ORThe ADLINK MLC 5 is designed for digitally integrated operating rooms in order to easily enable access to PACS images, EHRS and other relevant patient data. The MLC medical panel computer allows surgeons to manage the patient?s vital parameters and other critical information during surgery, and lets them conveniently view scans and surgical images. The MLC 5 is medically compliant medical panel computer ideally used to simplify surgical patient data monitoring with superior graphic processing capabilities. |
 |
Why MLC 5
|
|
Patient Care in ICUThe ADLINK MLC 5 is designed for use in intensive care units to monitor infusion pump status and history, supervise patient physical status, file clinical records and integrate them into other intensive care systems. User-friendly function keys on the front panel allow ICU nurses to easily adjust medical front panel computer settings to facilitate patient data management, even in dark environments. |
 |
Why MLC 5
|
|
About ADLINK
| Model Name | MLC 5-21/23 | |
| Description | 21.5" or 23.8" medical panel computer | |
| Computing System | CPU | Quad-core Intel® Core™ i7- 5700EQ processor 2.6 GHz |
| Chipset | Intel® QM87 | |
| Graphics | Intel® HD Graphics 5600 | |
| Memory | Up to 16 GB DDR3L 1600MHz | |
| Display Characteristics | Size | 21.5"/23.8" (16:9) |
| Resolution | 1920x1080 | |
| Max. Colors | 16.7 million colors | |
| Viewing Angle | 21.5":176°/176° ; 23.8": 178°/178° | |
| Luminance (cd/m²) | 250 | |
| Expansion Slot | PCIe | 1x PCIe x16 |
| Storage | SSD | 128GB |
| HDD | 500GB (optional) | |
| I/O Ports | Serial Port | 2x RS-232, 4kV isolated (up to 4x optional) |
| USB Port | 2x USB 2.0(4kV isolated optional), 2x USB 3.0 | |
| Display Port | 2x DisplayPort, max. res. 3840x2160 | |
| LAN | 2x GbE, 4kV isolated | |
| Audio | Line-out / Mic-in | |
| User Interfaces | User Interface 5-key membrane keypad; available functions: - Standby ON/OFF - Panel brightness increase - Panel brightness decrease - Touch cleaning enable/disable - Call additional function (customizable) | |
| Power | AC/DC model | 100-240 V AC |
| Environmental | Operating | 0°C to +35°C / 10% to 90% rel. humidity (non-condensing) |
| Storage | -10°C to +60°C / 5% to 95% rel. humidity (non-condensing) | |
| Ingress Rating | IP65 protection from 5-sides (6 sides with cable cover attached) | |
| Mechanical | Dimensions (WxHxD) | 21.5":532x346x83 mm / 23.8":583x374x83 mm |
| Weight | 21.5":9.5 kg / 23.8":10.8 kg | |
| Housing | Aluminium powder coated | |
| Mounting | VESA 100 | |
| Certificates | IEC 60601-1:2012 EN 60601-1:2006/A11:2011 IEC 60601-1-2:2007/EN 60601-1-2:2007 EN 55022:2010 + AC:2011 EN 61000-3-2:2006 + A1:2009 + A2:2009 EN 61000-3-3:2013 EN 55024:2010 RoHS compliant | |
