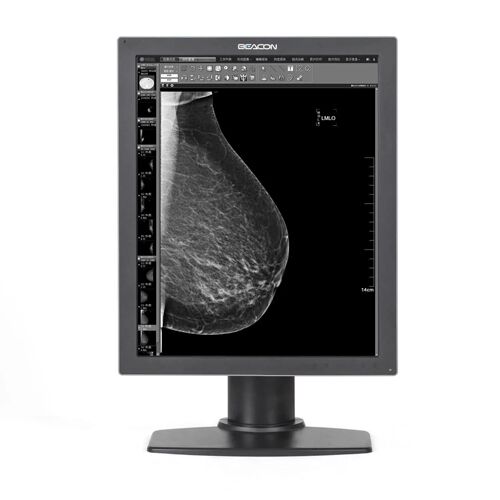

Beacon G53S+ 21.3” 5MP Grayscale LED Display

  • 21.3” 5MP monochrome LED display
  • Native resolution: 2560×2048
  • Brightness: 300000cd/m2 Typ.
  • Contrast: 2000:1 Typ.
  • FDA 510K approved


Beacon G53S+ 21.3” 5MP Grayscale LED Display

Beacon G53S+  Blue light exists abundantly in the display. Long-term overexposure to blue light could lead to an increased risk of macular degeneration, glaucoma, cataracts, and other retinal eye degenerative diseases. Beacon’s low blue light diagnostic medical monitor could reduce these risks by decreasing harmful blue light by more than 50% dramatically. G53S+ is with 5MP (2560X2048) high resolution, high brightness, high contrast ratio, and a wide viewing angle that can be applied to various medical image equipment and PACS system. Each monitor is strictly calibrated to comply with DICOM standard, and ensure the accurate display of medical images and details. The built-in backlight stabilization system can ensure consistent performance in long-term use.

Beacon G53S+ has color and grayscale imaging functions, 5 million pixels ultra-high-resolution, ultra-high brightness, ultra-high contrast, wide viewing angle and low power consumption. It can be widely used in various medical imaging equipment including digital breast and PACS system.

Feature Highlights

Low Blue Light Technology

Blue light is a part of the short-wave light in the spectrum, which is abundant in the normal display screen. Long-term exposure to blue light is the main cause of maculopathy. The main symptoms of maculopathy are central visual impairment and visual deformity. Over 50% of the blue light can be cut down by low blue light technology, and the risk of macular degeneration can be significantly reduced.

Ambient Light Adaptive System

With the built-in integrated front ambient sensor, the ambient environment can be monitored continuously, the brightness can be adjusted to a proper level automatically to ensure the display is compliant with DICOM standard under any ambient environment The diagnostic accuracy is increased and discomfort and eye strain can also be avoided.

Continuous Quality Assurance System

With an integrated front sensor, grayscale and color can be monitored and calibrated. The display accuracy of medical images is continuous and automatically assured, and can also be network centralized managed.

Compliant With DICOM Standard

Medical images including the most subtle details can be displayed precisely. Keep display consistency between different displays as well as display and different imaging modalities, to ensure the accuracy of diagnosis.

About Beacon

As a high-tech enterprise dedicated to display technology innovation and application, Shenzhen Beacon Display Technology Co., Ltd. has two professional manufacture bases located in Shenzhen and Shenyang respectively. Beacon provides a full series of medical imaging display solutions, and covers almost all medical imaging application areas, including clinical review, diagnostic, consultation center, digitized surgical room and ultrasound, CT, MRI, DR, DSA, DSI, endoscope etc.
Beacon has been widely identified by the market. Many medical imaging equipment manufacturers have chosen Beacon’s displays as the standard configuration. In hospital, Beacon currently holds more than 50% market share in China and has more than 4000 hospital users. Info


Product model G53S+
Product name 5MP Low Blue Light Grayscale Medical Display
Display size 21.3″
Support color 1024 grayscale
Resolution 2560×2048
View angle 178° Typ.
Brightness 3000cd/m² Typ.
Contrast ratio 2000:1 Typ.
Input signal interface DVI-D: 24 pin
DisplayPort: 20 pin
