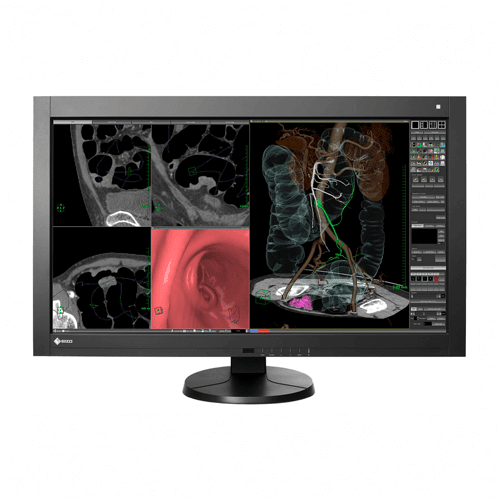

Eizo RadiForce MX242W (MX242W-BK) 24" Widescreen Color Diagnostic Display Monitor

Eizo RadiForce MX242W (MX242W-BK) 2.3MP 61cm (24.1″) COLOR LCD MONITOR
A 24.1-inch widescreen monitor with DICOM Part 14 calibration support, smooth color reproduction, and screen management for increased work efficiency.
PRICE REQUEST

Description

Eizo RadiForce MX242W (MX242W-BK) 24″ Widescreen Color Diagnostic Display Monitor

Make the Precise Diagnosis

Eizo RadiForce MX242W (MX242W-BK) 24″ Widescreen Color Diagnostic Display Monitor carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14. This ensures the most consistent shading possible, allowing for the most accurate diagnosis.



Maintain the Precision

Perform a simplified calibration compliant with DICOM Part 14 using the bundled RadiCS LE quality control software. RadiCS LE corrects the brightness and grayscale tones of the monitor to maintain image accuracy and consistency over time.



Keep Your Monitor Lit Longer

The Eizo RadiForce MX242W (MX242W-BK) LED backlight offers a significantly longer service life over conventional CCFL backlights. In addition, you can maintain high brightness while simultaneously lowering power consumption. Since the LED backlight is mercury-free, it will also reduce any potential impact on the environment when disposed of.


View More with Widescreen

The Eizo RadiForce MX242W (MX242W-BK) widescreen 16:10 aspect ratio provides significantly more horizontal space than the aspect ratios of conventional square monitors so that you can keep tool palettes open without covering the window you are working on.


Comfortably View from Any Angle

The Eizo RadiForce MX242W (MX242W-BK) wide viewing angles of the IPS panel allow you to view the sreen from the side with minimal color shift, also permitting more than one person to view the monitor comfortably at the same time.



View Accurate Images in Moments

The EIZO-patented drift correction function quickly stabilizes the brightness level of the monitor upon startup or wakup from sleep mode, giving you the most accurate images quickly ready for viewing. In addition, a sensor measures the backlight brightness fluctuations caused by ambient temperature and aging for a consistently stable display.



Attain Steady Images Across the Screen

The Digital Uniformity Equalizer (DUE) function helps to even out fluctuations in brightness and chroma on different parts of the screen to provide smoother images.


Select the Ideal Mode for Modalities

TheEizo RadiForce MX242W (MX242W-BK) CAL Switch function allows you to choose various modes for different modalities such as CR, CT, and endoscopy and can be conveniently accessed using the monitor’s front panel buttons.


Improve Operability

EIZO’s highly versatile stand offers, tilt, swivel, and a wide height adjustment range, enabling you to use the monitor with greater comfort.


Rest Assured with Medical Qualifications

The monitors meet the strictest medical, safety, and EMC emission standards.


About Eizo

EIZO, which means image in Japanese, is a visual technology company that develops and manufactures high-end display solutions. EIZO integrates hardware and software technologies with consulting, web hosting, and other services to help customers in business, graphics, gaming, medicine, maritime, air traffic control, and other fields work more comfortably, efficiently, and creatively. Headquartered in Hakusan, Japan, EIZO has R&D and manufacturing facilities in Japan, China, Germany, and the U.S., and representation in more than 80 countries.


Cabinet Color Black
Panel
Type Color (IPS)
Backlight LED
Size 61 cm / 24.1"
Native Resolution 1920 x 1200 (16:10 aspect ratio)
Viewable Image Size (H x V) 518.4 x 324.0 mm
Pixel Pitch 0.270 x 0.270 mm
Display Colors 10-bit colors (DisplayPort) : 1.07 billion (maximum) colors 8-bit colors: 16.77 million from a palette of 68 billion colors
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 350 cd/m2
Recommended Brightness for Calibration 180 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 12 ms (on / off)
Video Signals
Input Terminals DVI-I x 1, DisplayPort x 1
Digital Scanning Frequency (H / V) 31 - 76 kHz / 59 - 61 Hz
Analog Scanning Frequency (H / V) 26 - 76 kHz / 49 - 71 Hz
Sync Formats Separate
USB
Function 1 upstream, 2 downstream
Standard USB 2.0
Power
Power Requirements AC 100 - 240 V: 50 / 60 Hz
Maximum Power Consumption 68 W
Typical Power Consumption 31 W
Power Save Mode Less than 0.5 W
Power Management Digital: DVI DMPM, DisplayPort 1.1a Analog: VESA DPM
Sensor Backlight Sensor
Features & Functions
Brightness Stabilization Yes
Digital Uniformity Equalizer Yes
Preset Modes CAL Switch
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight 8.7 kg
Net Weight (Without Stand) 6.0 kg
Hole Spacing (VESA Standard) 100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.) CE (Medical Device Directive), EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, Canadian ICES-003-B, RCM, RoHS, China RoHS, WEEE, CCC, GOST-R
FDA 510(k) Clearance Yes (for General Radiography)
Supplied Accessories (May vary by country. Please contact EIZO for details.) AC power cord, signal cable (DVI-D - DVI-D, DisplayPort - DisplayPort) , USB cable, Utility Disk (RadiCS LE, ScreenManager Pro for Medical, PDF instructions for use, PDF installation manual), instructions for use
Warranty Five Years
