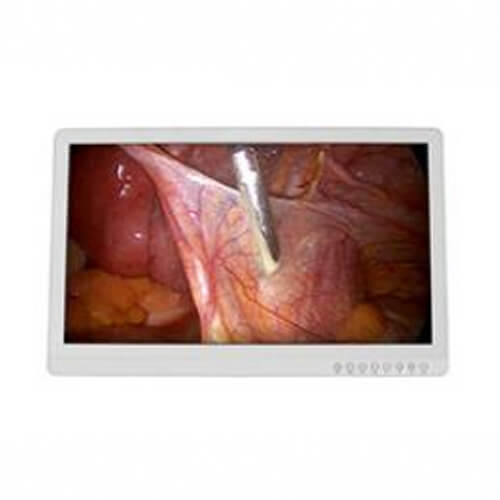

FSN FM-A2701DS (FMA2701DS) 27” 4K Surgical Display

  • 4K UHD (3840 x 2160 pixels)
  • 4 x SDI (3G)
  • Ready, out of the box, for 4K endoscopy applications
  • The sharpest possible image for surgical visualization
  • High brightness LED technology
  • Streamlined design – slim profile, narrow bezel


FSN FM-A2701DS (FMA2701DS) 27” 4K Surgical Display

FSN’s 27” FM-A2701DS offers stunning 4K image detail and color depth in a compact monitor size. 4K pictures have more clarity and image depth, and this monitor makes full use of these benefits. 4K is the way of the future – be ready for new image generating devices as they are released. FM-A2701DS features a variety of signal input types including HDMI, DVI, DisplayPort and 4x3G SDI. There also are DC power outputs for smaller components
FM-A2701DS transforms how ultra high definition images are seen in the clinical environment. With improved color depth and increased resolution, this display offers the ultimate in crystal clear sharpness and surgical site detail. The 4K UHD technology found inside FM-A2701DS and gives medical professionals the confidence they need to accurately view and manipulate anatomy during endoscopic procedures.
FSN Medical Technologies has developed solutions for displaying crystal clear 4K video. This cutting-edge technology has been engineered for medical visualization applications to allow surgeons to see live video images with incredible resolution. It allows the doctor to view intricate hand movements on-screen, and control medical visual content with pinpoint accuracy. FM-A2701D and FM-A2701DS can fine-tune surgical color and layout settings to individual preferences.

About FSN

FSN Medical Technologies is the name of medical video management products from Foreseeson Custom Displays. FSN is a pioneer and world leader in medical video signal management, distribution and display. From concept, design, prototype, certification and production, to interface design, all FSN products are characterized by their seamless usability, compact modularity and robust design.
North American and European divisions of WIDE Corporation are part of Foreseeson Custom Displays. WIDE develops, manufactures, and supports high resolution display monitor systems for the medical diagnosis and review market, and the industrial/security market, including maritime and air traffic control.
General Features
Panel 27 inch TFT LCD (LED)
Resolution 3840 x 2160 pixel
Power Supply AC/DC Adaptor (AC 100~240V, DC 24V/6.6A)
Control Key Power, Menu, PIP, Up, Down, Plus, Minus, Input
Unit Dimension 658.8(W) x 426(H) x 60(D) (mm) 25.94(W) x 16.77(H) x 2.36(D) (inch)
Average Brightness 800 cd/ m2
Response Time (G-to-G) 14 ms
Viewing Angle (CR>10) R/L 178, U/D 178
Weight 8.8 kg, 19.4 lbs. (monitor with cover) 13.81 kg, 30.45 lbs. (shipping package)
Contrast Ratio 1000 : 1 Typical
Pixel Pitch 0.1554(W)mm x 0.1554(H)mm
