JVC CL-E270 27-inch FHD Surgical Display

  • Full HD 27″ Color Monitor
  • Widescreen
  • Flat design
  • 300 cd/m²
  • AR Front Glass
  • Calibration Function
  • Multi-Source

Description

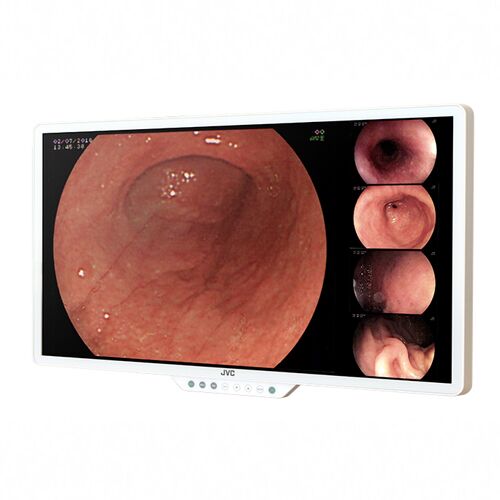

JVC CL-E270 27-inch FHD Surgical Display Monitor

JVC CL-E270 Full HD 27″ wide monitor with flat design for high-definition endoscopy/surgical images.

Experience precision and clarity with the CL-E270 27″ FHD Surgical Display Monitor. Designed specifically for medical environments, this monitor delivers stunning full HD resolution, ensuring that every detail is captured during surgical procedures. Its advanced technology provides exceptional color accuracy and contrast, making it an essential tool for any surgical team.

The JVC CL-E270 is not just about visuals; it’s built for durability and reliability in high-pressure settings. With a robust design and easy-to-use interface, this monitor seamlessly integrates into your existing surgical setup. Plus, its versatile connectivity options allow for quick and hassle-free connections to various medical devices.

Whether you’re looking to purchase or need repairs, the JVC CL-E270 is your go-to solution for surgical displays. Elevate your surgical experience with a monitor that combines quality, performance, and dependability. Don’t miss out on the opportunity to enhance your operating room with this top-tier display!

Upgrade your medical imaging with the JVC CL-E270 27″ FHD surgical display. Explore our sales and repair services for reliable performance and support!

JVC CL-E270 IPS Panel Technology

The IPS panel technology provides high brightness, a wide viewing angle, and accuracy in color.

Picture-in-Picture (PinP) and Picture-by-Picture (PbyP)

Picture-in-Picture (PinP) and Picture-by-Picture (PbyP)

These features allow two videos/images from multiple signal inputs to be displayed simultaneously so that surgeons can effectively obtain the required information.

JVC CL-E270 Hygienic Flat Design

JVC CL-E270 Hygienic Flat Design

A completely flat surface allows for easy cleaning. Furthermore, the waterproof front (IP45) glass with anti-reflecting coating protects the monitor from shocks, scratches and dust.

Capacitive Touch Controller

Capacitive Touch Controller

Capacitive touch controller located slightly back of the surface to prevent misoperation enables ease of operation.

Multi-interface

Multi-interface

CL-E270 supports multiple interfaces including DVI-D and 3G-SDI for both input and output.

JVC CL-E270 Built-in Power Supply

Built-in power supply contributes to easy cable management.

Model: CLE270

Our service and repair center offers expert professional repairs!

Support

Brochure | JVC Healthcare | JVC Medical Displays | JVC Diagnostic Displays | JVC Surgical Displays | JVC Support

Specifications

Model
CL-E270
LCD Panel
Size 27-inch
Technology color, TFT, IPS technology
Display Area 597.8 mm x 336.3 mm
Pixel Pitch 0.311 mm x 0.311 mm
Maximum Luminance 300cd/m² (typ.)
Contrast Ratio 1000 : 1 (typ.)
Viewing Angle 178° vertical and horizontal
Visual Performance
Native Resolution 1920 x 1080
Display Colors 16.77 million colors from a palette of 1.06 billion colors
Interface
Input Signal DVI-D x 2, 3G-SDI x 1
Output Signal DVI-D, 3G-SDI
Plug and Play DDC2B compliant
Control signal RS-232C (D-sub 9 pin), USB (Type-B)
Input Power Supply
Input Power Supply AC100 – 240V 50 / 60Hz
Maximum Power Consumption Maximum : 40W (typ.) Power save : 6.0W
Features
Calibration Control Luminance, Gamma, Color temperature (Optional Calibration Kit is required)
Other Features Picture-in-Picture,Picture-by-Picture
Approvals
ANSI/AAMI ES60601-1 (2005) +A1 (2012),CAN/CSA-C22.2 No. 60601-1 (2014), CE (EN60601-1, EN60601-1-2), FCC Part15 subpart B Class B,ICES-003-B, VCCI-B, J-Moss, RoHS, EAC, CCC
Physical Characteristics
Dimensions (W x H x D) 632.8 mm x 393.8 mm x 63 mm
Weight approx. 7.6 kg
Mount VESA standard (100 mm x 100 mm)
Accessories
Power cord, DVI cable, VESA mount screw (x4), Operation manual
Input supported signals
3G-SDI 720p/24, 25, 30, 50, 60 1080i/50, 60, 1080p/24, 25, 30, 50, 60, 1080PsF/24, 25, 30
DVI-D VGA, SVGA, SXGA, Full HD, UXGA, WUXGA

Additional information

Manufacturer

Jusha

Model

CL-E270
