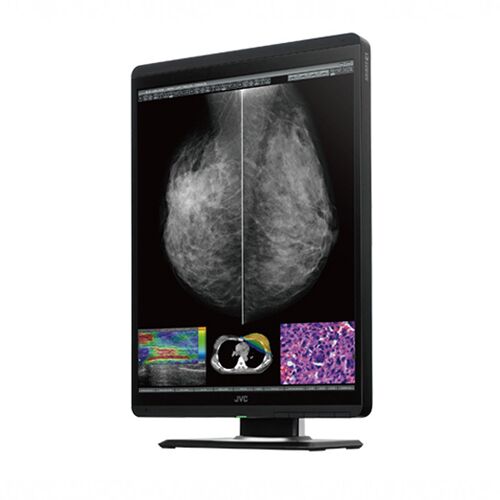

JVC CL-S500 21.3″ 5MP Super High Bright Color Mammography Display

  • 21.3-inch, 5 MP Super High-bright LCD Color Diagnostic Display
  • 5 Megapixel – 1150 cd/m² – 1800 :1 contrast
  • DICOM calibration
  • Remote calibration and management
  • Color and brightness uniformity
PRICE REQUEST

Description

JVC CL-S500 21.3″ 5MP Super High Bright Color Mammography Display

The JVC CL-S500 can accommodate images from any modality including Digital Mammography/Tomosynthesis, US, CT, MRI and pathology.

Dynamic Gamma
JVC CL-S500 Color Images are automatically recognized to provide optimized contrast, brightness and gamma. No user intervention is required.

Auto Text Mode
Brightness is automatically adjusted on patient lists and reporting applications to reduce eye strain.

Stable Image Representation
The luminance and color stabilization system contributes to improved image representation for an efficient reading environment.

Razor-sharp Color Precision
Utilizing its unique X, Y, Z, color level tracking and color management technologies, any of the i3 model perfectly color-matches one another.

Improved Diagnostic Visibility
A contrast ration of 2000:1 on the JVC CL-S500 delivers crisper images and gives radiologists confidence in breast image interpretation to improve work efficiency.

Image comparison

Integrated QA Solution
QA Medivisor Agent providing calibration and QA standard testing through a straightforward user interface is effective to manage daily operation.

* Optional calibration kit CAL-016 is required for standard QA testing.

Self-calibration
With the integrated color front sensor, JVC CL-S500 self-calibrates to the DICOM Part 14 Standard on a regular schedule.

Built-in Sensor

Premium Design
The simple and slim design for a modern look.

Protective Glass Filter
Glass filter with anti-reflect coating protects the LCD panel from dust or scratches.

Reading Light
Integrated reading light illuminates your keyboard.
The ambient sensor automatically adjusts the brightness to the room lighting conditions.

Space Saving
The new design of JVC CL-S500 reduces 25% of the stand footprint compared to the conventional models.

Low Blue light Panel
The JVC CL-S500 comes with a low blue light panel, which reduces strain on the eyes while reading.

Wire Management / DisplayPort Daisy Chains
With the DisplayPort 1.2, the use of daisy chains allows for easier wiring connections.

About JVC-Kenwood

JVC-Kenwood is a leading worldwide manufacturer of medical image displays and touch panel displays. Its high-end, high-cost-performance medical image displays and touch panels are backed by its unique technology and know-how through decades of solid experience in the industry since 1972.

JVC-Kenwood has supplied computer displays for factories, broadcast stations, workstations, and other applications, and has earned a high marks for its product reliability under harsh conditions and post-installation support, not to mention specialized technologies required for respective fields.

JVC-Kenwood continues to provide high-performance displays for specialized fields by developing leading-edge technologies, while providing consistently optimal customer service.


Model Name
CL-S500
LCD Panel
Technology
21.3-inch , color, TFT, IPS technology
Display Area
337.9 mm x 422.4 mm
Pixel Pitch
0.165 mm x 0.165 mm
Contrast Ratio
2000:1 (typ.)
Maximum Luminance
1150 cd/m² (typ.) 410 cd/m² / 500 cd/m² (calibrated)
Viewing Angle
178° vertical and horizontal
Visual Performance
Native Resolution
2048 x 2560
Display Colors
16.77 million colors 1.07 billion colors with DisplayPort and 10-bit viewer
Interface
Input Signal
DVI-D (DVI 1.0 compliant) DisplayPort (DisplayPort 1.2a compliant)
Output Signal
DisplayPort (DisplayPort 1.2a compliant)
Plug and Play
DDC2B compliant
Input Power Supply
Input Power Supply
100V - 240 V 50/60 Hz
Maximum Power Consumption
80W (typ.)
Features
Calibration Control
Luminance, Gamma, Color temperature Capable of storing 3 sets of LUT (Optional Calibration Kit is required)
OSD Information Display
Model name, Serial No., Total operating time, Calibration settings (Operating time since last calibration, Luminance, Gamma), Current luminance, Color temperature and Ambient light, DICOM conformance
USB Hub
USB Rev.2 compliant, Self-powered USB upstream connector (x1), USB downstream connector (x2)
Other Features
Uniformity Equalizer, Hardware pivot, LED indicator, Advanced power management, Human Presence Sensor, Dynamic Gamma, Auto Text Mode, Reading light, Luminance stabilization, Multiple LUT, Self DICOM check, Self-calibration
Approvals
ANSI/AAMI ES60601-1 (2005) + A1 (2012), CAN/CSA-C22.2 No. 60601-1 (2014), CE (EN60601-1, EN60601-1-2), RCM, FCC Part15 subpart B Class B, ICES-003-B, VCCI-B, J-Moss, RoHS
FDA
510(k) Cleared to use for diagnostic purposes with digital medical images for Digital mammography PACS, Modalities including FFDM, and Breast tomosynthesis
Physical Characteristics
Dimensions(W x H x D)
Landscape : 493 mm x 451.3 / 546.3 mm x 196.5 mm Portrait : 361.5 mm x 517 / 612 mm x 196.5 mm
Weight
approx. 9.5 kg
Tilt Stand
Tilt, Swivel, Portrait / Landscape
Mount
VESA standard (100 mm x 100 mm)
Accessories
Power cord, DVI cable, DisplayPort cable, USB cable, Operation manual, Installation manual, Software (QA Medivisor Agent LE)
