Description

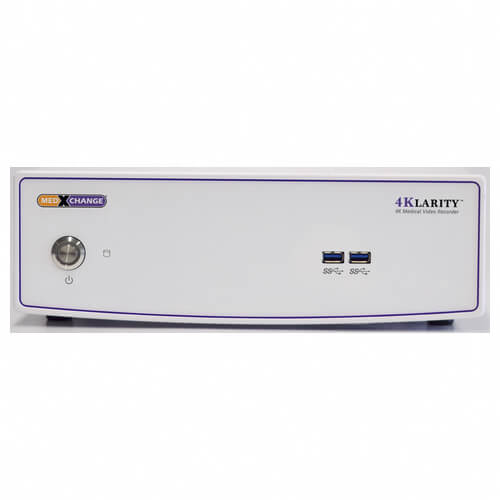

MedXChange 4Klarity, 4K UHD Medical Video Recorder
4K Medical Video Cameras are coming to Operating Rooms/Theatres very soon. That means that 4K Medical Video Recorders will naturally be required for the recording of 4K video and sharing of 4K information for surgeons and the hospital staff. 4K Medical Video Cameras offer 4 times the resolution of 1080p which means 4 times the true detail that the MedXChange 4Klarity 4K UHD Surgical Video Recorder will capture. Some of the features that the MedXChange 4Klarity 4K UHD Medical Video Recorder will offer are as follows:
4K, 3D, 1080p (up to 5 cameras) Video Recording
- H.264 Encoding & Decoding of 4K UHD video
- Record 4K & 1080p independent cameras simultaneously
- Record 1080p 3D video (left and right channel)
- Record 5 1080p inputs simultaneously (5x 3G HD-SDI)
- 2SI & Square Divison 4K
- Recording to internal hard drive and 2x USB Locations along with iOS App and PACS
- Accepts BT.2020 and BT.709 4K Medical Video
Input/Outputs
- 4x 3G HD-SDI input for true 4Kp60/50
- 1x 3G HD-SDI input for 1080p 60/50fps
- 1x 3G HD-SDI output 1080p 60/50fps loop-through
Display Port++ Output
- For Software User Interface
- DICOM/PACS/MWL
- DICOM SCU storage; image and H.264 video
- Modality Work List integration
Storage
- Large storage capacity – 4TB hard drive, approximately 180 hours of 4K video
- Record videos and still images to USB/Network Storage Device
Additional
- Integrated wireless 802.11ac with hotspot and WPA2 encryption
- Foot pedal capable
- External trigger ports (2x 3.5mm, 2x 2.5mm)
- HIPAA compliance; User/Admin roles, permissions, encryption, auditing
Software Supported Languages
- English, Spanish, French, Italian, Portuguese, German, Chinese, Japanese, Korean, Russian, Swedish, Arabic
Live HD video over IP streaming; Stream 4K & 1080p cameras Simultaneously!
MedXStream® Wireless iOS App
- Add patient information
- Wi-Fi/Auto transfer of 4K & HD still images
- Create PDF surgical reports with image annotation/mark-ups
- Audio dictation embedded into PDF surgical reports
- Export to video editing apps
- Record 4K Medical Video directly to the MedXStream app via USB 3.0 (lightning connector), TLS encryption
4K Compatible Cameras
- Panasonic® 3MOS 4K Ultra HD Camera (GP-UH532)
- Toshiba® IK-4K Camera
- Ikegami® MKC-750UHD Medical Grade 4K Camera
- Olympus® Visera 4K Camera Control Unit
- Arthrex® UHD4 Synergy 4K Camera
Printing
- Print still images to Sony® Medical Grade Printers and network printers
- Auto print
- Send prints to PDF document for paperless facilities
Dimensions
- 30cm W x 30cm D x 10cm H
