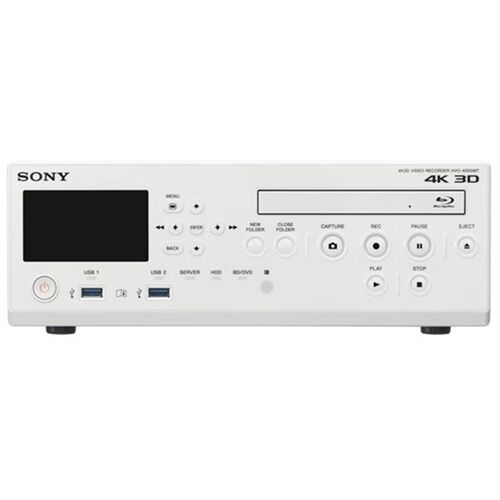

Sony HVO-4000MT (HVO4000MT) 4K 2D/3D Medical Video Recorder

  • Integrated 4K workflow
  • Capture your procedures in 4K, 3D or 4K 3D video recording
  • Patient information input via DICOM MWL
  • Simultaneous recording via network
  • Touch panel support
  • Easy management of content
  • 4K input support for 2D and 3D formats
  • Long recording time
  • 4K/FHD simultaneous recording
  • Light and compact design
  • Unmatched video quality on front panel
  • Compliant with medical safety standards
SKU: SonyHVO4000MT Categories: , ,


Sony HVO-4000MT (HVO4000MT) 4K 2D/3D Medical Video Recorder

The Sony HVO-4000MT is already firmly established as the most versatile, feature-rich 4K 2D and 3D medical recorder in its class. With the addition of DICOM Modality Work List support for a smooth metadata workflow, and an HD input for flexible video integration, it’s now an even more compelling choice for clinical teams.

Integrated 4K workflow

The HVO-4000MT records 4K video and still images in 2D or 3D from endoscopic/laparoscopic cameras, surgical microscopes and other compatible imaging systems. Video files can be stored simultaneously on the recorder’s hard drive and external media or IP network server for patient records, training and education. The recorder simultaneously creates a Full HD copy of 4K source content for easy sharing and viewing on our 4K surgical monitors.

Capture your procedures in 4K, 3D or 4K 3D

Ideal for documenting critical or rare cases, or for training and education purposes, the HVO-4000MT supports both 4K resolutions of 4096 x 2160 (True 4K) as well as 3840 x 2160 (4K UHD) and records them using the state-of-the-art Sony XAVC codec standard based on H.264/AVC format. Users can select bitrate range of 150, 100 or 60 Mbps, depending on their requirements for picture quality and recording length.

The HVO-4000MT goes further towards future-proofing your workflow, and supports 4K 3D input as well (Line-by-Line and Top-and-Bottom). 3D signals are always recorded in top-and-bottom with a resolution of 3840×2160 and at 59.94p/50p. Still images also can be saved any time during the procedure recording in 2D or in 3D format.

Patient information input via DICOM MWL

Support for DICOM Modality Work List allows automatic input of patient information from RIS or other DICOM worklist servers via the hospital network. Hospital staff no longer need to manually enter patient information data before surgery, avoiding human error and saving time. (Requires firmware version 1.2 or later).

Simultaneous recording via network

The recorded data can be transferred from the operating room to computers via CIFS protocol over the network, for convenient and centralized storage and sharing. This can be done during the recording itself, allowing users to access recorded files quickly once a recording is complete. Data transfer via CIFS can also be done at any other point in time from the recording list.

This eliminates the additional step of users having to transfer recordings onto their PC using an external media source, and enables an effective network base for video sharing.

Multiple remote-control connectivity

Besides the supplied infrared remote controller and optional touch monitor, the Sony HVO-4000MT can be controlled via contact switches, such as buttons on endoscopes. Furthermore, a USB keyboard can control a series of functions using function keys. Key assignment is fully configurable.

For in-depth integration into complex modality workflows, remote control is possible via command protocol using either the RS-232C or the USB interface.

Touch panel support

Adding an optional external touch panel monitor simplifies data input and operation (e.g. entering the patient’s ID, name, gender, and date of birth). The touch is also very useful for quick preview and playback of recorded video, plus easy-and-quick access to the recording list and settings.

Easy management of content

This standalone recorder saves video and still images to an internal hard disk drive, which makes it suitable for a wide range of healthcare environments. It can also record simultaneously to an external USB 3.0 drive, to optical disk, or to a compatible network server. This enables easy content management, a valuable feature for training and education purposes.

4K input support for 2D and 3D formats

Sony HVO-4000MT accepts 4K video signal via four 3G-SDIs. Supported formats include 2D as well as 3D. For 3D input signals Line-by-Line as well as Top-and-Bottom are supported, which will be recorded in top-and-bottom 3D video format.

In addition, HVO-4000MT accepts HD video input via 3G-SDI. Supported formats are 1920 x 1080 59.94p/50p (2D BT.709 only. Requires firmware version 1.2 or later).

Long recording time

The recorder’s high-capacity 4TB disk drive allows long-duration video recording, even in 4K. Three image quality settings (Standard/High/Best) permit between 46 and 119 hours of 4K video recording (or between 311 and 634 hours of Full HD video recording). Individual recordings can be up to 24 hours long, meaning even long and complex operations or procedures can be recorded easily.

4K/FHD simultaneous recording

HVO-4000MT is able to record FHD images from 4K images internally. This is particularly useful when balancing the need for higher-resolution 4K images, with the more common daily use of FHD videos. HVO-4000MT provides the solution to meet this dual demand.

Light and compact design

For ease of use and integration with medical carts, the HVO-4000MT’s compact design saves space with its sleek dimensions of 12.01 in (W) x 4.55 in (H) x 19.95 in (D) and 14.33 lbs of weight.

Unmatched video quality on front panel

HVO-4000MT has a 3.5″ color (960 x 540 pixel) LCD on the front panel, showing current input image and status, playback images, and recorder settings. It allows users to control video input as well as change settings without an external display.


About Sony Medical

Sony Electronics Inc. is a leading provider of innovative medical products designed for use in a wide range of applications as a stand-alone hardware solution, or for incorporation into integrated medical systems. Medical imaging offerings include dry film imagers, printers, cameras, recorders and medical grade monitors for a full range of modalities.


Recording Features

Recording Video Format
MPEG-4 AVC/H.264
Recording Audio Format
Recording File Format
Recording Media
Internal HDD (4TB)
External USB Storage
Network (CIFS)
Input Resolution
Recording Resolution
Recording Bit Rate (4K)
150Mbps (Best)
100Mbps (High)
60Mbps (Standard)
Recording Bit Rate (HD)
24Mbps (Best)
18Mbps (High)
12Mbps (Standard)
3D Recording
Line by Line
Top and Bottom

Input Connectors
3G-SDI (BNC type) (4)
AUDIO (Stereo mini jack) (1)
MIC (Sterao mini jack)(1)
AC Inlet (3-pin) (1)
Output Connectors
3G-SDI (BNC type) (4)
HDMI (Type A) (1)
AUDIO (Stereo mini jack) (1)
Other Interfaces
USB 3.0 (Type A) (2)
USB 2.0 (Type A) (4)
USB 2.0 (Type B) (1)
Network (RJ-45, 1000 Base-T/100 Base) (1)
REMOTE RS-232C (D-sub 9-pin) (1)
REMOTE contact switch (stereo mini jack) (4)

Power Requirements
100 V to 240 V AC, 50/60 Hz
Input current
1.25 to 0.52 A
Operating Temperature
5 °C to 40 °C
(41 °F to 104 °F)
Operating Humidity
20% to 80% (Maximum wet-bulb temperature: 30 °C (86 °F)) (no condensation)
Operating Pressure
700 hPa to 1060 hPa
Storage and transport temperature
-20°C to +60°C
-4°F to +140°F
Storage and transport humidity
20% to 90% (Maximum wet-bulb temperature: 30 °C (86 °F)) (no condensation)
Storage and transport pressure
700 hPa to 1060 hPa
Approx.6.5 kg
Approx. 14 lb. 5.3oz.
Dimensions (W x H x D)
305.0 x 115.5 x 329.0 mm (including longest protrusions)
12 1/8 × 4 5/8 × 13 in. (including longest protrusions)
Supplied Items
Before Using This Unit (1)
CD-ROM (Instructions for Use, PROTOCOL MANUAL) (1)
Warranty booklet (1)
Service Contact List (1)
Infrared remote control unit (RM-M010) (1)
Separately-Sold Accessories
Foot Switch (FS-24) *1
Compliance with Medical Safety Standards
