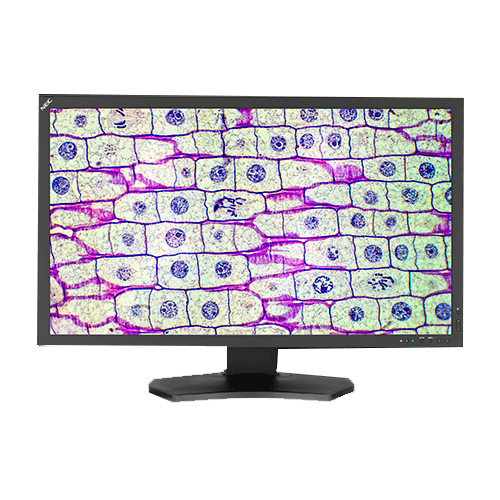

NEC MD322C8 31.5” 8MP Medical Review Display with LED Backlighting (FDA 510(k) cleared)

  • Superior screen performance (1000:1 contrast ratio, 8 megapixel 3840×2160 native resolution, 350cd/m2 brightness)
  • 14-bit 3D internal programmable lookup tables (LUTs) for accurate DICOM calibration
  • Picture in Picture and Picture by Picturemodes increase productivity by displaying two or four sources simultaneously
  • DisplaySync ProTM controls two computers with only one keyboard and mouse
  • Wide connectivity includes two DisplayPort with 10-bit support, four 10-bit HDMI, two DVI-D inputs as well as a USB hub
  • GammaCompMD QA Client software included.


NEC MD322C8 31.5” 8MP Medical Review Display with LED Backlighting (FDA 510(k) cleared)

The 32” NEC MD322C8, a mid brightness medical grade widescreen review display, is designed for the demanding needs of healthcare professionals in medical imaging and PACS. This 8MP model offers factory DICOM calibration, excellent uniformity, DisplayPort and HDMI connectivity with OPS expansion slot for optional 3G/SD/HD-SDI inputs. It also includes high-performance technologies such as automatic luminance control, 2- and 4-way Picture-by-Picture mode for simultaneous input viewing.
The NEC MD322C8 display is one of the best 8MP medical review displays on the market. The quality and design of the display is on par with today’s technologies. The NEC MD322C8 is also backed with a 5 year warranty to give you a piece of mind in terms of quality and functionality of the product. Give us a call to discuss your requirements and so we can also offer you the best solution to your needs.

About NEC Display Solutions

A wholly-owned subsidiary of NEC Corporation, NEC offers a broad selection of desktops, large-screen displays, and multimedia and digital cinema projectors, coupled with expertise in hardware/software consulting, financing, system configuration, maintenance and service/support. The result is a customized, technology-rich deployment optimized specifically to meet your company’s unique needs.
Our business is driven by innovation, advanced technologies, industry-leading service and value-add programs that help increase your productivity and let you see your digital world in a more dynamic way.

Viewable Image Size 31.5"
ColorType Color
MegaPixels 8MP
Native Resolution 3840 x 2160
Pixel Pitch 0.18mm
Pixels Per Inch 140@ native resolution
Brightness (typical) 180 cd/m2 calibrated / 350 cd/m2 max
Contrast Ratio (typical) 1000:1
Viewing Angle 176° Vert., 176° Hor. (88U/88D/88L/88R) @ CR>10
Response Time 10ms
Lookup Table 14-bit (3D)
Displayable Colors 1.07 billion colors out of 4.3 trillion or 1024 shades of gray out of 4096 (10-bit DisplayPort input); 16.7 million colors out of 1.05 billion color palette or 256 shades of gray out of 4096 (DVI-D input)
Synchronization Range
Horizontal (Analog/Digital) 31.5-133.2 and 236.7 kHz (Digital only)
Vertical 24 - 87 Hz, 120 some modes
Input/Output Terminals
Digital DisplayPort, DisplayPort OPS, 2x HDMI, 2x HDMI / 2x DVI-D Dual Link, USB 3.0 hub (2 up/ 3 down) with DisplaySync Pro
Power Consumption (typical)
On 95W
Power Savings Mode 4.6W
Physical Specifications
Dimensions (WxHxD)
Net (with stand) 29.3 x 18.4 x 11.9 in. / 745 x 469 x 302 mm
Net (without stand) 29.3 x 17.4 x 3.9 in. / 744.8 x 440.8 x 100.0 mm
Net Weight (with stand) 45.2 lbs. / 20.5 kg
Net Weight (without stand) 31.3 lbs. / 14.2 kg
VESA Hole Configuration Specifications
100 x 100mm, 200 x 100mm
Environmental Conditions
Operating Temperature 41-95°F / 5-35°C
Operating Humidity 30-80%
Operating Altitude 16,404 ft. / 5000m
Storage Temperature 14-140°F / -10-60°C
Storage Humidity 10-85%
Storage Altitude 40,000 ft. / 12,192m
Safety Standards
  • C-UL EN 60601-1
  • US Mercury RegulationsSB50 (California)WEEERoHSPC RecycleCCCCEL Grade 2AAPM-TG18DIN V 6868-57FDA 501(k) pending
Limited Warranty (parts & labor, including backlight)
5 years, including Advanced Overnight Exchange; Backlight replacement limited to 44,000 hours of usage at 400 cd/m2 or less at t
Additional Features
  • DICOM GSDF calibrated
  • Digital Uniformity Correction
  • GammaComp MD QA software
  • Digital CableComp
  • Pivot
  • Tilt
  • Swivel
  • Rotate
  • Height-adjustable stand
Ships With
  • Power cable
  • Mini DisplayPort to DisplayPort cable
  • DisplayPort cable
  • USB 3.0 A to B cable
  • Mounting Screws
  • NNVidia Quadro 2000D dual DVI PCIe video card (MDN-Q2000D)
  • AMD V5800 dual DVI PCIe video card (MDA-V5800D)
  • Matrox Xenia Pro triple-head video card (MDM-XENPRO)
  • NVidia Quadro K2000 2GB PCIe video card (MDN-K2000), NVidia Quadro K2200 4GB PCIe video card MDN-K2200
  • AMD W5000 2GB PCIe video card (MDA-W5000), AMD W5000 Quad DisplayPort 4GB PCIe video card (MDA-W5100), AMD W4100 Quad mini DisplayPort 2GB PCIe video card (MDA-W4100)
  • Color calibration sensor (MDSVSENSOR2)
  • Standalone calibration sensor (MDSVSENSOR3)
  • Traceable calibration sensor (CC-I1PRO2)
