The Optik View SF1901 model for endo-imaging application, can not only support multiple signals, for example, RGBS, S-video, YPbPr, Composite, VGA and DVI-D, but also delivers true color reproduction. It can be used in surgical room to perfectly display the surgical procedure.

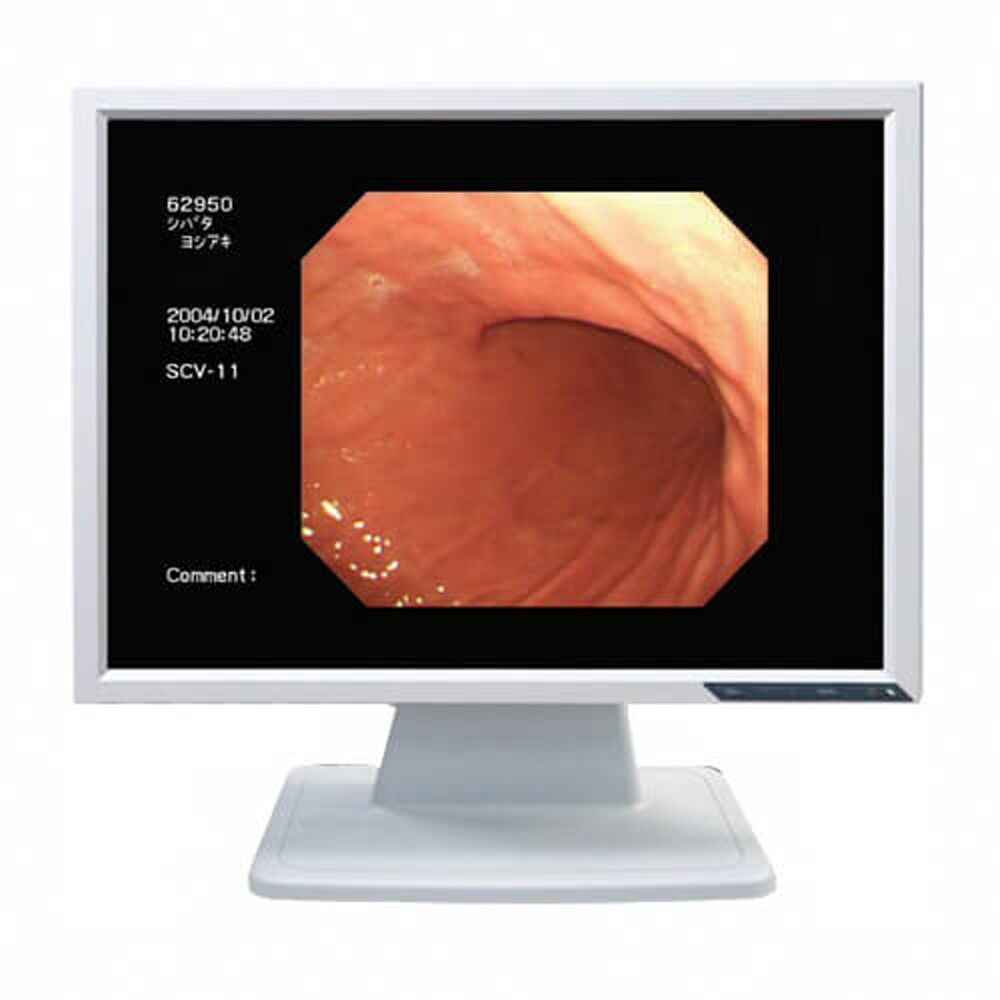

Optik View SF1901 19" Color Surgical Display
PRICE REQUEST
Description
Optik View SF1901 19″ Color Surgical Display
Optik View SF1901 is especially designed for operating room and endoscopy.
All Optikview’s medical displays including the SF1901 have a fanless design that can reduce the accumulation of microscopic bacteria or dust inside the display, to ensure that the operating room is clean and dust- free.
Equipment used in the operating room must meet specific and rigorous health requirements. The front panel of Optikview’s display meets the specification of IPX1 enclosure design and includes anti-reflective protective glass. Not only is it waterproof and dustproof, but it can also be easily cleaned and disinfected, so that the Optikview’s display can work reliably in any medical environment.
Users can fine-tune the color settings to suit their individual perception and personal preference. The red, green, blue, yellow, magenta or cyan colors can be individually adjusted to deliver bright, sharply delineated and highly saturated colors.
All Optikview Color Medical monitors feature the multi-diagnostic mode which allows physicians to make the most precise and accurate diagnoses. The preset modes include: User Mode, DICOM Mode, Blue Light Mode (BL Mode), White Light Mode (CL mode), and Light-Box Mode.
Not only are Optikview’s displays high-performance devices possessing excellent efficiency, they also passed the 60601-1 Medical Safety Standards as well as the relevant Electromagnetic Compatibility (EMC) Standards.
| LCD Type | TFT color (IPS technology) |
| Native Resolution | 1280 x 1024 |
| Pixel Pitch | 0.294 x 0.294mm |
| Active Screen Diagonal | 19 inch |
| Active Screen Area | 376.32 (H) x 301.56 (V) mm |
| Visual Characteristics | |
| Contrast Ratio | 600:1 (max) |
| Brightness | 280 cd/m2(max) |
| Viewing Angle(H/V) | 178/178 (Horizontal/Vertical) |
| Response Time | 14 ms gray to gray |
| Connectivity | |
| Digital Video Input | DVI-A/DVI-D(complying to VESA DVI) |
| Analog/Video Input(Option) | VGA D-sub 15 pin |
| Display Control and Communication | DDC(complying to DDC2Ci standard), EDID |
| Supported Resolution | Up to 1280 x 1024 (Landscape), 1280 x 1024 (Portrait) |
| Display Control | Display on/off, backlight adjustment, OSD |
| OSD Control | |
| Gamma Preset | Native, 1.8, 2.0, 2.2, DICOM, User |
| Color Preset | 6500K, 7500K, 8200K, 9300K, User |
| Controls (OSD) | Yes |
| Power Requirements | |
| Input | AC 100-240V, 50/60Hz, DC 12V, 6A |
| Power Save | Support DPMS<3W |
| Physical Characteristics | |
| Ergonomics | Tilt base , 100mm VESA mounting standard |
| Dimensions(Including Tilt Stand) | 418 x 459 x 200 (mm) |
| Weight | 9.0 (kg) |
| Mount | VESA 100 mm |
| Environmental | |
| Operating Temperature | 0°C to +35°C (32°F to 95°F) |
| Operating Humidity | 30% to 75% |
| Certification | |
| ITE/MED Safety | CB (IEC 60950-1, IEC 60601-1), UL (60950-1, 60601-1), CAN/CSA C22.2 No.601-1 |
| ITE/MED EMC | EN 60601-2, CE, FCC |
| FDA 510 (K) | NO |
| Others | BSMI, CCC, VCCI, CISPR |
| Accessories | |
| Cables | USB, VGA, DVI-D, D-SUB TO DVI-A |
| Calibration Kit | Option |
