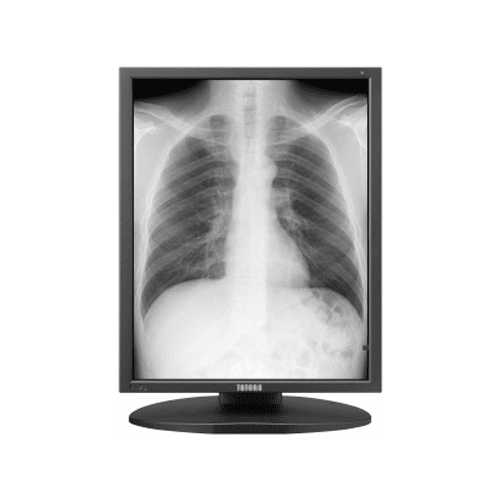

Totoku MS33i2 3MP 20.8" Digital Mammography Display

3MP-based Display for Digital Mammography (with Independent Sub pixel Drive Technology)

Digital mammography viewing demands an extraordinarily high level of precision from your LCD display. Totoku’s MS33i2 redefines new standards of care by over-delivering resolution and clarity for improved accuracy in breast cancer screening.
With integrated Independent Sub pixel Drive technology, the MS33i2 exceeds resolution values of traditional 5 Mega-pixel displays, and due to economies of scale, is more affordable than its 5 megapixel counterpart. Introducing the MS33i2, with Independent Sub pixel Drive technology enables a 3Mega-pixel-based LCD to render 9 mega Sub pixel images, exceeding the current standards of care for primary mammography diagnosis. The MS33i2 has been applied for FDA (510K) clearance for the use of Digital Mammography.

PRICE REQUEST

Description

Totoku MS33i2 3MP 20.8″ Digital Mammography Display

High resolution of 9M Sub pixels realized by Independent Sub pixel Drive15M ISD resolution with a pixel pitch of 55μm technology

Faithful Reproduction of Image Details
While a pixel pitch of 3MP display is 207µm, Totoku MS33i2 achieves 69µm in Sub pixel chain direction by newly developed Independent Sub pixel Drive technology to realize excellent depiction of image details.

Advanced Image Quality with Less Degradation

To display an overall image whose native resolution is higher than the monitor is able to reproduce, the image is converted to a lower resolution image with a certain amount of data loss.
The Totoku MS33i2 with super high resolution offers excellent image reproduction, faithful to the original captured by the modality device with less image degradation.

Independent Sub pixel Drive Technology
Driven each Sub pixel value corresponding to detailed information recorded in an original image, three times resolution enhancement is achieved. (Patent pending) In addition, up to 1276 shades of gray are now simultaneously displayable by the upgraded Independent Sub pixel Drive technology.

*Customized viewer software is required to display images with enhanced resolution by the Independent Sub pixel Drive technology.

Special AR Coating for Film-like Black and Improved SharpnessSpecial AR Coating for Film-like Black and Improved Sharpness

TOTOKU’s new special AR coating technology addresses properties of focus, noise reduction, contrast, and viewing angle achieving film-like black and accurate reproduction of images. (Patent pending)

Luminance stabilizing system λ-Sentinel II

λ-Sentinel II consists of a luminance sensor and luminance control circuit. The luminance sensor, integrated into the front bezel, consistently monitors and accurately stabilizes luminance on the screen by rapidly communicating with the backlight sensor.λ-Sentinel II
In addition, a build-in luminance sensor provided with i2 models enables even simpler calibration without attaching the calibration sensor.

Simultaneous display of 2048 shades of graySimultaneous display of 1276 shades of gray

Totoku MS33i2 combined with a viewer software, 2048 shades of grapy (11 bit) can be simultaneously displayed. It realizes smoother grayscale display required for medical image displays.

*A viewer software that supports TOTOKU’s multi-shade display system is required for 2048 shades of gray simultaneous display.
*1276 shades of gray are simultaneously displayable by the Independent Sub pixel Drive technology.

Remote grayscale check and remote calibration functionsRemote grayscale check and remote calibration functions

Totoku MS33i2 conformance testing to DICOM GSDF and calibration can be remotely accomplished. These features minimize the burden on display administrators.

* Optional PM Medivisor software is required.

Luminance equalizer λ-Uniformity Congruence)Next Generation Interface – DisplayPort

In addition to a DVI port, each i2 series display includes a new digital display interface, “DisplayPort”. When using the DisplayPort, up to 1024 or 10-bit shades of gray are simultaneously displayed. This enables smooth and accurate display of subtle dierences in shades of gray. Additionally, 1073.74million colors (10-bit in each R, G, B) are simultaneously displayed on our color model.

*Customized viewer software and graphics card are required to display 10-bit images.

Luminance equalizer λ-Uniformity Congruence)Luminance equalizer λ-Uniformity Congruence

Totoku MS33i2 is built in to achieve highly accurate luminance uniformity across the screen. Luminance unevenness is minimized in the final tune-up prior to shipping.

* Images shown are for illustrative purposes only.

alibration functionCalibration function

Totoku MS33i2 calibrates luminance and gamma to enable smooth grayscale display that is faithful to DICOM GSDF.

* Optional calibration kit is required.

Hardware pivot function for fast drawing in portrait on landscape orientation

Stress-free operation is made possible by fast drawing speed for on-the-fly change to portrait.

Display ConfigrationsUser-selectable display configurations

Luminance/gamma settings are selectable from three preset levels according to the needs. User-selectable configurations enable stress free operations without specialized settings.

OSD Information DisplayOSD Information Display

With a push of a button, the display’s current status can be checked such as the display model, total operating time, actual measurement of luminance, and calibration settings.

LED indicator to inform of current statusLED indicator to inform of current status

A glance at the Totoku MS33i2 LED indicator tells you the display’s current operating status.

LED indicator to inform of current statusDisplay Quality Control

The Medivisor Series is a series of software to collectively support display quality control from acceptance and periodic constancy testing to constant monitoring, to calibration.

Ecological Technology ? Considering the Global Environment

Ecological Technology  EConsidering the Global Environment

Totoku is committed to providing high performance display systems that are ecological and environmentally friendly. We strive to create green IT initiatives and be a part of building a clean energy future. In eort to achieve this, we have incorporated new power-saving features in our i2 series displays.
Our advanced power saving function dims the backlight as the screensaver activates, thereby reducing power consumption and preventing unnecessary backlight deterioration, resulting in a longer lasting display. Our internal power supply system includes a newly improved power save mode, which allows the display to enter standby mode with less than 2 watts of energy consumption.

*Optional software Calibration Kit is required to set up the Advanced Power Savings feature.

Enhanced convenience with utility software:

Advanced power saving*

The Totoku MS33i2 backlight dims as the screensaver starts, reducing power consumption and preventing unnecessary deterioration of the backlight.

* This feature may not be available, depending on the specifications of the graphics card used.

Gamma check

18 points of luminance values are measured and plotted into a graph.

*Optional software Calibration Kit is required to set up the Advanced Power Savings feature and Gamma check feature.

Pairing service to match colors of two displays (Optional)



Worldwide medical safety standards

Totoku MS33i2 display is certified under various medical safety standards that are much more demanding than those for general-purpose IT equipment.

About Totoku

TOTOKU is a leading worldwide manufacturer of medical image displays and touch panel displays. Its high-end, high-cost-performance medical image displays and touch panels are backed by its unique technology and know-how through decades of solid experience in the industry since 1972.

TOTOKU has supplied computer displays for factories, broadcast stations, workstations, and other applications, and has earned a high marks for its product reliability under harsh conditions and post-installation support, not to mention specialized technologies required for respective fields.

TOTOKU continues to provide high-performance displays for specialized fields by developing leading-edge technologies, while providing consistently optimal customer service.
