Beacon C14S 19-inch 1MP Color Medical Display

  • 19″ 1MP color LED display
  • Backlight Stabilization System
  • Compliant with DICOM Standard
  • QA Software
  • Model: C14S
  • Application: CT, MRI, 3D medical image, X-RAY, DSA, DR

Description

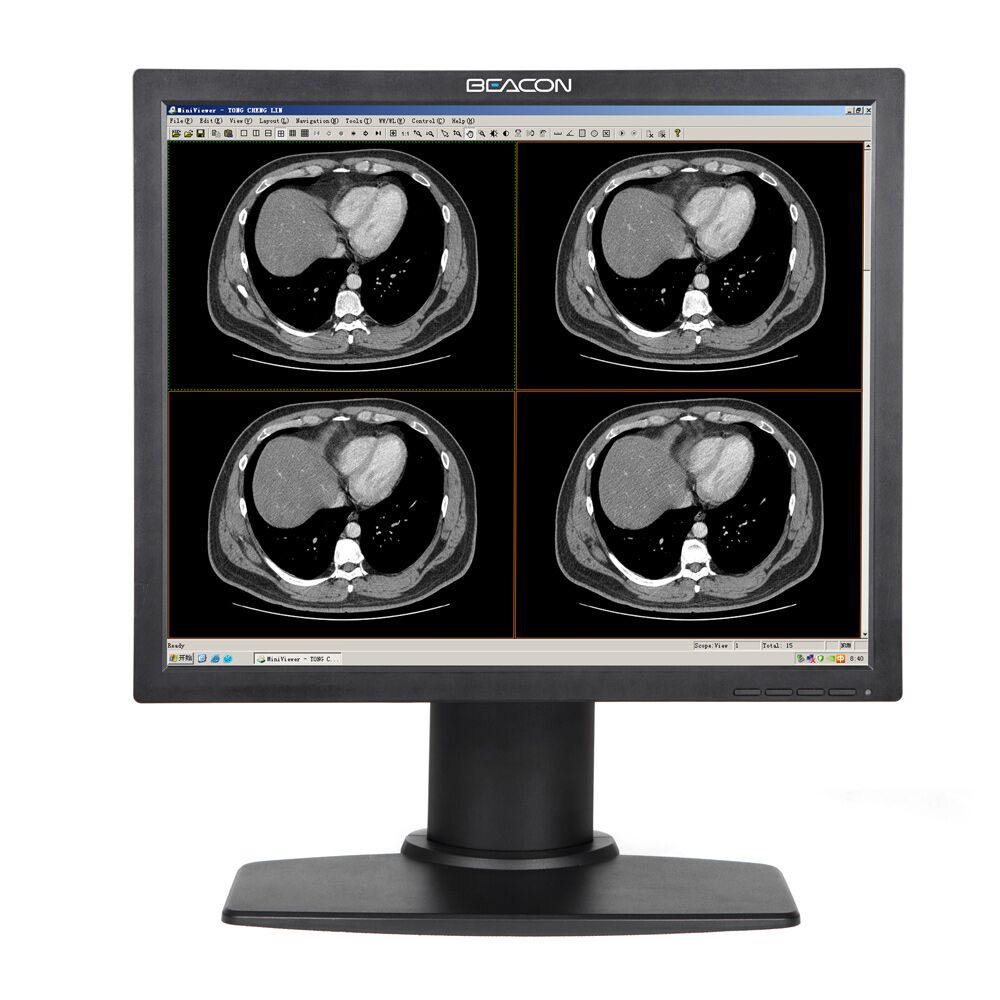

Beacon C14S 19-inch 1MP Color Medical Display

The Beacon C14S is fully compliant with the DICOM standard display performance, full HD resolution, high contrast, true color display, especially for clinicians filmless environment, access to patient information, electronic medical records and also browse a variety of medical images. Easy to use, improve work efficiency. The latest full-flat design, good protection performance, easy to clean and disinfect, improve the display durability.

Model: C14S
Beacon Support

Hiliex proudly presents Beacon medical displays expertly designed for healthcare professionals seeking precision and reliability. high-resolution Beacon radiology displays ensure accurate diagnostic imaging, while the specialized Beacon surgical displays are optimized for the demands of the operating room. This comprehensive range caters to the diverse needs of modern medical environments, enhancing both efficiency and patient care. Additionally, our dedicated service and repair center ensures expert maintenance and repairs for all advanced medical imaging monitors, guaranteeing your equipment remains in peak condition for optimal patient care.

Shenzhen Beacon Display Technology Co., Ltd. is a national high-tech enterprise dedicate to medical display technology innovation and application, which provides professional solutions for medical imaging application including transmission, management, display & human machine interface. It is the subsidiary of Zhejiang Jingxin Pharmaceutical Co., Ltd. (stock code 002020).

Beacon has been widely recognized by the market. Many world-class medical imaging equipment manufacturers have chosen Beacon as the strategic OEM partners such as GE, Philips, Siemens, Hitachi, Canon, United Imaging, Mindray, Sonoscape etc. For standard off the shelf medical displays Beacon currently holds about 50% market share in the domestic market, more than 8000 hospitals are using Beacon’s product right now. These products are exported to about 100 countries worldwide.

Specifications

Model C14S
Display size 19″
Display technology IPS
Support color 16.7 Million
Resolution 1280 x 1024
Pixel pitch 0.294 x 0.294 mm
Brightness 330 cd/m² Typ.
Calibration brightness 190 cd/m² Typ.
Contrast 1000:1 Typ.
Viewing angle 178° Typ.
Response time Tr : 15ms Typ. Tf : 15ms Typ.
Input signal interface DisplayPort: 20 pin
DVI-D: 24 pin
VGA: D-Sub 15 pin
Output signal interface N/A
Dimension 417 (W) x 417-497 (H) x 235 (D) mm
Net weight 7.4kg
Stand mounting VESA 100 x 100
Power supply AC 100-240V
Power consumption 60W MAX
Power saving EPA, VESA
MTBF > 50,000 h
Protection rating IP20
Certification CE (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA C22.2 No. 60601-1, IEC60601-1, FCC-B, CCC, BIS, RoHS, China RoHS

Additional information

Weight 16.3142 lbs
Manufacturer

Beacon

Model

C14S
