JVC CL-R813 32″ 8MP Color Diagnostic Display

  • 8MP (3840 x 2160) for multi-modality diagnosis
  • Auto Calibration (built-in front sensor)
  • Uniformity Equalizer
  • Integrated QA Solution
  • Built-in Sensor
  • Space Saving
  • Wire Management / DisplayPort Daisy Chains
SKU: CL-R813 Categories: , , , ,

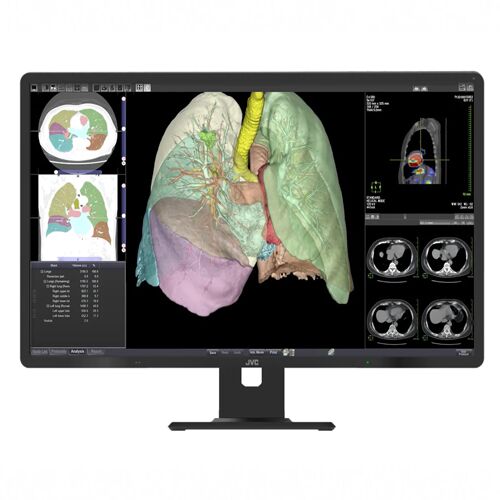

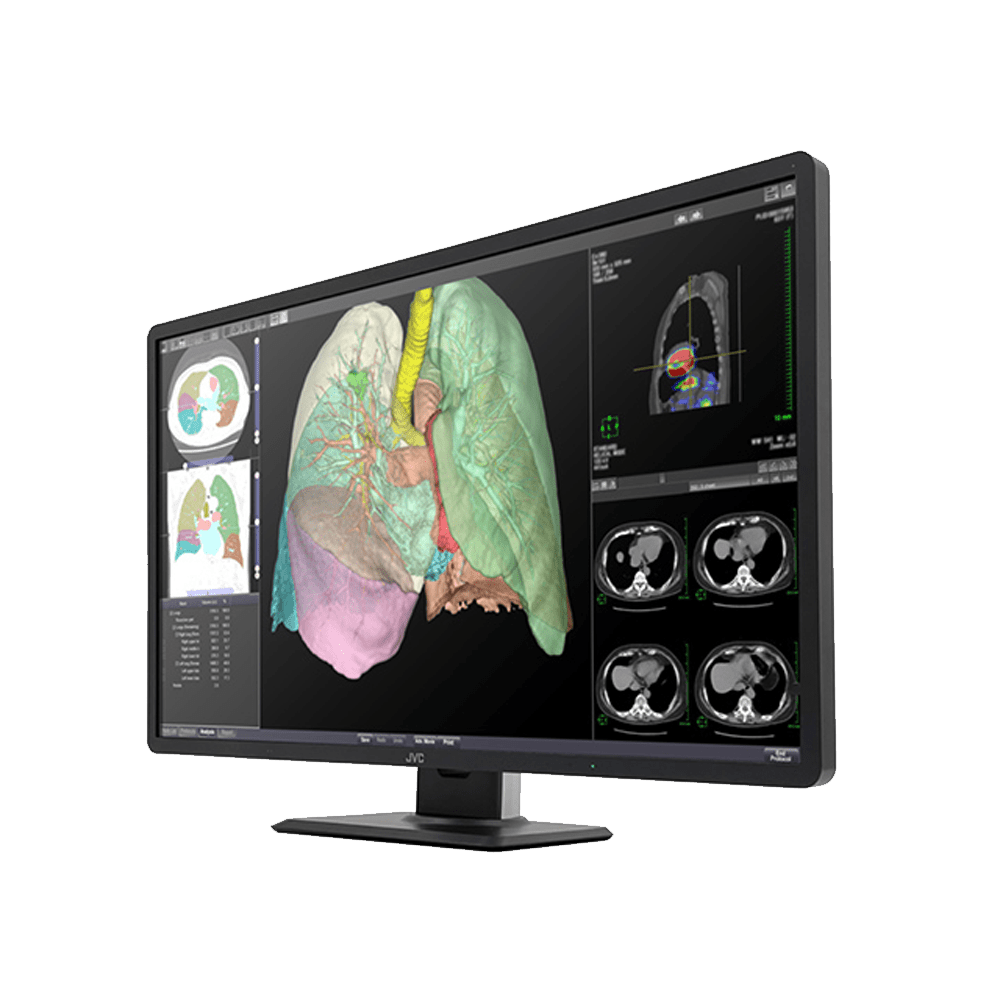

JVC CL-R813 32″ 8MP Color Diagnostic Display

The JVC CL-R813 8MP for multi-modality diagnosis

The seamless JVC CL-R813 screen with a wide area of 32 inches and a high resolution of 8 megapixels reduces the load of eye movement and provides a comfortable diagnostic imaging environment. Various images such as DR, CT, MRI, and pathology can be displayed and it is free to arrange the layout of windows, significantly improving image reading efficiency.

Uniformity Equalizer
Luminance and color uniformity correction system produces stable images across the screen, keeping perfect reproduction even after long-term use.

Integrated QA Solution
Managing the daily operation of the Radiology department is now more simplified with QA Medivisor Agent’s calibration and QA standard testing capabilities, combined into an intuitive and easy-to-navigate user interface. This includes QA Medivisor Agent LE, a simplified calibration scheduling tool.
*Optional calibration kit CAL-016 is required for standard QA testing.

Built-in Sensor
The JVC CL-R813 includes several front sensors to efficiently adjust your monitor to fit any reading environment. An ambient light sensor offsets the effects of ambient light to ensure optimal calibration, a color front sensor stabilizes luminance and color for consistent image quality, and the human presence sensor automatically switches to power save mode when you’re away.

Space Saving
The JVC CL-R813 32-inch color LCD delivers a wide viewing area, which enables effectively allocate multiple images you need to work on.

Wire Management / DisplayPort Daisy Chains
With DisplayPort 1.2, the use of daisy chains allows for easier wiring connections.

About JVC-Kenwood

JVC-Kenwood is a leading worldwide manufacturer of medical image displays and touch panel displays. Its high-end, high-cost-performance medical image displays and touch panels are backed by its unique technology and know-how through decades of solid experience in the industry since 1972.

JVC-Kenwood has supplied computer displays for factories, broadcast stations, workstations, and other applications, and has earned a high marks for its product reliability under harsh conditions and post-installation support, not to mention specialized technologies required for respective fields.

JVC-Kenwood continues to provide high-performance displays for specialized fields by developing leading-edge technologies, while providing consistently optimal customer service.

Warning: call_user_func() expects parameter 1 to be a valid callback, function 'download_file_force' not found or invalid function name in /home/hiliex.com/public_html/wp-content/plugins/woocommerce/templates/single-product/tabs/tabs.php on line 47


LCD Panel
32-inch, color, TFT, IPS technology
Display Area
708.48 mm x 398.52 mm
Pixel Pitch
0.1845 mm x 0.1845 mm
Contrast Ratio
1000:1 (typ.)
Maximum Luminance
500 cd/m² (typ.)
350 cd/m² (calibrated)
Viewing Angle
178° vertical and horizontal
Visual Performance
Native Resolution
3840 x 2160
Display Colors
16.77 million colors
1.07 billion colors with DisplayPort and 10-bit viewer
Input Signal
DVI-D x 1
DisplayPort (DisplayPort 1.2) x 2
Output Signal
DisplayPort (DisplayPort 1.2) x 1
Plug and Play
DDC2B compliant
Input Power Supply
Input Power Supply
100V – 240 V 50/60 Hz
Calibration Control
Luminance, Gamma, Color temperature, Capable of storing 3 sets of LUT (Optional Calibration Kit is required)
OSD Information Display
Model name, Serial No., Total operating time
USB Rev.2 compliant, Self-powered
USB upstream connector (x1), USB downstream connector (x3)
Other Features
Uniformity Equalizer, LED indicator, Advanced power management, Human Presence SensorLuminance stabilization, Multiple LUT
Approvals*Please contact JVC for latest information.
ANSI/AAMI ES60601-1 (2005) + A1 (2012), CAN/CSA-C22.2 No. 60601-1 (2014), CE (EN60601-1, EN60601-1-2), FCC Part15 subpart B Class B, ICES-003-B, VCCI-B, FDA510(k), J-Moss, RoHS, RCM
Physical Characteristics
Dimensions(W x H x D)
742 mm x 487.5~582.5 mm x 196.5 mm
approx. 10 kg
Tilt Stand
Tilt, Swivel
VESA standard (100 mm x 100 mm)
Power cord, DVI cable, DisplayPort cable, USB cable, Instruction manual, Software (QA Medivisor Agent LE)
