NEC MD210C2 21.3” Color 2MP Medical Diagnostic Display with LED Backlighting (FDA 510(k) approved)

  • NEC’s UA-SFT 2MP (1600 x 1200) liquid crystal technology offers high brightness without compromising contrast or viewing angles, making the image quality outstanding for color or grayscale images
  • Each NEC MultiSync MD21C2 monitor comes calibrated out of the box to the DICOM grayscale display function for luminance
  • ColorComp™ digital uniformity correction reduces screen uniformity errors and compensates for differences in color/grayscale and luminance across the entire screen
  • Integrated tri-stimulus (three-color) sensor receives more light information than standard (brightness only) sensors and, therefore, is extremely accurate and stable
  • 14-bit RGB lookup tables (LUTs) for gamma provide for more finely detailed, high-definition rendering of color images and crisper display of even the most delicate shadings and color differences
  • LED backlight reduces startup time and lowers total power consumption
  • Human sensor saves power by turning off backlight when the display is not in use
  • GammaCompMD QA software, included with each display, ensures consistent image quality and conformance to the DICOM standard
  • FDA 510(k) cleared
PRICE REQUEST

Description

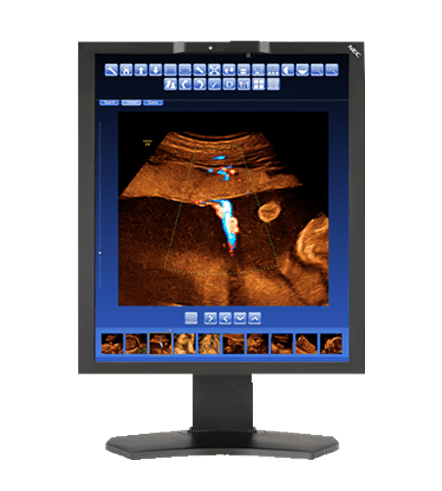

NEC MD210C2 21.3” Color 2-Megapixel Medical Diagnostic Display with LED Backlighting (FDA 510(k) approved)

Affordable diagnostic color. Designed to meet the demanding needs of healthcare facilities requiring consistent and accurate medical imaging using Picture Archiving and Communication System (PACS). The LED-backlit NEC MD210C2, a 21.3″ 2MP color monitor, features factory calibration to the DICOM standard for luminance. This 4:3 aspect ratio NEC MD210C2, which maintains a designated calibrated brightness, also includes a human sensor that reduces power consumption when a user is not present. The all-digital connectors, including DisplayPort and two-port USB hub, enable advanced connectivity for any type of workstation.
The NEC MD210C2 display is one of the best 2MP color diagnostic displays on the market. The quality and design of the display is on par with today’s technologies. The NEC MD210C2 is also backed with a 5 year warranty to give you a piece of mind in terms of quality and functionality of the product. Give us a call to discuss your requirements and so we can also offer you the best solution to your needs.


About NEC Display Solutions

A wholly-owned subsidiary of NEC Corporation, NEC offers a broad selection of desktops, large-screen displays, and multimedia and digital cinema projectors, coupled with expertise in hardware/software consulting, financing, system configuration, maintenance and service/support. The result is a customized, technology-rich deployment optimized specifically to meet your company’s unique needs.
Our business is driven by innovation, advanced technologies, industry-leading service and value-add programs that help increase your productivity and let you see your digital world in a more dynamic way.


Display
Viewable Image Size 21.3"
ColorType Color
MegaPixels 2MP
Native Resolution 1600 x 1200
Pixel Pitch 0.27mm
Pixels Per Inch 94@ native resolution
Brightness (typical) 400 cd/m2 calibrated / 760 cd/m2 max
Contrast Ratio (typical) 1400:1
Viewing Angle 176° Vert., 176° Hor. (88U/88D/88L/88R) @ CR>10
Response Time 20ms
Lookup Table 14-bit
Displayable Colors 16.8 million colors out of a 68 billion color palette (8-bit) / 1.074 billion colors out of a 4.398 trillion color palette (10-bit) / 16,384 levels of grayscale
Sensors
Tri-stimulus front
Synchronization Range
Horizontal (Analog/Digital) 31.5-74.54 /99.4kHz
Vertical 50-85 Hz
Connectivity
Input/Output Terminals
Digital DVI-D, DisplayPort, USB hub (1 up/2 down)
Power Consumption (typical)
On 80W
Power Savings Mode 2W
Physical Specifications
Dimensions (WxHxD)
Net (with stand) 14.7 x 19.3-23.4 x 9.3 in. / 373.4 x 490.6_593.4 x 235.5
Net (without stand) 18.6 x 14.7 x 4.1 in. / 473.0 x 373.4 x 104.1mm
Weight
Net Weight (with stand) 26 lbs. / 11.8 kg
Net Weight (without stand) 17 lbs. / 7.8 kg
VESA Hole Configuration Specifications
100 x 100mm
Environmental Conditions
Operating Temperature 41-95°F / 5-35°C
Operating Humidity 20-80%
Operating Altitude 10,000 ft. / 3048m
Storage Temperature 14-140°F / -10-60°C
Storage Humidity 10-85%
Storage Altitude 40,000 ft. / 12,192m
Safety Standards
  • UL60950-1 & UL60601-1
  • PSB
  • SASO
  • CCC
  • Gost/PCT
  • CE-MDD
  • NOM
  • TUV GM
  • FCC CLASS B/CANADIAN DOC
  • C-tick
  • FDA 510(k)
  • VCCI (class2)
  • ISO9241-307
  • RoHS(EU)
  • AAPM-TG18 (US)
  • SB50 (US California)
  • WEEE(EU)
  • DIN V 6868-57 (Germany) CatB
  • JESRA-X0093
Limited Warranty (parts & labor, including backlight)
5 years with Advanced Overnight Exchange, backlight limited to 18000 hours at 400 cd/m2 and native white point
Additional Features
  • DICOM GSDF calibrated
  • Digital Uniformity Correction
  • GammaComp MD QA software
  • Digital CableComp
  • Pivot
  • Tilt
  • Swivel
  • Rotate
  • Height-adjustable stand
Ships With
  • Power cord
  • DVI cable (Single Link)
  • DisplayPort cable
  • USB cable
  • Warranty sheet
  • CD-ROM (GammaCompMD QA software)
  • User Manual
Accessories
Optional
  • Nvidia Quadro 2000D dual PCIe video card (MDN-Q2000D)
  • AMD V5800 dual DVI PCIe video card (MDA-V5800D)
  • Matrox Xenia Pro triple-head video card (MDM-XENPRO)
  • Color calibration sensor (MDSVSENSOR2)
  • Hood (HDPA30-2)
