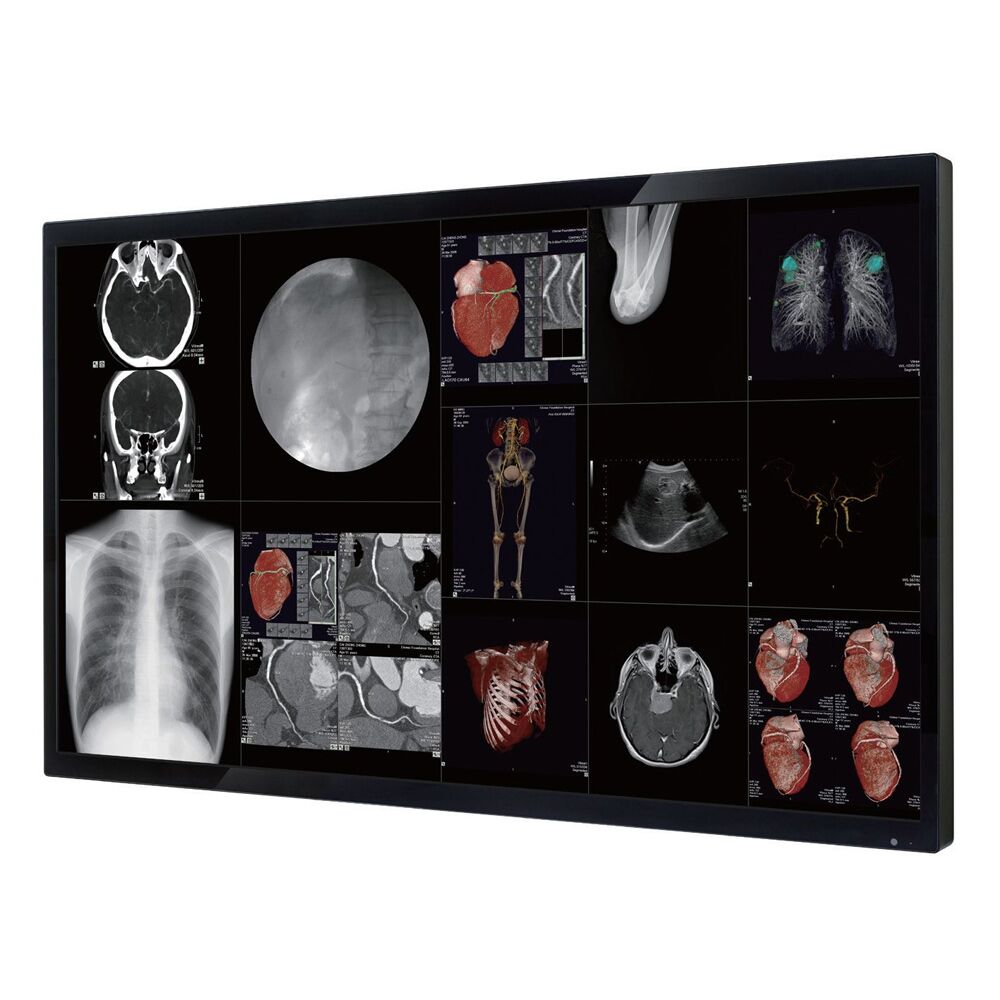

Optik View DC5821 58inch 4K Cath Lab Surgical Display Monitor

  • 4K/8MP (3840×2160)Resolution
  • 700 cd/m2 Brightness
  • Double-Sided AR Impact Protection
  • Expanded Color LUT
  • UL/EN 60601-1 & International Certifications
  • Ingress Protection & Disinfection
  • Universal Connectivity
  • Auto Fan Function
  • Internal 5V DC
SKU: DC5821 Categories: , , ,


Optik View DC5821 58inch 8MP Cath Lab Surgical Display Monitor

Optik View DC5821 58” 4K Surgical Cath Lab Display is the ideal choice for progressive surgical environments desiring flexible table-side viewing of multiple sources in their native resolution. When combined with the Multi-Display Manager (MDM), the DC5821 improves workflow and ergonomics within the Hybrid OR, EP Lab, and Interventional Suites. Designed to enhance procedure guidance and ergonomics during minimally invasive procedures, this 8MP LED display delivers vivid, precise, and consistently uniform video through. Configured with industry-leading Surgical Ready features, the  DC5821 is designed for the most demanding medical environments and table-side use. The combination of the  DC5821 and MDM supports user-preferred multi-image layouts.

About Optik View


Type TFT color, active matrix
Resolution 3840 (H) x 2160 (V)
Active Screen Size (inch) 58
Display Area (mm) 1270.08 (H) x 721.44 (V)
Pixel Pitch (mm) 0.33075 (H) x 0.334 (V)
Viewing Angle (degree) 178 (H) / 178 (V)
Response time (time) 9.5 GTG (typ.)
Brightness (cd/m2) 700 (typ.)
Contrast Ratio 4000:1 (typ.)
Color Gamut NTSC 72%
Display Colors 10 (DP) / 8 (DVI)
